| BRAND | Valco |
| Product | 00.0002.3770 |
| Description | Magnetic float switch |
| Internal code | IMP583631 |
| Weight | 1 |
| Custom code | 90261029 |
| Technical specification | Level Control - Contacts No. 5 Mod. M5.B20.3.0850.O.25GO.W2L1.I22222.830.630.530.240.190 Type B20 float - Spansil material, butadiene copolymer acrylonitrile Brass rod 1" Gas-M connection - brass material Seal material: NBR Max working pressure 20 bar Max working temperature 105°C Total length L0 = 850 mm. Intervention rates in mm and contact situation in the absence of level: L1 = 830 = Contact type = NC L2 = 630 = Contact type = NC L3 = 530 = Contact type = NC L4 = 240 = Contact type = NC L5 = 180 = Contact type = NC Contact wiring = separate Max electrical load: Type 3 contact = 300VCA/70VA/0.5A - 350Vcc/50W/0.7A Electrical output type W2 Die-cast aluminum case with epoxy coating ½” Gas-F cable entry Degree of protection IP65 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Valco - 00.0002.3770 Magnetic float switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

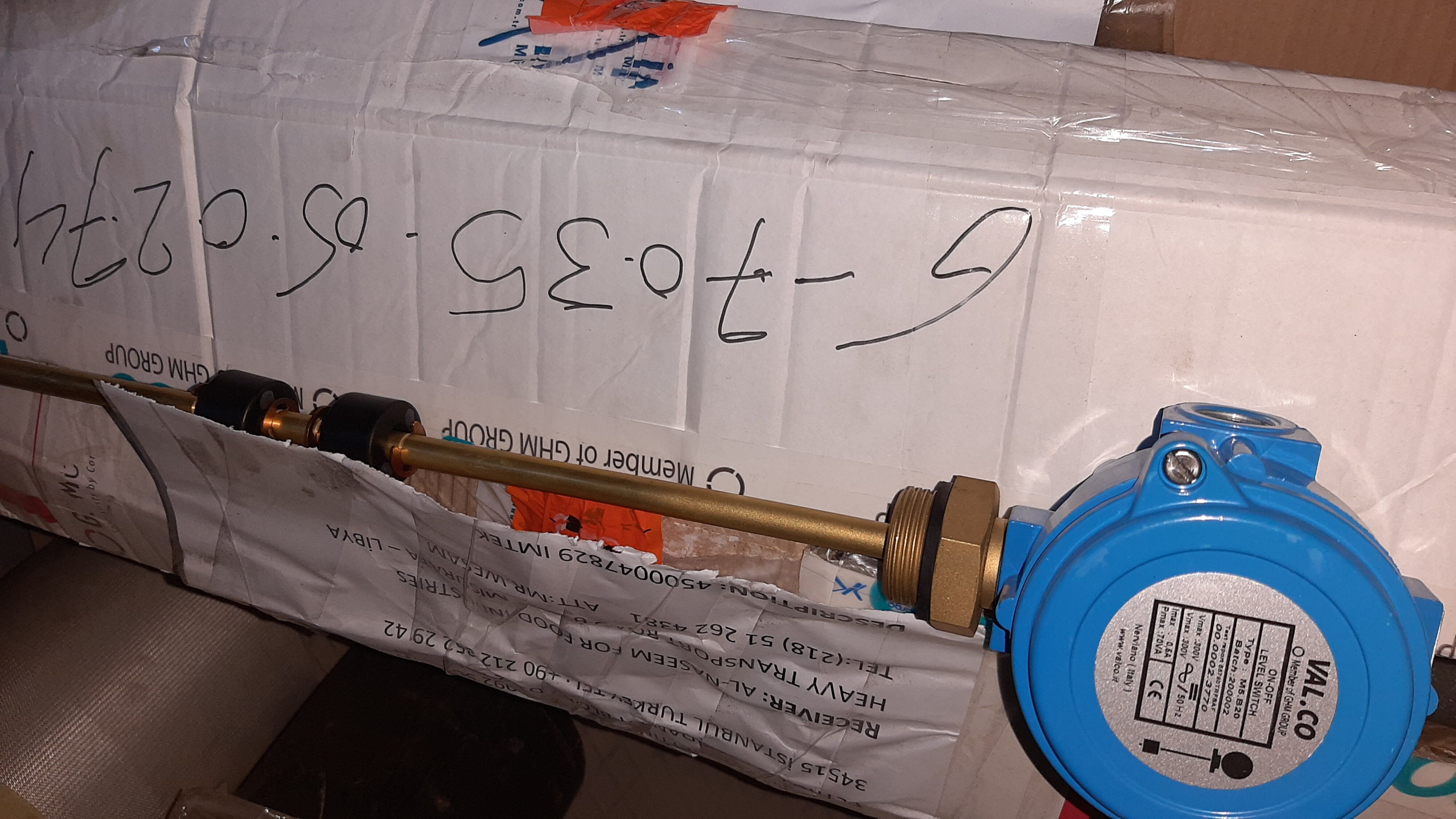

6-70-35-05-02-74.jpg | |
|
|

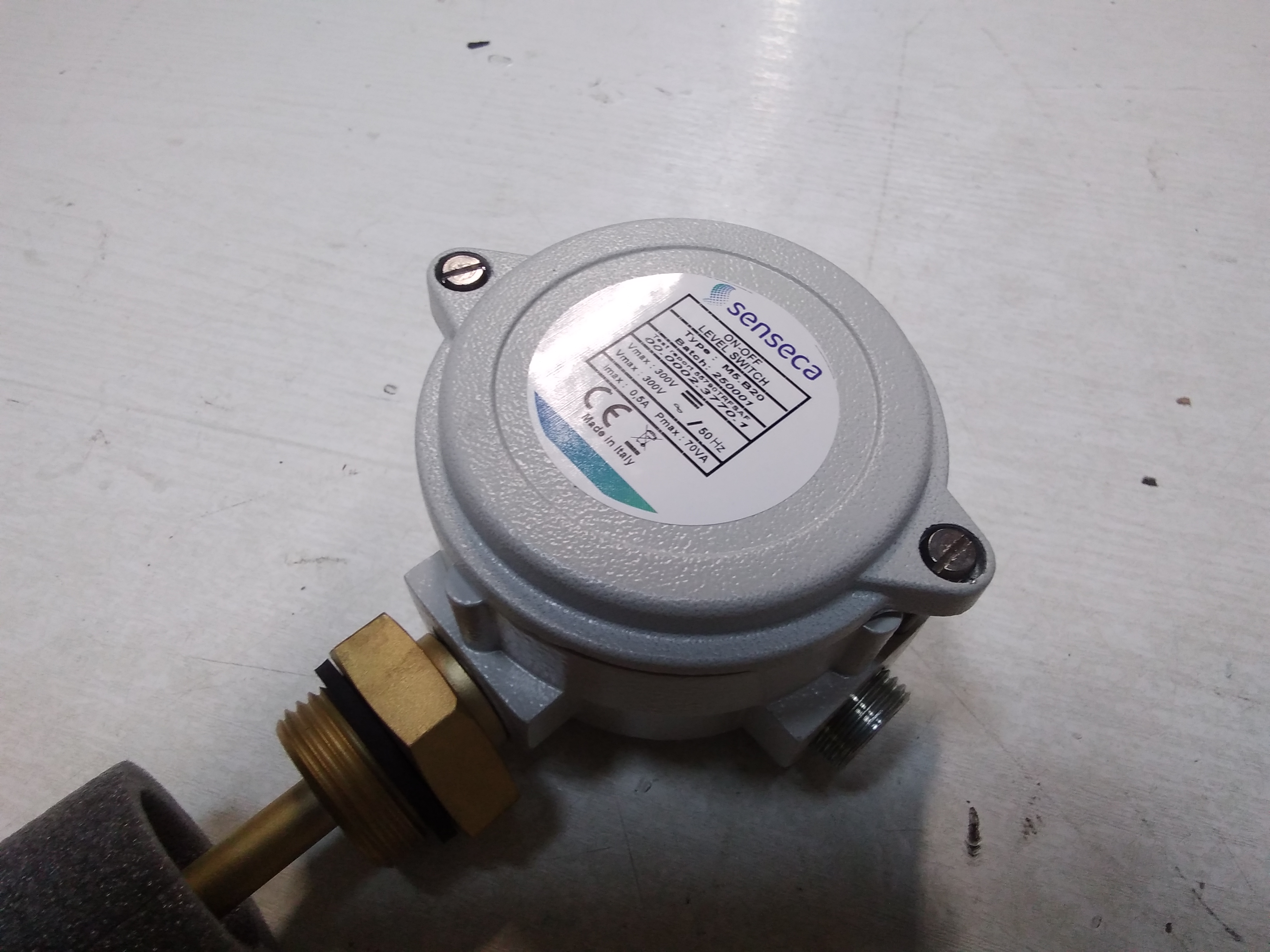

IMG_20250214_135918_2.jpg |
