| BRAND | Fairchild |
| Product | 10244 |
| Description | Model 10 Pneumatic Precision Regulator |
| Internal code | IMP4816447 |
| Weight | 0.617 |
| Technical specification | Accuracy: 0.10 psi Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C) Base Model: 10244 Body Material: Aluminum Connection Size: 1/2 in. NPT Elastomer: Nitrile on Dacron Exhaust Capacity: 5.5 SCFM [9.36m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint Exhaust Type: Straight (standard) Flow Capacity: 40 SCFM (68 M³/HR) Mounting: Wall (09921 Bracket Available) Operator: Knob (standard) 1-7/8 in. O.D. Options: None Pipe Size: 1/2 FNPT Pressure Range: 1 to 160 psig Product Type: Precision Pressure Regulators Sensitivity: 1/8 in. W.C. Supply Pressure: 500 psi Trim: Zinc-Plated Steel Brass Product Category: Regulators |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Fairchild - 10244 Model 10 Pneumatic Precision Regulator number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
Fairchild 10244.jpg | |
|
|

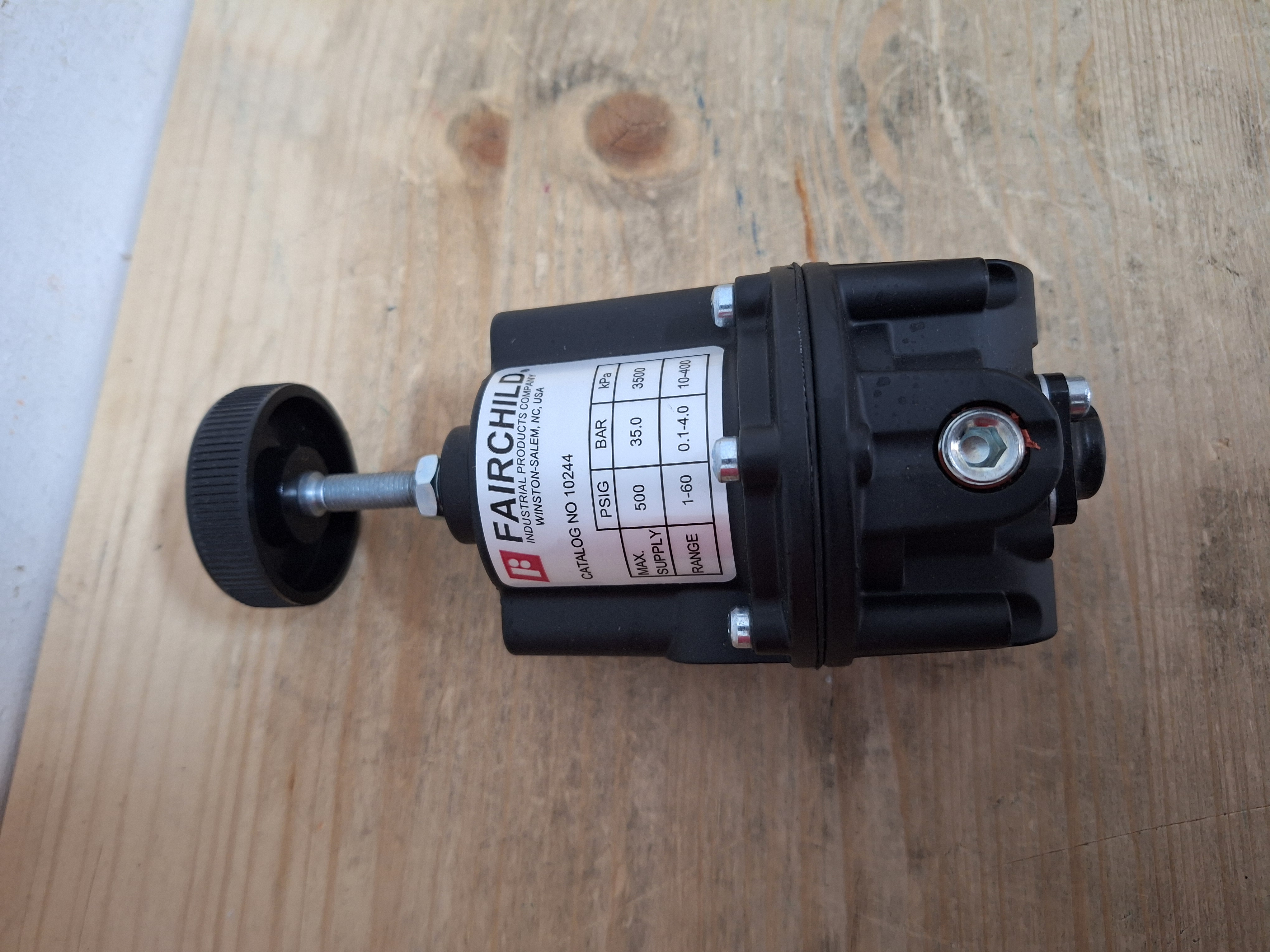

20241203_132149.jpg |
