| BRAND | Badger Meter |
| Product | 106657 |
| Description | Oval wheel meter |
| Internal code | IMP5069395 |
| Weight | 1.5 |
| Custom code | 90282000 |

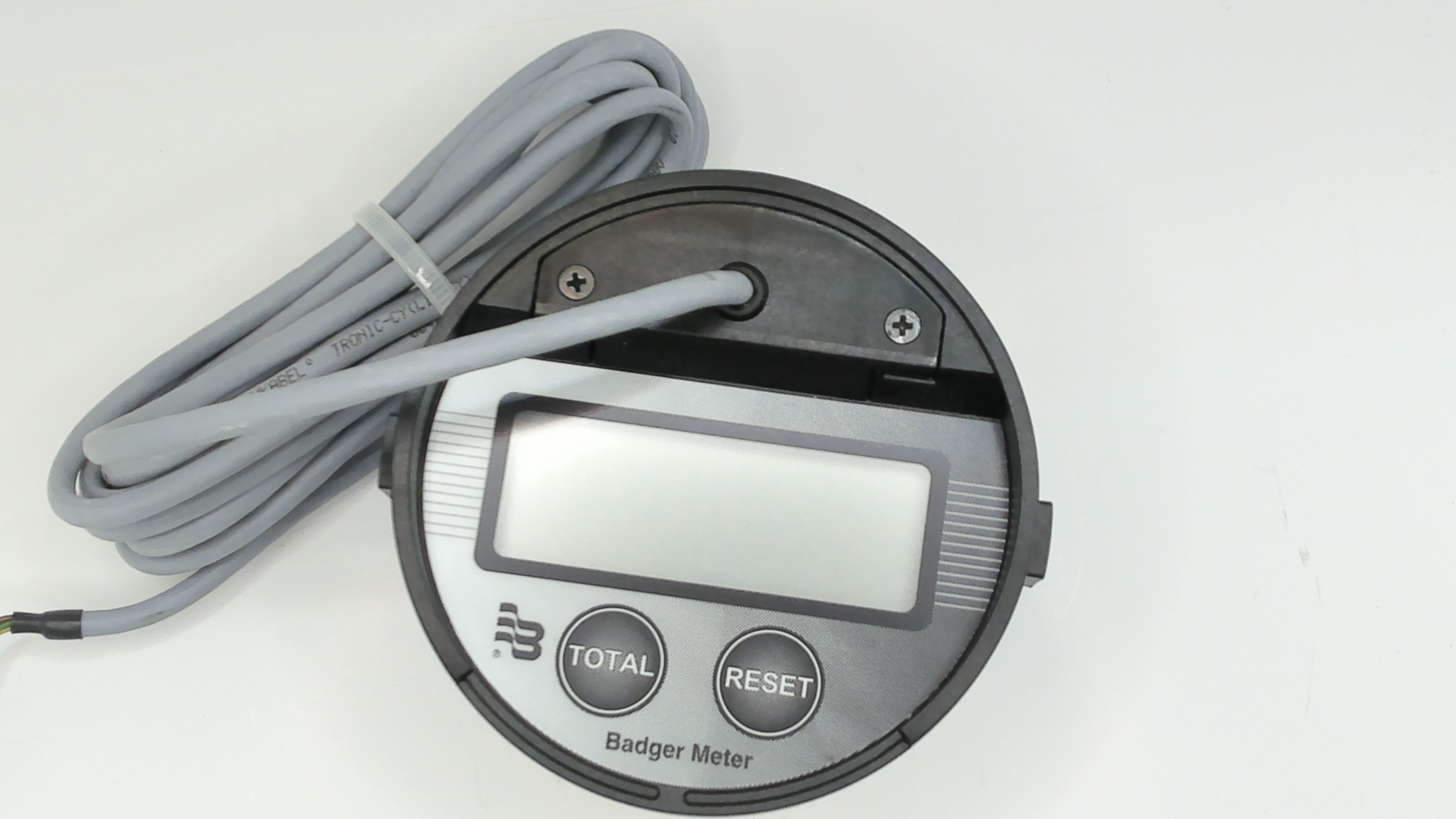

| Technical specification | LM OG 1/2" 1.4305 LCP Viton with pulse output ILR 750 display with input and current output Oval gear meter type OG-i stainless steel with ILR 750 registries Materials and technical data: Measurement principle: oval wheel counter Case: stainless steel 1.4305 Oval wheels: plastic (LCP) O-ring: Viton Measurement range: 0.5 - 35 l/min Viscosity range: 1-2000 mPas p-max: 100 bar t-max: -20 - +70°C Installation length: approx. 82 mm Connection: internal thread R 1/2" ILR 750 electronic counter Display 1: programmable flow indicator, Format xxxx.x, in liters/min (QT, PT, GAL) /min OR resettable totalizer Format xxx.xxx decimal place is used in case of overflow shifted xxxx.xx; xxxxx.x; xxxxxx Display 2: Non-resettable totalizer 11-digit and resettable 5-digit totalizer Linearization: optional 9-point linearization Memory display: EEPROM, data retention at battery replacement Units: liters, gallons, pints, quarts (time unit in x/min.) Temperature: 0-80°C Pulse output: Scalable pulse output 0.01-999.99 freely programmable Current output: 4-20mA output free programmable Correction factor: 0.5000-2.0000 power supply: 3 VDC lithium 2/3 AA, 3.0 Protection class: IP67 Voltage supply: 8-24 VDC |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Badger Meter - 106657 Oval wheel meter number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
