| BRAND | Bd Sensors |
| Product | 110-LS03-E-3-850-400-1-000 |
| Description | Pressure transmitter |
| Internal code | IMP4017377 |
| Weight | 0.2 |
| Custom code | 90262020 |
| Technical specification | Pressure transmitter DMP 331 Device type: DX19-DMP 331 Measured variable: relative Code input: 0 ... 2.5 MPa Supply: 10 ... 28 V DC Accuracy: 0.35% FSO IEC Electrical connection: Compact field housing Supply +: IN + Supply -: IN - Shield: Grounding Degree of protection: IP67 Mechanical connection: G1 / 4 "EN 837 seal: FKM Special version: Standard ATEX: IBExU10ATEX1068 X Ex-version: II 1G Ex ia IIC T4 Ga Ex-version zone 20: II 1D Ex ia IIIC T135 ° C Da Ui: 28 VDC Ii: 93 mA Pi: 660 mW Ci: 0 nF Li: 0 µH C GND: 27 nF Number CE: 0637 IEC: IECEx IBE 12.0027X Ex-version (IEC): Ex ia IIC T4 Ga Ex-version Zone 20 (IEC): Ex ia IIIC T85 ° C Da Nameplate: BDS GmbH Nameplate - Position: Standard Electrical output: 4 ... 20 mA / 2-wire with explosion protection (Ex ia) Designation: Please note safety-relevant data the Ex version in the data sheet, operating instructions and type examination certificate |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bd Sensors - 110-LS03-E-3-850-400-1-000 Pressure transmitter number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

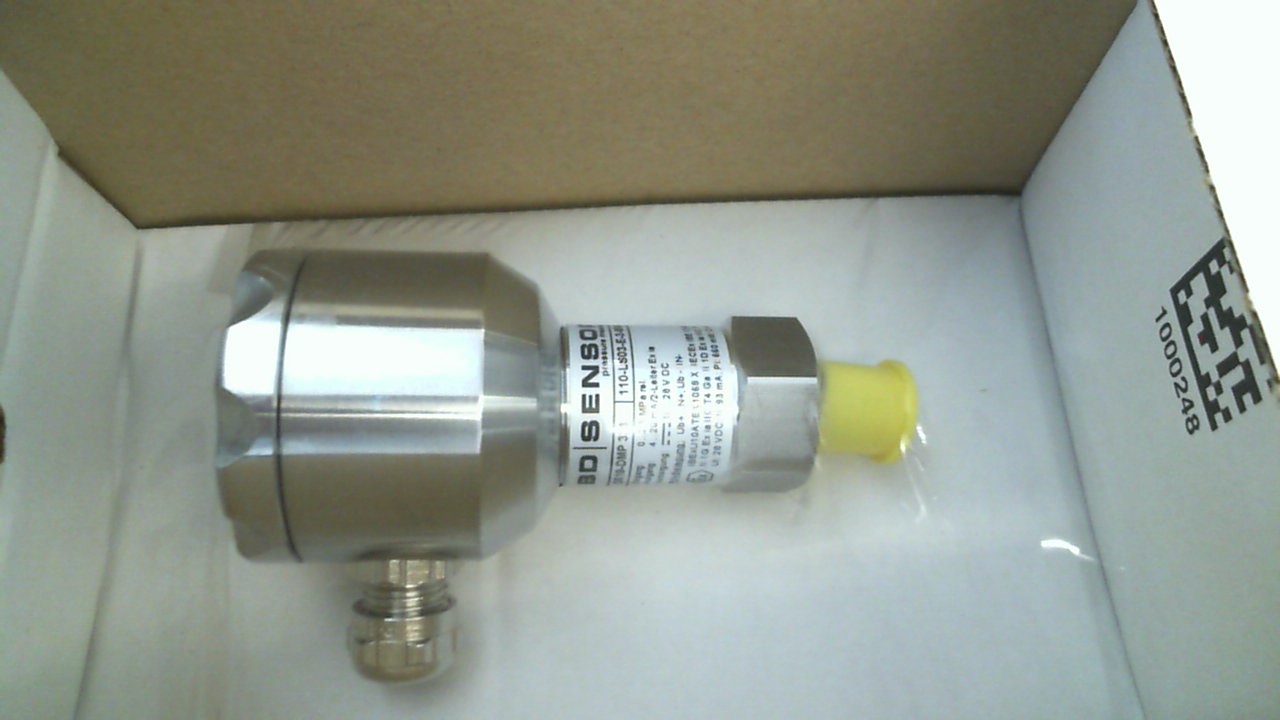

WIN_20201009_13_40_03_Pro.jpg | |
|
|

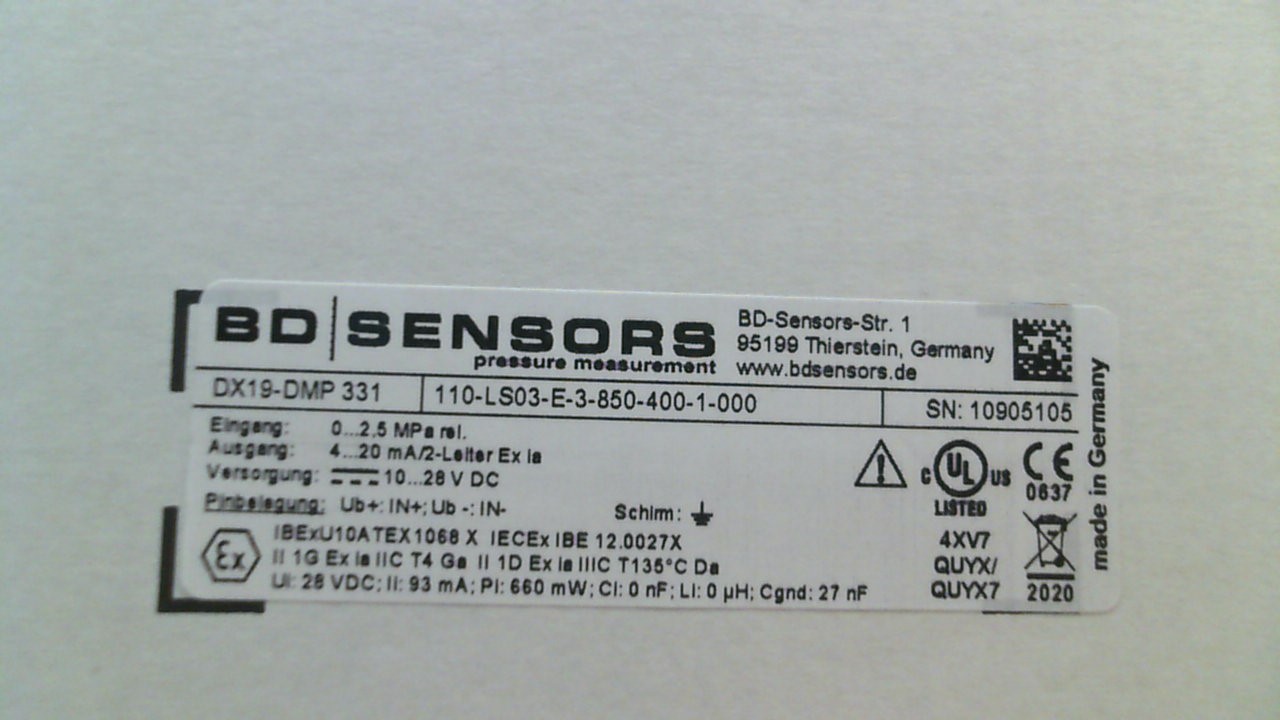

WIN_20201009_13_40_19_Pro.jpg |
