| BRAND | S+S REGELTECHNIK |

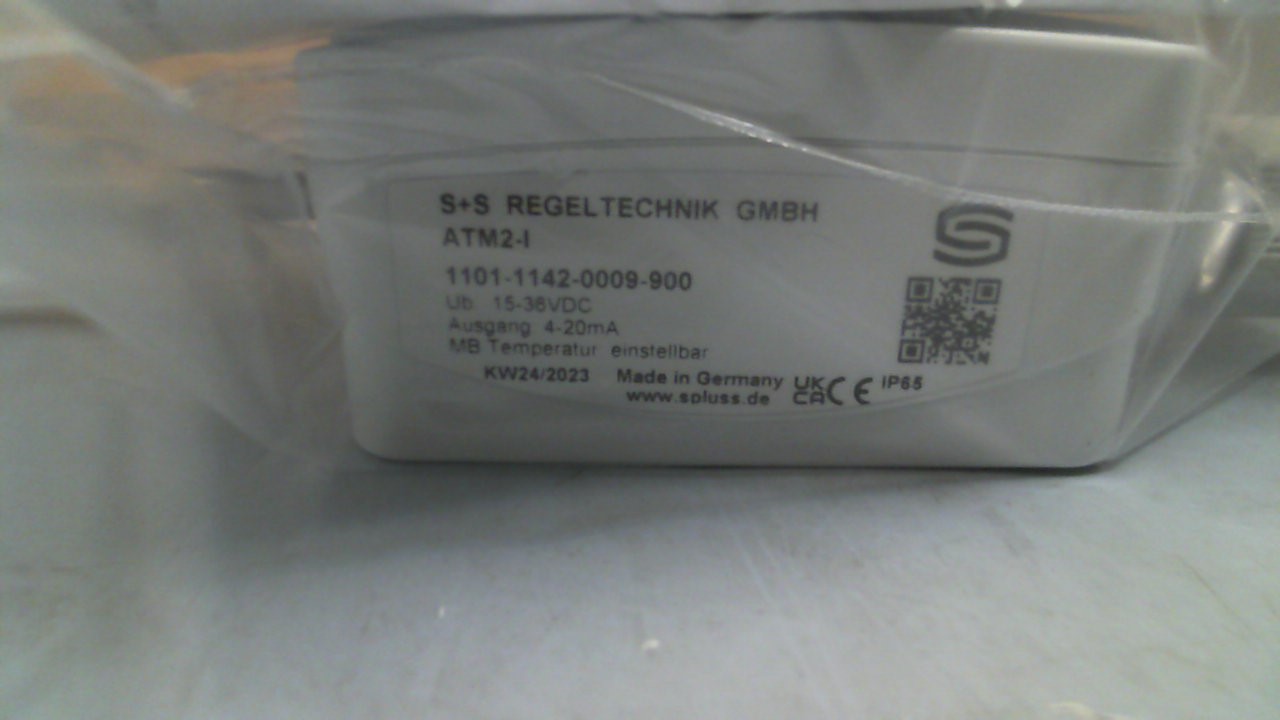

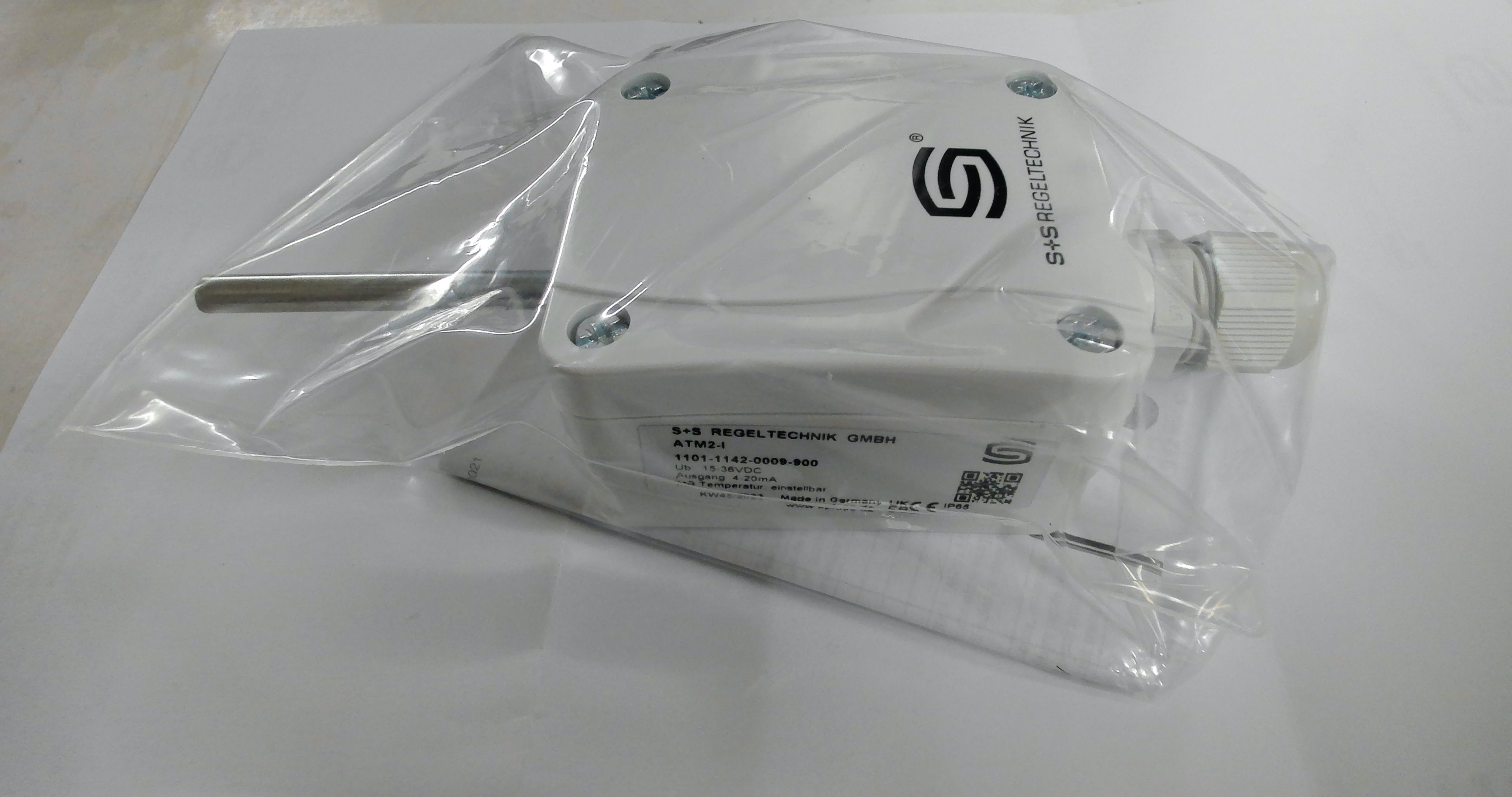

| Product | 1101-1142-0009-900 / ATM2-I |
| Description | Outside temperature transmitter |
| Internal code | IMP3776949 |
| Weight | 0.156 |
| Custom code | 90251900 |
| Technical specification | Power consumption < 1,0 W/ 24 V DC < 2,2 VA/ 24 V AC Voltage supply 15...36 V DC depending on working resistance, residual ripple stabilised ± 0.3 V Temperature deviation typically ± 0.2 K at +25 °C Working resistance Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant Sensor Pt1000, DIN EN 60751, class B (Perfect Sensor Protection) Connection type 2- or 3-wire connection Ambient temperature Measuring transducer –30...+70 °C Process connection by screws Protective tube stainless steel V4A (1.4571), Ø 6 mm, NL = 65 mm Electrical connection 0.14 - 1.5 mm² via terminal screws Cable gland M 16 x 1.5, including strain relief, exchangeable, max. inner diameter 10.4 mm Permissible air humidity < 95 % RH, non-precipitating air Protection class III (according to EN 60 730) Output 4...20 mA Measuring ranges multi-range switching with 8 switchable measuring ranges, see table (other ranges optional) operating range –30...+70 °C with manual zero point correction (± 10 K) Cable connection cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or M12 connector according to DIN EN 61076-2-101 (optional on request) Housing plastic, UV-stabilised, material polyamide, 30 % glass-globe reinforced, with quick-locking screws (slotted/ Phillips head - combination), colour traffic white (similar to RAL 9016) Housing dimensions 72 x 64 x 37,8 mm (Tyr 1) Protection type IP 65 (according to EN 60 529) Housing tested, TÜV SÜD, Report No.713139052 (Tyr 1) Standards CE conformity, electromagnetic compatibility according to EN 61326, according to EMC Directive 2014/ 30/ EU |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for S+S REGELTECHNIK - 1101-1142-0009-900 / ATM2-I Outside temperature transmitter number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
