| BRAND | Amo |

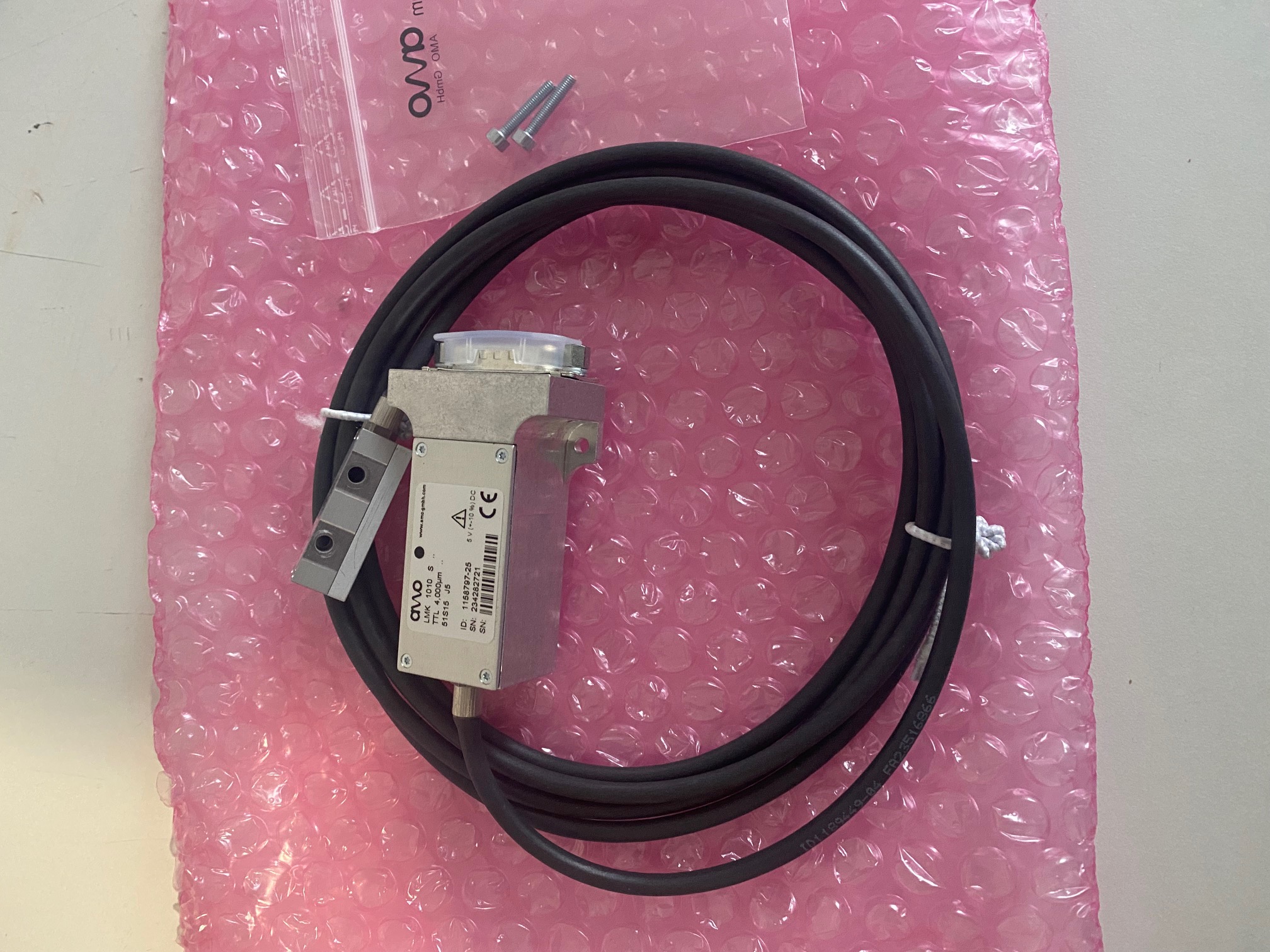

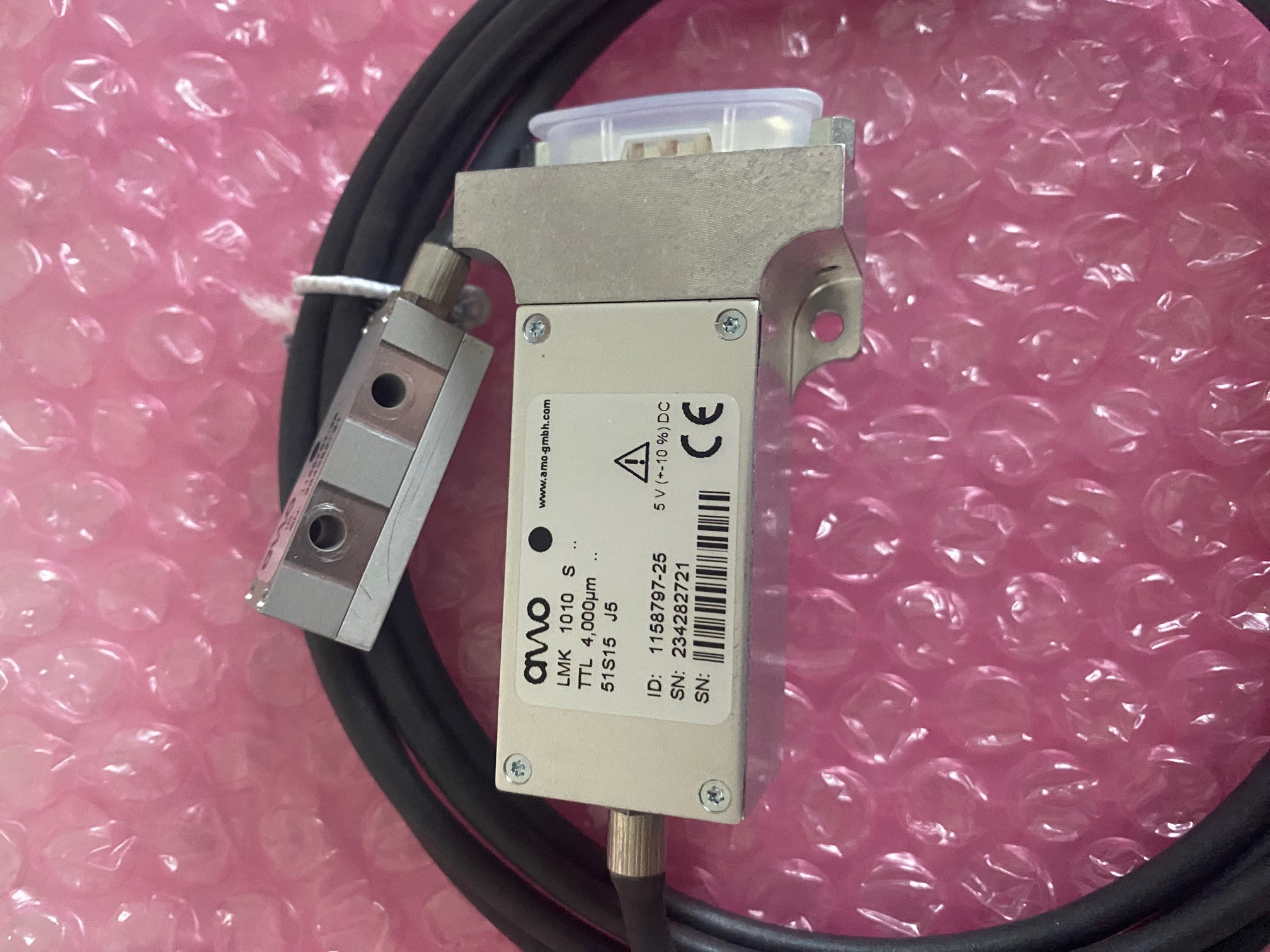

| Product | LMK 1010S .07RV..A3-A1- 2.00-51S15-J5 .. -001-83 |
| Internal code | IMP4784862 |
| Weight | 0.6 |
| Custom code | 90318020 |
| Technical specification | Measurement method: incremental Measuring principle: inductive Sensor head shape: Miniature, cable start on the right, with compact electronics included in the cable connector, Sub-D outlet height 8 mm Division period: 1000 μm Interface: TTL Incremental signals/ Multiplication: 250-times Signal period: 4,000 μm Max. scan rate: 20.00 kHz Power supply:5 V (+ -10%) DC Electrical connection: Sub-D connector, 2 rows, without locking screws, male, 15 pins Pin marking: D1164661 Cable length: 2.00 m |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Amo - LMK 1010S .07RV..A3-A1- 2.00-51S15-J5 .. -001-83 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
