| BRAND | S+S REGELTECHNIK |
| Product | 1301-1157-0130-200 |
| Description | Barometer/transducer for atmospheric air pressure |
| Internal code | IMP4760581 |
| Weight | 0.177 |
| Custom code | 90262020 |
| Technical specification | 24 V AC/ DC power supply (± 10%) Power consumption < 1 W at 24 V DC; < 2 VA at 24 V AC Burden Ra (ohms) = 25... 450 ohms with I variant Load resistance RL > 25 kOhm for U variant max. pressure ± 0.5% EW per year Output switchable 0 -10 V/ 4... 20 mA (via DIP switch) Circuit type 3-wire connection Current consumption < 45 mA Measurement ranges Multi-range switching with 4 switchable measurement ranges Pressure type atmospheric air pressure/absolute pressure Accuracy typical ± 0.4 kPa compared to calibrated reference device Zero-point offset ± 50 hPa Over -/under pressure 200 kPa Ambient storage temperature —35... +85 °C; Operating — 30... +75 °C, non-condensing Storage temperature —20... +50 °C Medium clean air and non-aggressive, non-flammable gases Signal filtering switchable 1 s/ 10 s (via DIP switch) electrical connection 2 or 3-wire connection 0.14 - 1.5 mm², via screw terminals cable fitting M 16 x 1.5; with strain relief, replaceable max. inner diameter 10.4 mm Long-term stability ± 0.5% EW per year hysteresis ± 0.1% EW Temperature drift ± 0.1% per °C EW Cable connection Plastic cable connector (M 16 x 1.5; with strain relief, replaceable, inner diameter 10.4 mm) or M12 connector (built-in plug, 5-pin, A-coding) according to DIN EN 61076-2-101 (optional on request) Temp. drift values ± 0.5% EW per 10 K housing plastic, UV-resistant, Material polyamide, 30% glass ball reinforced, with quick-release screws (slot/cross slot combination), Color traffic white (similar to RAL 9016) linearity ± 0.5% EW Case dimensions 72 x 64 x 37.8mm (Tyr 1) Humidity < 95% RH, non-condensing air protection class III (according to EN 60 730) Protection class IP 65 (according to EN 60 529) housing tested, TÜV SÜD, report no. 713139052 (Tyr 1) standards CE compliance, electromagnetic compatibility in accordance with EN 61326, according to EMC Directive 2014/ 30/EU |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for S+S REGELTECHNIK - 1301-1157-0130-200 Barometer/transducer for atmospheric air pressure number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

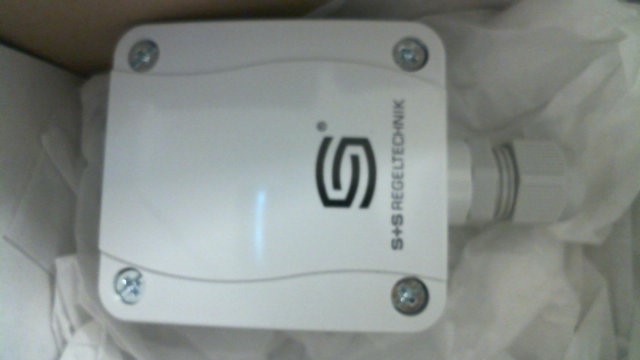

WIN_20230511_13_31_35_Pro.jpg |
