| BRAND | Bailey & Mackey |
| Product | 1382X |
| Description | Differential Pressure Switch |
| Internal code | IMP2046832 |
| Weight | 0.7 |
| Custom code | 90322000 |

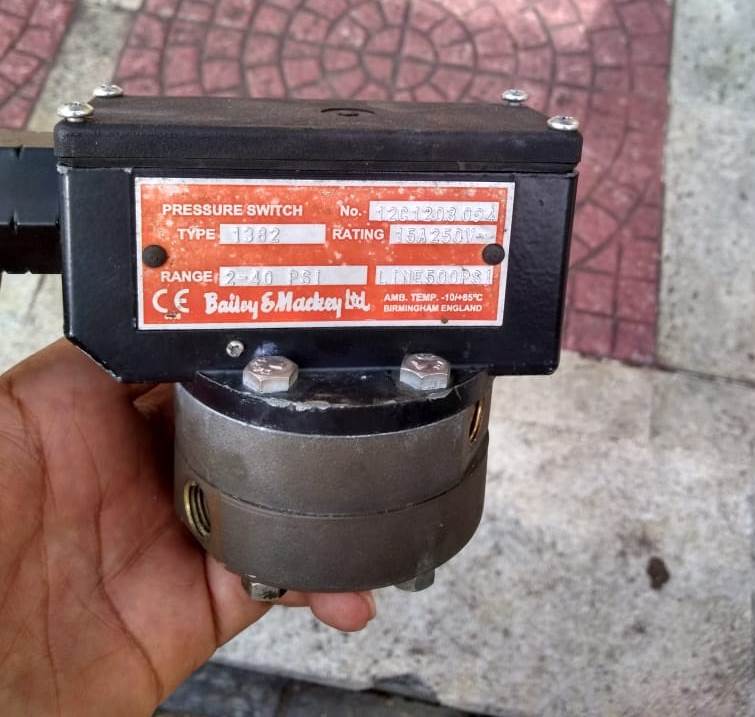

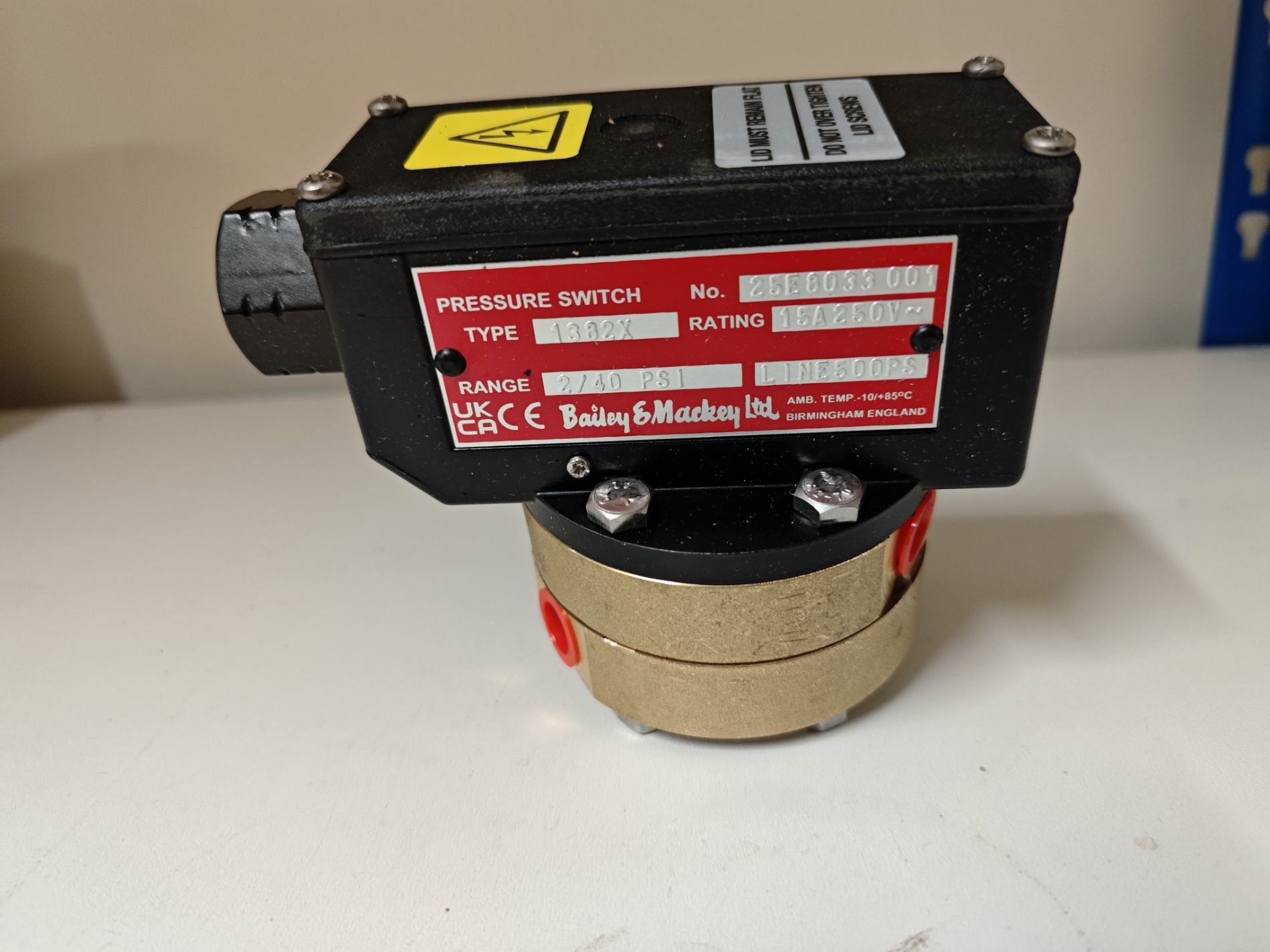

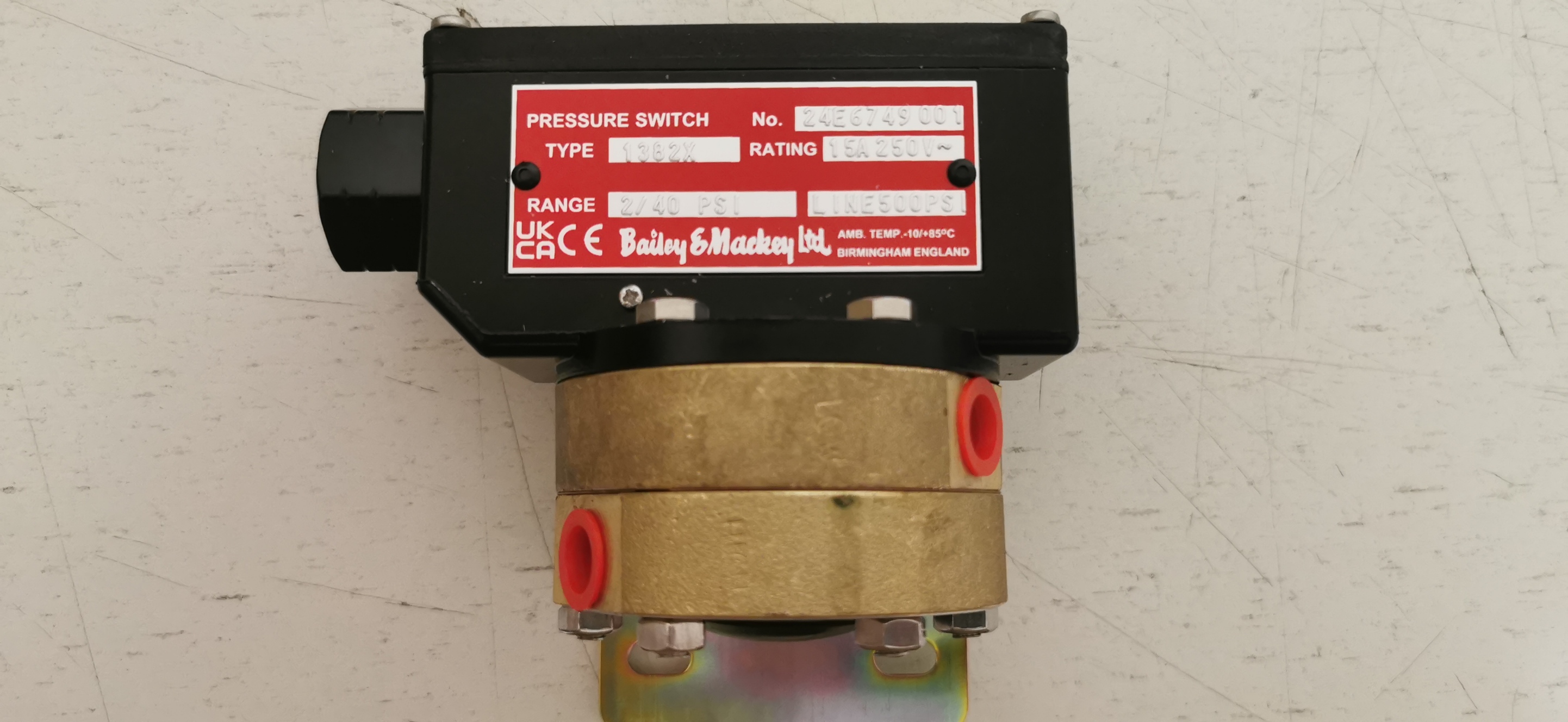

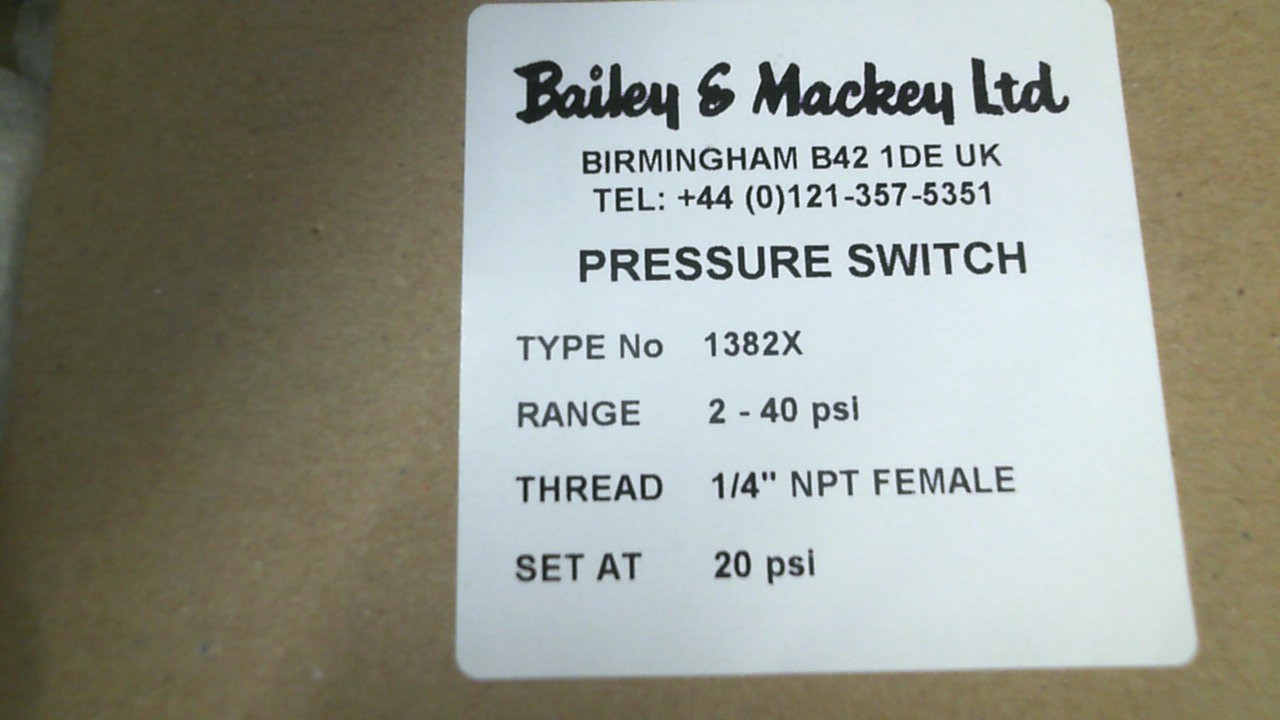

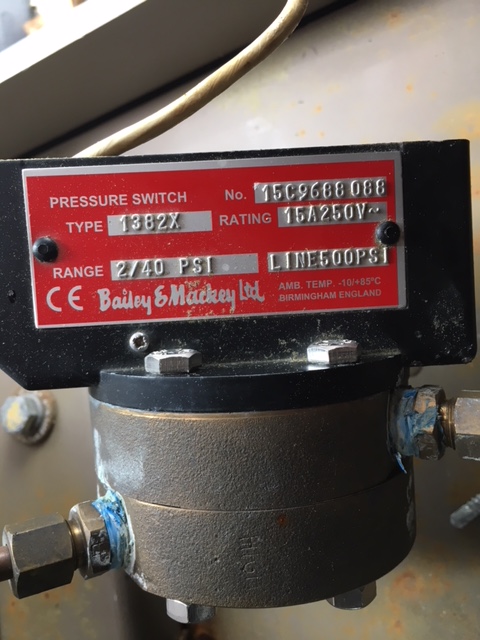

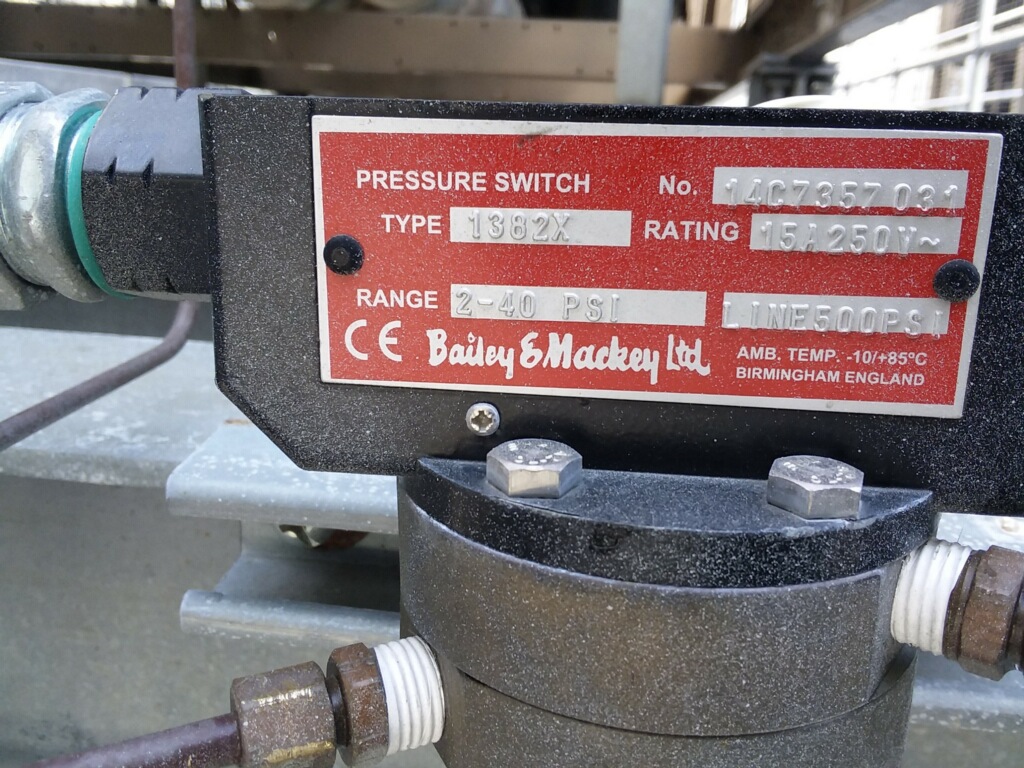

| Technical specification | Replacement pressure unit as per serial number 22E3826 091 Type 1382X Differential Pressure Switch Range: 2 to 40 psi Process Connection: 1/4” NPT female, taper Wetted parts: brass chambers with a beryllium copper diaphragm Seal: Nitrile Switch housing ingress protected to IP65 Selected SPDT microswitch rated 15A @ 250V ac Nominal Reset Differential 0.6 psi Electrical Entry fitted with 1/2” NPT Adaptor C/W Mounting Bracket Max line pressure 500 psi CE marked |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bailey & Mackey - 1382X Differential Pressure Switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
