| BRAND | Boll Kirch |
| Product | 2.04.5.90.145 DN 32 Filter unit: 1000 μm |
| Description | double filter |
| Internal code | IMP5097939 |
| Weight | 26 |
| Custom code | 84212300 |
| Technical specification | Filter type 2.04.5 Shell size (G.Q) 90.145 Nominal connection size DN 32 WN165 connection flanges, square flanges Dimension sheet Z45540 --- OPERATING CONDITIONS --- Fluid lubricating oil to be filtered fluid group in accordance with PED 2 Fluid type according to PED liquid Lubeoil (component protection) application Maximum flow rate not specified Operating pressure not specified Maximum allowable pressure 25.00 bar Operating temperature not specified Permit Operating temperature min 0.00 °C Permit Operating temperature max 100.00 °C --- CONSTRUCTION/APPROVAL --- Design and layout PED2014/68/EU AD-2000 Article 4, paragraph 3 Volume of the container 2x 1.00 liters Weight when empty 18 kg Pressure test according to Boll & Kirch --- construction/land--- no material from China and India --- MATERIALS --- Filter housing made from EN-GJS-400-15 Type of changeover valve chick faucet changeover Material of the EN-GJS-400-15 changeover armature Internal parts of the EN-GJS-400-15 changeover armature Viton GF-S circuit seals Gaskets made from Viton GF-S --- FILTER ELEMENTS --- Item type basket sieve element Material of the element CrNi steel 1.4401 fabric Fabric number 26 Filter fineness 1000 µm Screen area 2x 222 cm² --- ACCESSORIES --- Attached differential pressure indicator 4.36.2 (optical + electrical) Viton GF-S differential pressure indicator sealant Differential pressure setting cleaning 0.6bar/alarm 0.8bar Counterflan. Screws and gaskets included --- Accessories/Connections--- Ventilation with plug Draining with stopper --- Accessories/differential pressure measurement--- DDA can be read from the flange side --- CORROSION PROTECTION --- Outer coat 2K-Ep RAL 6011 100-200 µm Shell Tellus S2 M 32 interior preservation --- MARKING --- Operator/factory sign German/English Without marking in accordance with the Pressure Equipment Directive --- DOCUMENTATION --- Language of the operating instructions in German/English |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Boll Kirch - 2.04.5.90.145 DN 32 Filter unit: 1000 μm double filter number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

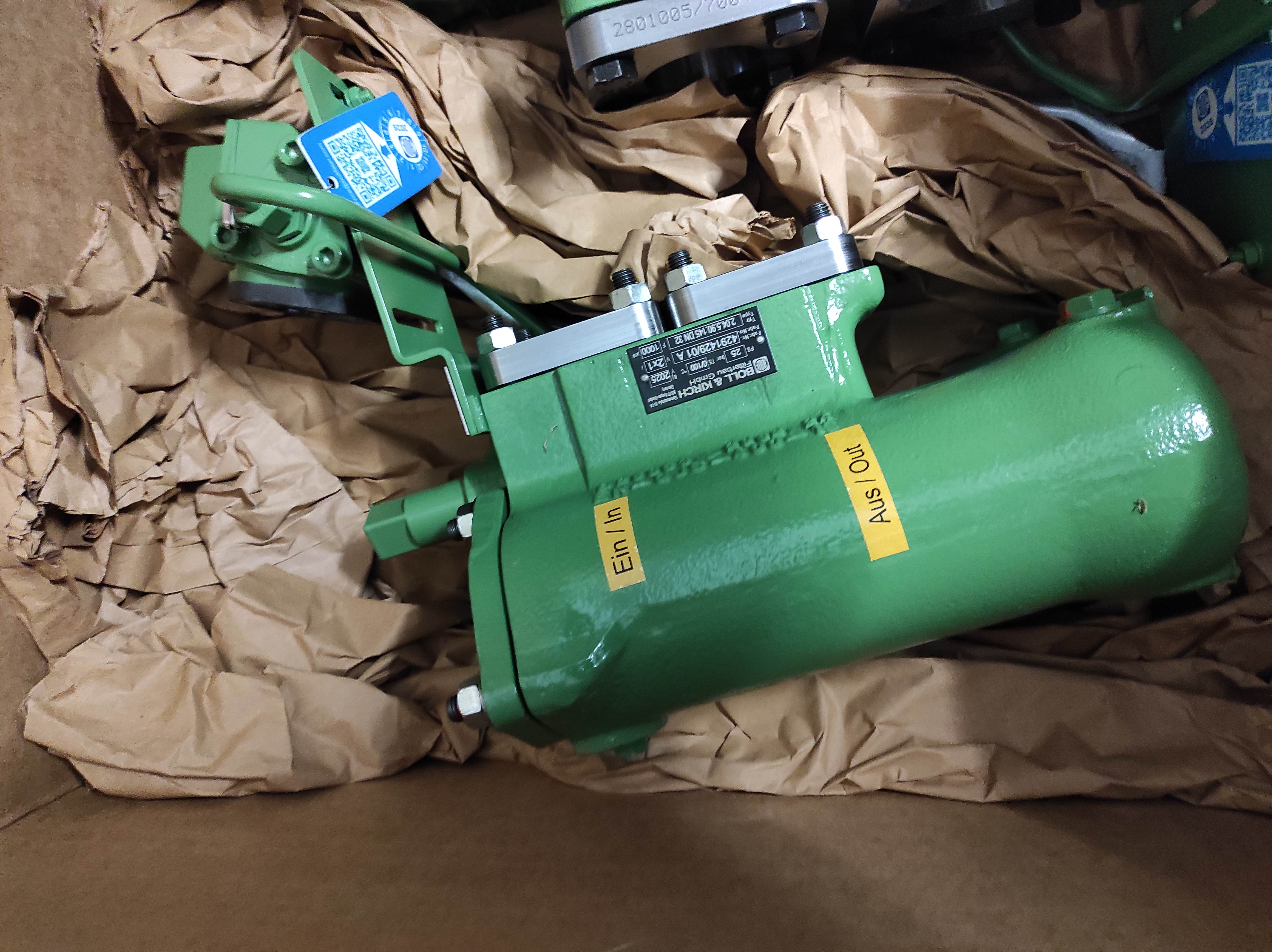

IMG_20250409_103430.jpg |
