| BRAND | Fairchild |
| Product | 20812U |
| Description | Pneumatic Precision Booster |
| Internal code | IMP5039223 |
| Weight | 1.36078 |
| Technical specification | Accuracy: 0.15 psi Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C) Base Model: 20812 Body Material: Aluminum Connection Size: 1/4 in. NPT Elastomer: Nitrile on Dacron Exhaust Capacity: 11 SCFM [18.7m³/hr] where downstream pressure 5 psi above output pressure set @ 20 psi Exhaust Type: Straight (standard) Flow Capacity: 45 SCFM (76.5 m³/hr) FlowCv: Approximately 1 Max. Output Pressure: 150 psig Max. Supply Pressure: 250 psig Mounting: Wall (09921 bracket required) Operator: Pneumatic Pilot Signal Options: BSPT (Tapered), None Pipe Size: 1/4 BSPT Pressure Range: 0 to 150 psi Product Type: Pneumatic Precision Boosters Ratio: 1:01 RatioAccuracy: 1.0% of 100 psi output span Sensitivity: 1/4 in. WC Signal to Output Pressure Ratio: 1:01 Supply Pressure: 250 psi Product Category: Pneumatic Volume Boosters |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Fairchild - 20812U Pneumatic Precision Booster number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

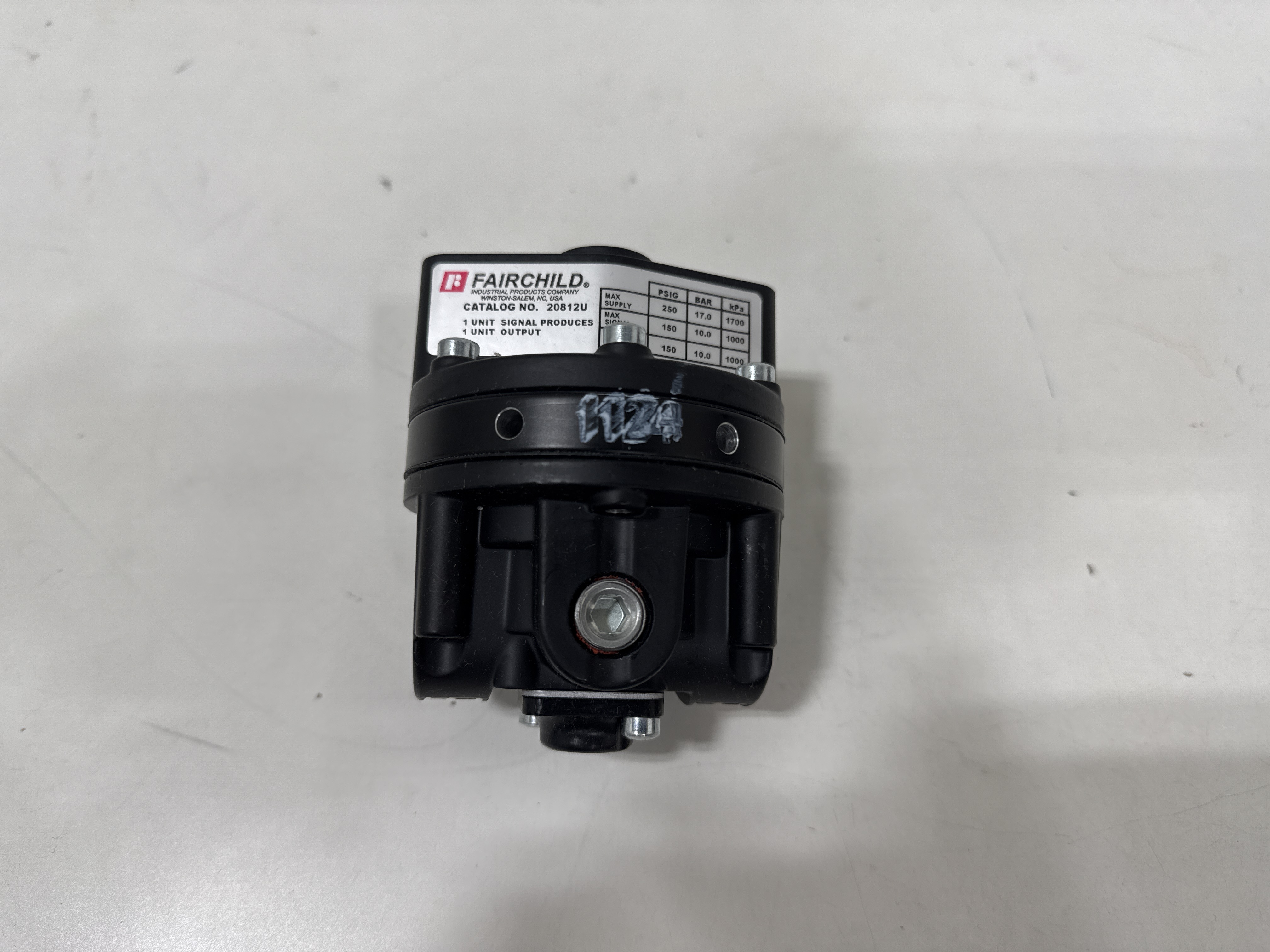

Fairchild 20812U.jpg |
