| BRAND | ARI |
| Product | 23.470 DN40 PN25 |
| Description | control valve |
| Internal code | IMP4642013 |
| Weight | 20 |
| Technical specification | ARI-STEVI 470/422 in continuous form with flanges and shaft-guided cone EN-JS1049 DN 40 Nominal pressure: PN 25 Flange drilling: according to DIN PN25 Cone design: standard cone, stellated Kvs value: 6.3 characteristic: linear Housing seat design: screw seat, plated Spindle sealing: roof collars/PTFE graphite Engine: PREMIO Valve lift: 20mm stroke Drive type: PREMIO 2.2kN max. closing pressure (bar): 25 Motor type: synchronous motor Voltage: 230V 50/60Hz Setting speed: 0.38mm/sec 0.45mm/sec Operating time: 53/45s Spindle overhang: 83mm Coupling: M12 thread Shifter: yes Potentiometer: 1 STK 1000 ohms |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for ARI - 23.470 DN40 PN25 control valve number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

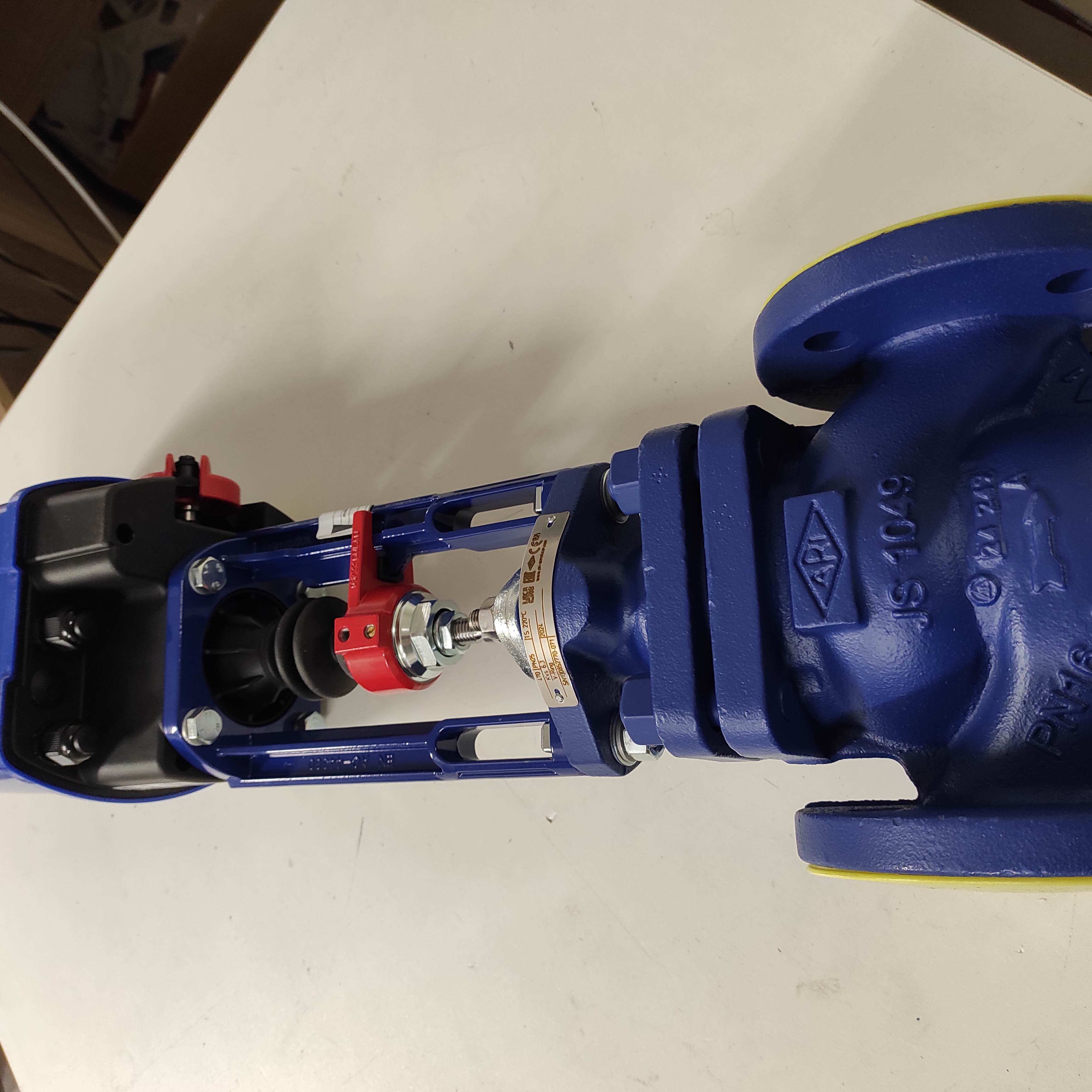

IMG_20250108_102948.jpg | |
|
|

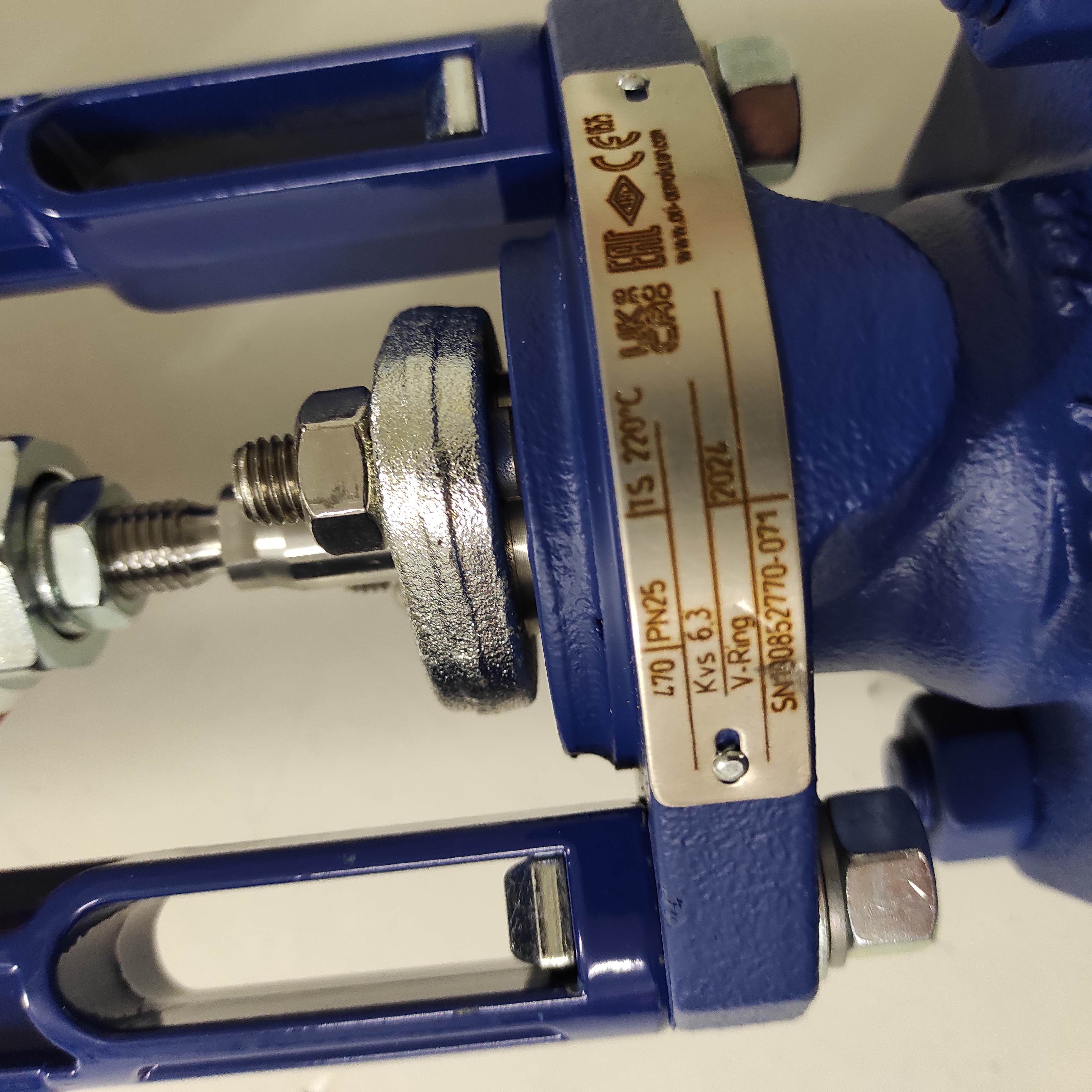

IMG_20250108_102955.jpg |
