| BRAND | TRETEC |

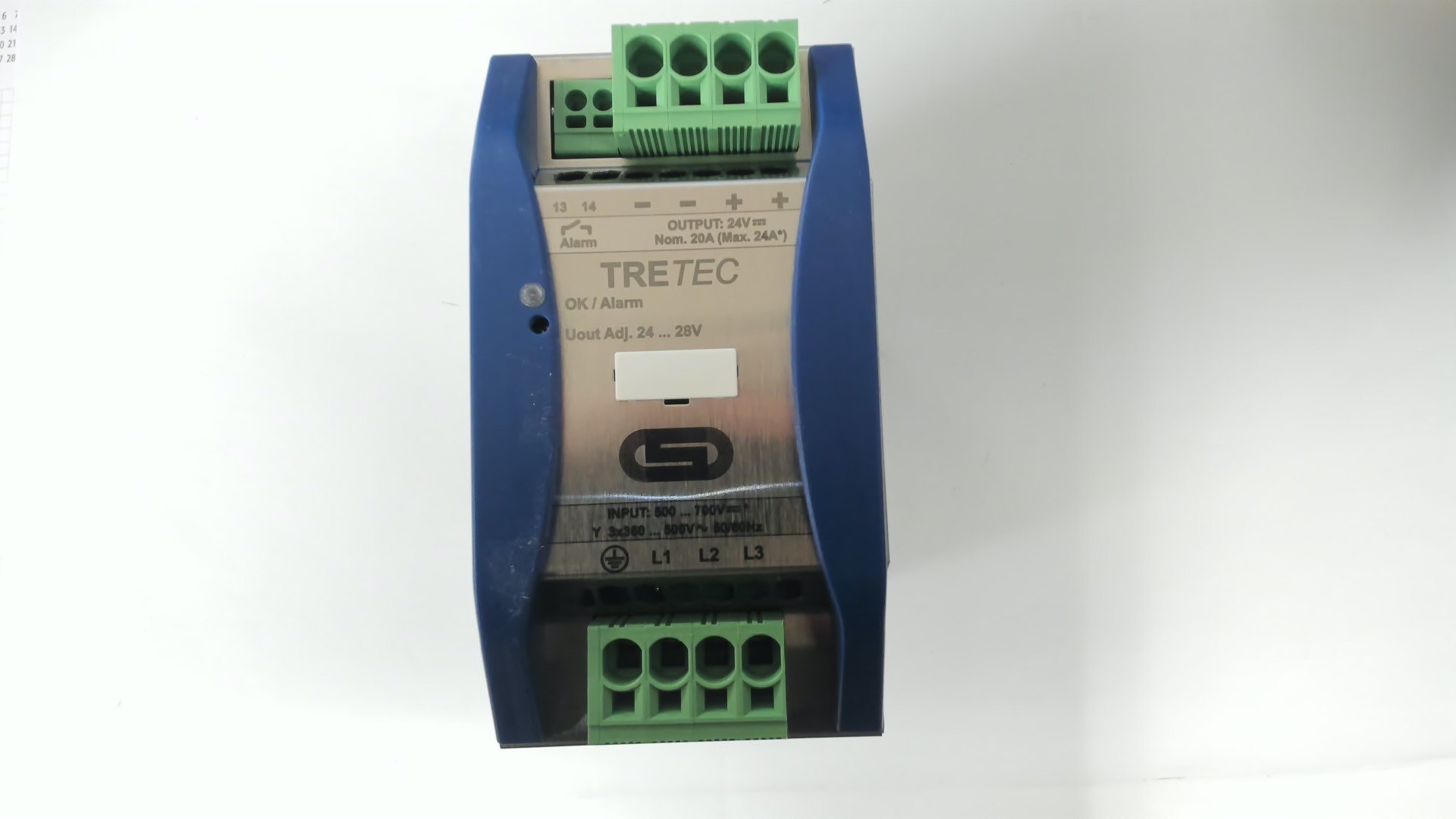

| Product | TRETEC 2424 N |
| Internal code | IMP5100502 |
| Weight | 1.2 |
| Custom code | 85044083 |
| Technical specification | specifications designation TRETEC 2424 N Item number NFPG1529G03001 nominal input voltage 3 x 360 V... 500 VAC ± 10% 500 V... 700 VDC ± 10% nominal frequency 50... 60 Hz ± 6% rated current 0.45 A @ 3 x 360 VAC 0.30 A @ 3 x 500 VAC nominal output voltage 24 V DC ± 1% Rated current max. 45°C Rated current max. 60°C Rated current max. 70°C 24.0 A... 10.2 A/24... 28 VDC 20.0 A... 8.6 A/24... 28 VDC 15.0 A... 6.0 A/24... 28 VDC efficiency 94.8% Network outage bridging > 20 ms at 400 V parallel circuitability Yes max. 3 devices Series switchability Yes max. 2 devices Protection class IP20 operating temperature -40... 70 °C storage temperature -40... 85°C Relative Humidity 95% non-condensing Max. installation height (without power reduction) 2000 m above sea level Dimensions (H x W x D) 143mm x 65mm x 167mm weight 0.66 kg Standards and regulations EN 61204-3 EN 61000-3-2/-3 EN 61000-4-2/-3/-4/-5/-6/-11 IEC/EN 60950-1 EN 60204-1 SEMI F47 - 0706 EN 60950-1 overvoltage category II UL approvals UL 508 C22.2 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for TRETEC - TRETEC 2424 N number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
