| BRAND | Coax |

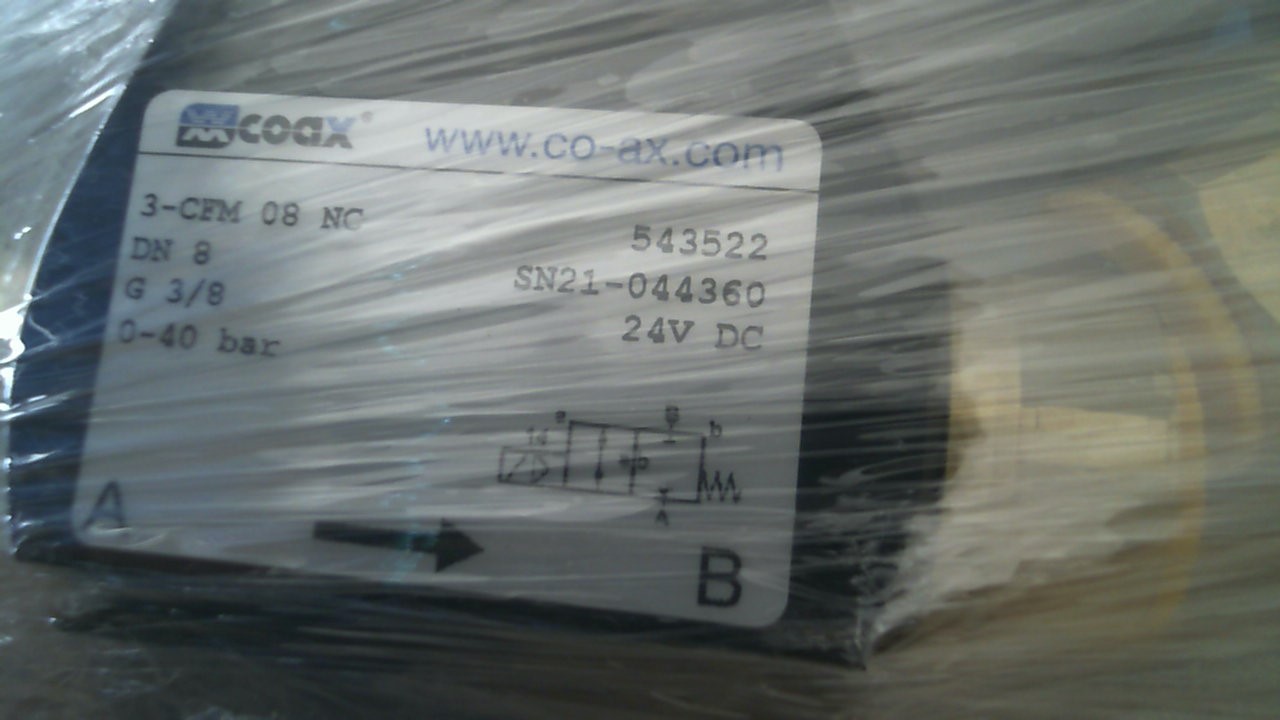

| Product | 543522 (3-CFM 08 NC) |
| Description | 2/2-Way Externally Controlled Coaxial Valve, Normally Closed |
| Internal code | IMP4260801 |
| Weight | 0.3 |
| Custom code | 84818079 |
| Technical specification | <ul><li><strong>Model:</strong> 3-CFM 08 NC</li><li><strong>Manufacturer:</strong> Coax</li><li><strong>Type:</strong> 2/2-Way Externally Controlled Coaxial Valve</li><li><strong>Function:</strong> Normally Closed (NC)</li><li><strong>Port Size:</strong> G 3/8" threads</li><li><strong>Pressure Range:</strong> 0-40 bar</li><li><strong>Flow Rate (Kv):</strong> 1.6 m³/h</li><li><strong>Media:</strong> Suitable for emulsions, oils, and neutral gases</li><li><strong>Switching Time:</strong> Opening: 70 ms; Closing: 80 ms</li><li><strong>Media Temperature:</strong> Up to +60°C</li><li><strong>Ambient Temperature:</strong> Up to +50°C</li><li><strong>Protection Class:</strong> IP65</li><li><strong>Features:</strong> Compact design; high switching cycles; optional pilot valve and limit switches.</li></ul> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Coax - 543522 (3-CFM 08 NC) 2/2-Way Externally Controlled Coaxial Valve, Normally Closed number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
