| BRAND | Trombetta |
| Product | 684-2461-212 |

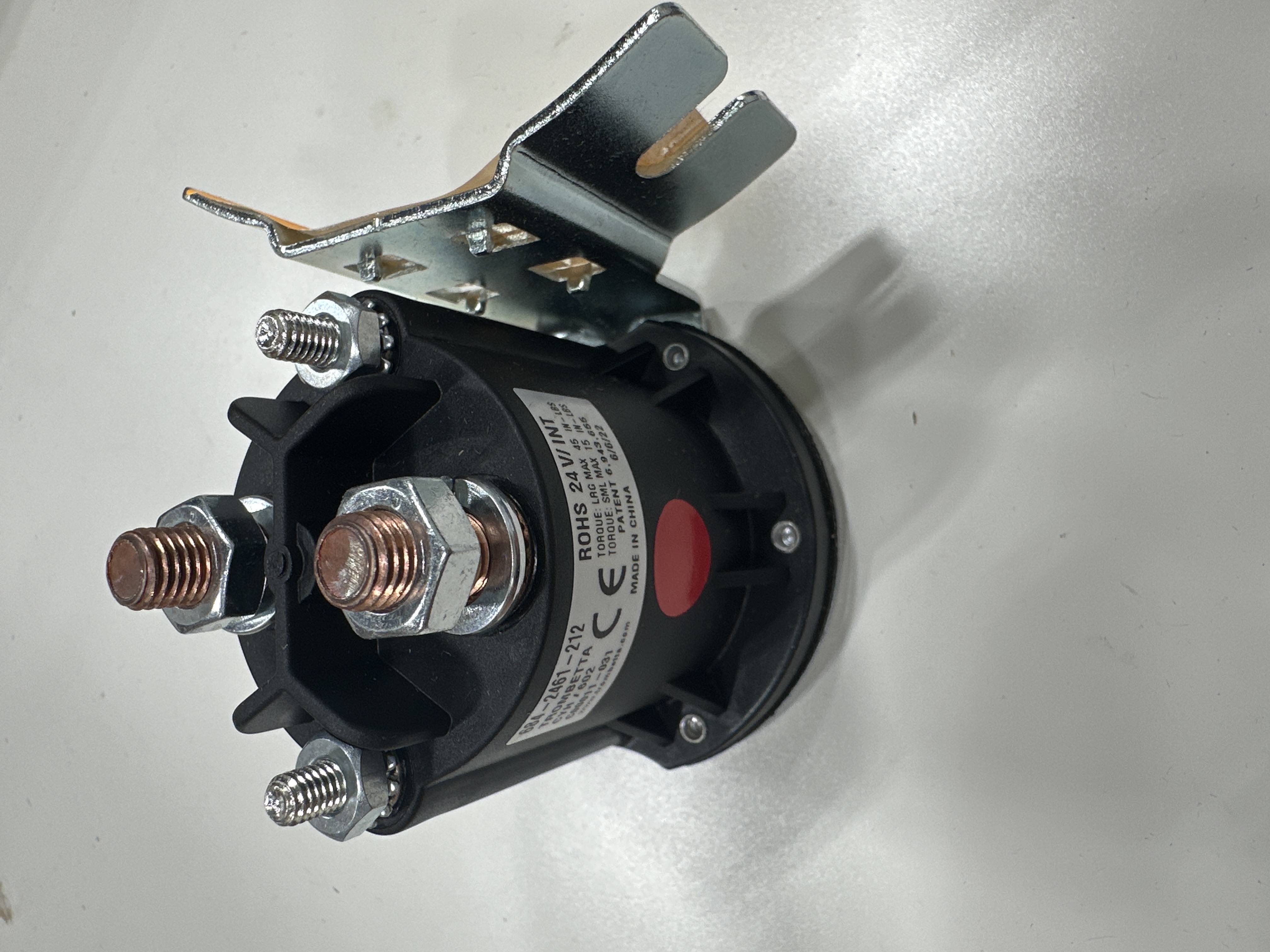

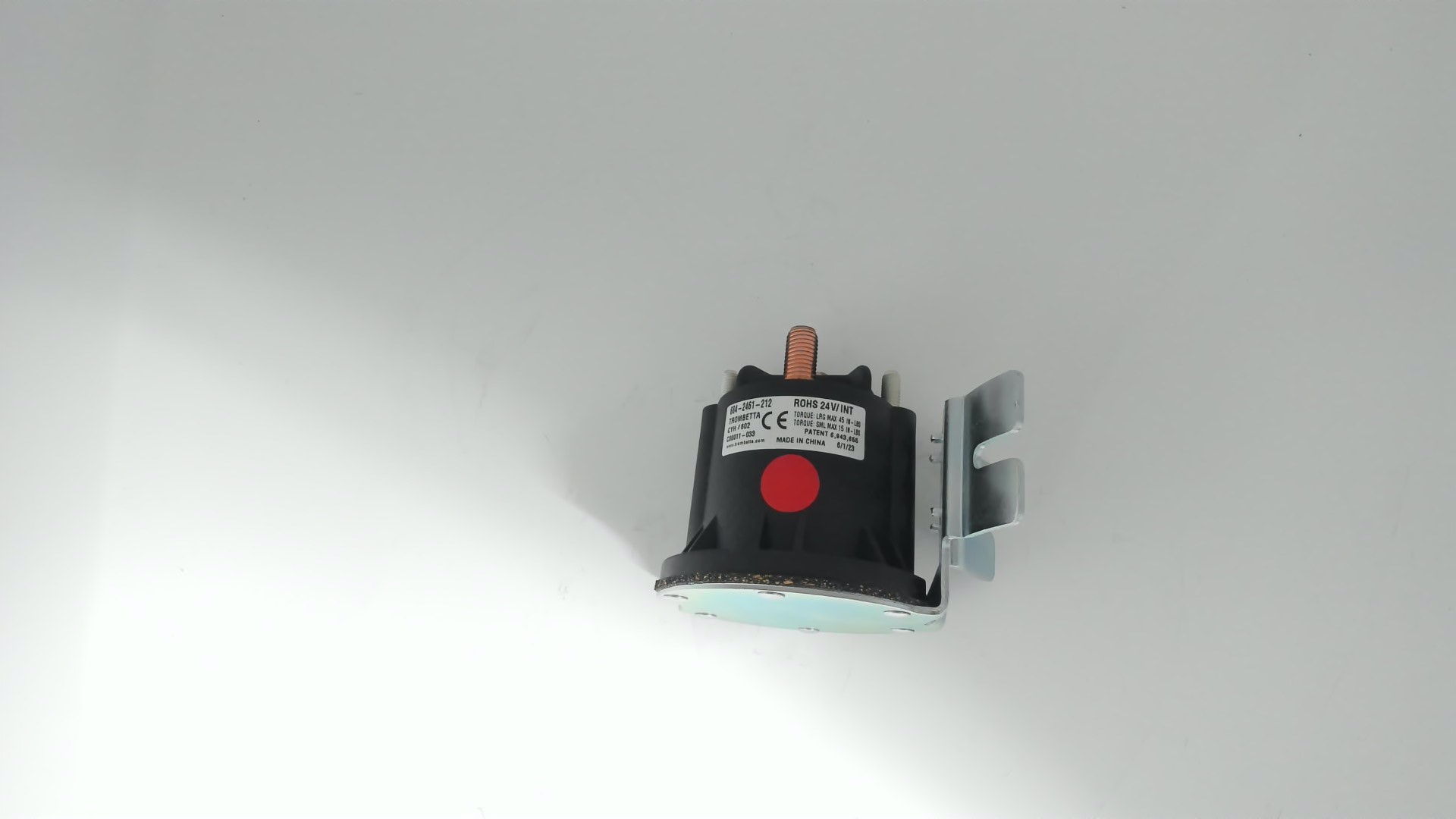

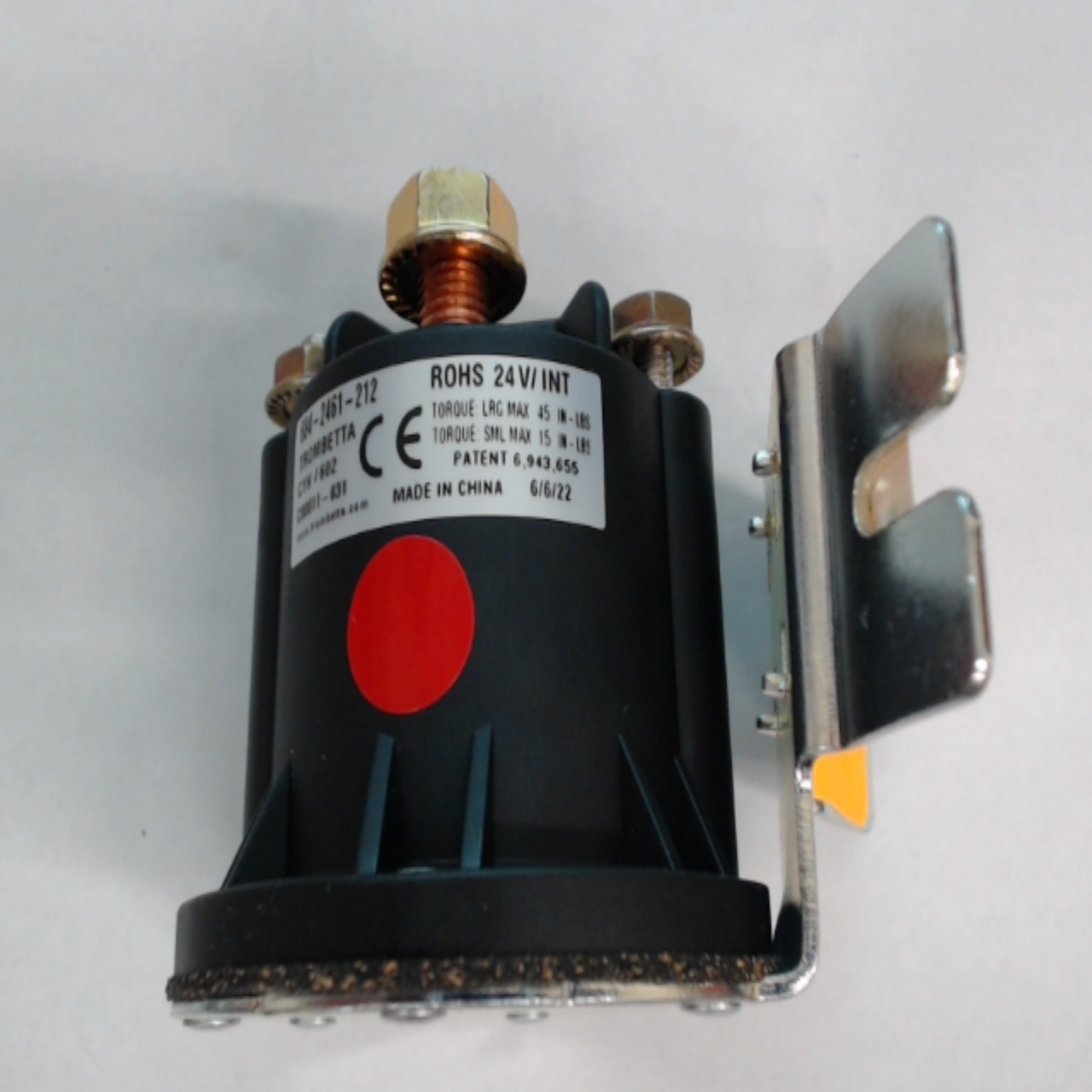

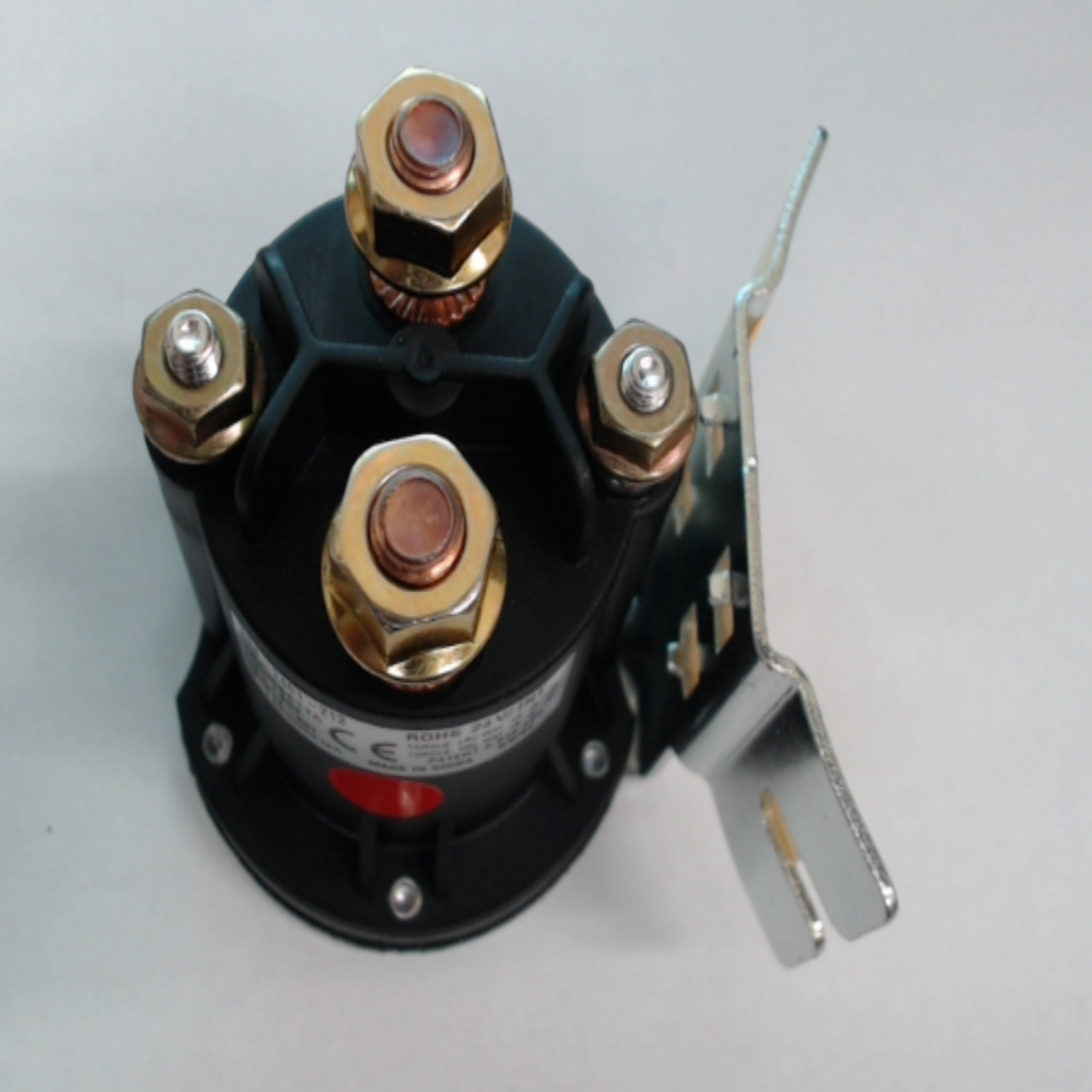

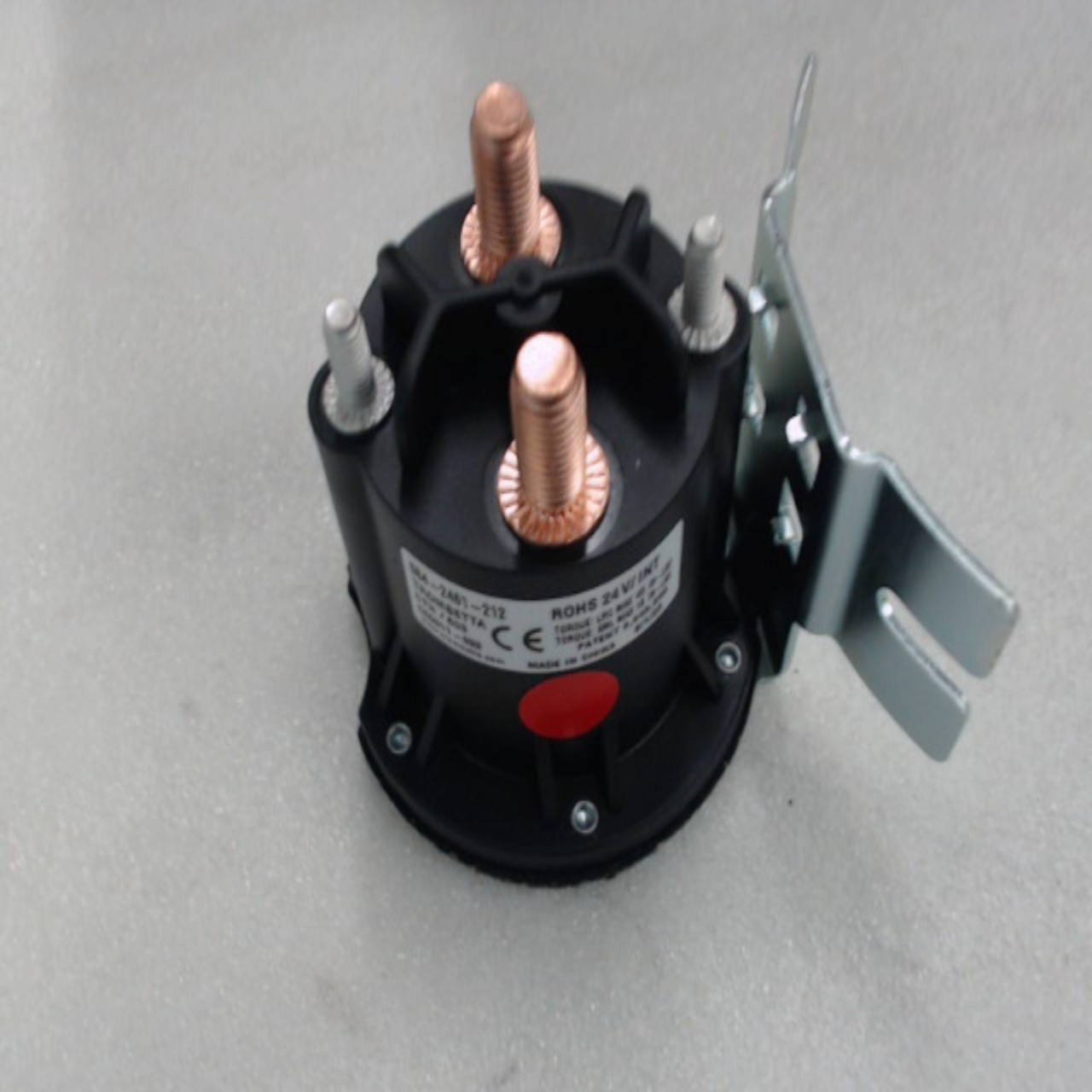

| Description | OE 24V Trombetta DC magnetic switch |
| Internal code | IMP1836792 |
| Weight | 0.47 |
| Custom code | 85118000 |
| Technical specification | OE/Original equipment manufacturer: Trombetta, Yale Jungheinrich Quality standard: original spare part Family: Trombetta 684 Family Type: Trombetta PowerSeal Quality: OEM Condition: new Voltage (V): 24 Tightening voltage (V): 12 Hold voltage (V): 7 Number of ports: 4 Contact material: copper Connector 30:5/16-24 (7.938 mm) Connection 30h: 5/16-24 (7.938 mm) Connection 31: screw connection 10-32 (4.826 mm) Connection 50: screw connection 10-32 (4.826 mm) Insulated dimensions: yes Operating time: Short-term operation Max turn-on time (sec): 360 Inrush Current (Amp): 800 Continuous Current (Amp): 150 Coil resistance (ohms): 20.1 Sealing: No additional Dust and splash water seal: yes Mount: L bracket, curved & narrow |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Trombetta - 684-2461-212 OE 24V Trombetta DC magnetic switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
