| BRAND | Elgo |

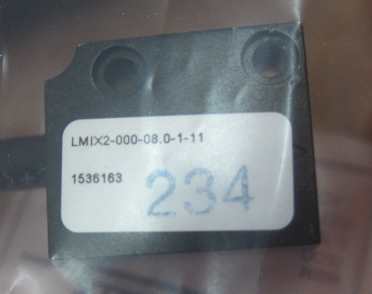

| Product | 733280145 LMIX2-000-08.0-1-11 |
| Description | Incremental Linear Encoder with 8.0M Cable |
| Internal code | IMP163288 |
| Weight | 2 |
| Technical specification | <ul><li><strong>Model:</strong> LMIX2-000-08.0-1-11</li><li><strong>Manufacturer:</strong> Elgo</li><li><strong>Measuring Principle:</strong> Incremental</li><li><strong>Resolution:</strong> 0.025 mm (at 4-edge triggering)</li><li><strong>Repeat Accuracy:</strong> ±1 increment</li><li><strong>System Accuracy:</strong> ±(25 + 20 x L) µm at 20°C, where L is the measuring length in meters</li><li><strong>Distance Sensor/Tape:</strong> Max. 2.0 mm</li><li><strong>Sensor Housing Material:</strong> Zinc die-cast</li><li><strong>Housing Dimensions:</strong> 30 x 12.5 x 25 mm</li><li><strong>Pole Pitch:</strong> 5 mm</li><li><strong>Maximum Measuring Length:</strong> Theoretically unlimited</li><li><strong>Connections:</strong> Open cable ends</li><li><strong>Sensor Cable:</strong> 8.0 meters</li><li><strong>Power Supply Voltage:</strong> 5 VDC</li><li><strong>Output Signals:</strong> A, A', B, B', Z, Z'</li><li><strong>Output Levels:</strong> TTL</li><li><strong>Output Current per Channel:</strong> Max. 20 mA</li><li><strong>Maximum Output Frequency per Channel:</strong> 100 kHz</li><li><strong>Operating Speed:</strong> Up to 5 m/s</li><li><strong>Operating Temperature:</strong> -10°C to +70°C</li><li><strong>Protection Class:</strong> IP67</li></ul> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Elgo - 733280145 LMIX2-000-08.0-1-11 Incremental Linear Encoder with 8.0M Cable number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
