| BRAND | Stahl |
| Product | P/N: 169543, Type 8006/4-120-00 |
| Description | Load/motor switch |
| Internal code | IMP5040893 |
| Weight | 0.42 |
| Custom code | 85365080 |
| Technical specification | Rated operating voltage DC: 220 V Number of switch positions: 2 Detailed number of pins: 4 P Case material: epoxy resin Contact material: silver-tin oxide Range of use (zones): 1, 2 Gas explosion protection: II 2 G Ex db eb IIC T6 Gb Impact protection: I M2 Ex db eb I Mb Min. ambient temperature: -50 °C Max. ambient temperature: +70 °C 1.5... 6 mm2 Connection type: screw terminal Minimum lifespan: 2 x 10^5 switching cycles Short circuit resistance: 20.00 kA Short circuit protection max.: 35 A gG |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Stahl - P/N: 169543, Type 8006/4-120-00 Load/motor switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

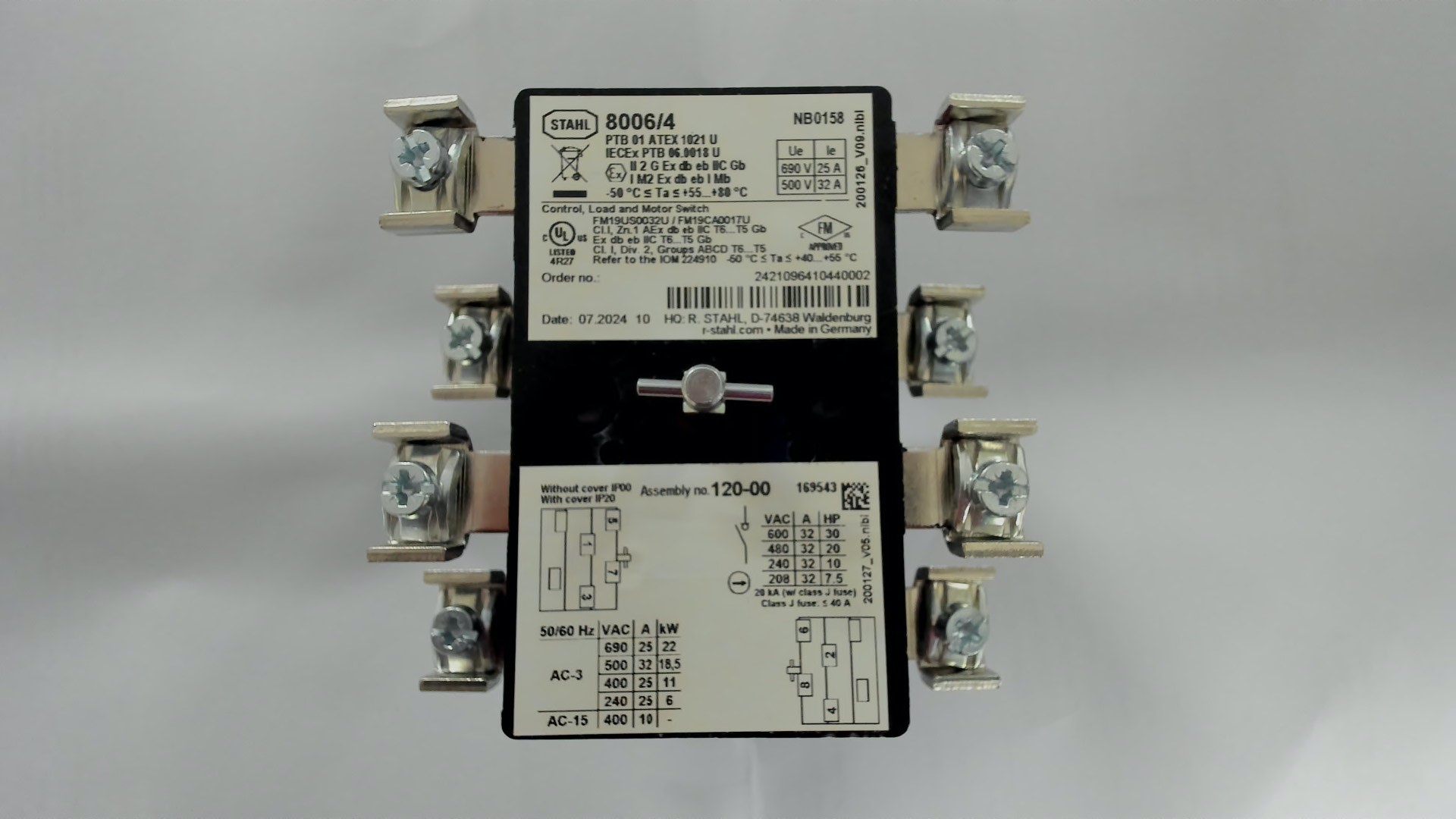

WIN_20241015_11_06_18_Pro.jpg |
