| BRAND | Stahl |
| Product | 8570/11-505-S-01-0-00-XXX / 273897 |

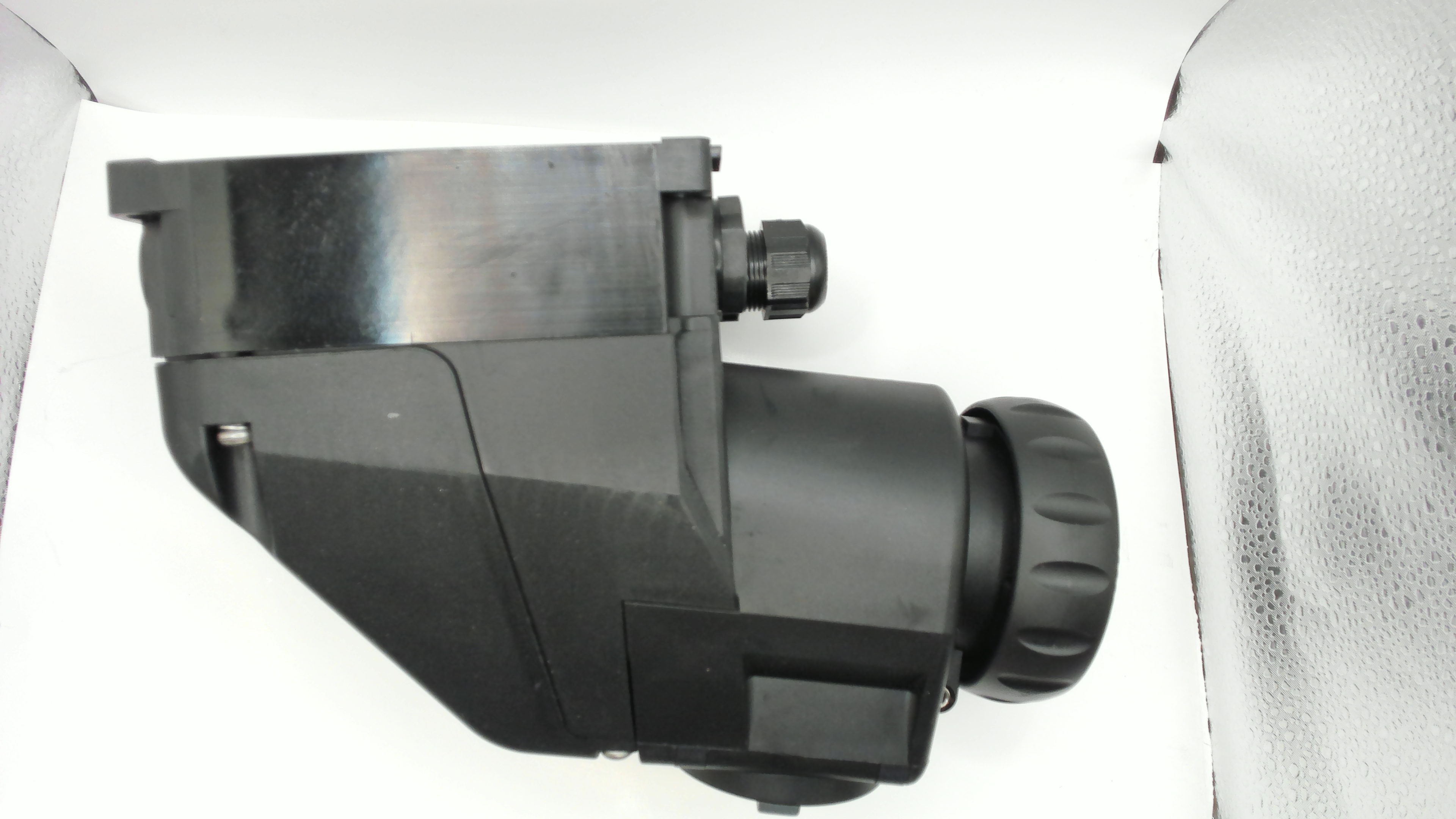

| Description | Wall-mounting socket 16 A |
| Internal code | IMP5069606 |
| Weight | 1.45 |
| Custom code | 85366990 |
| Technical specification | explosion-protected | 8570/11-505-S-01-0-00-XXX | Rated operational voltage : 347/600 to 400/690 V AC | Frequency range : 50 / 60 Hz | Detailed number of poles : 3 P + N + PE | Colour code : Black | Coding (clock hour position) : 5 | Enclosure material : Polyamide , Glass fibre reinforced | Silicone-free : No | Application range (zones) : 1,2,21,22 | Scope of validity : European Union (ATEX) | Gas explosion protection : II 2 G Ex db eb IIC T6 … T5 Gb | Dust explosion protection : II 2 D Ex tb IIIC T73 °C Db | min. ambient temperature : -50 °C | max. ambient temperature : +35 °C | Rated operational current : 16 A | Min. ambient temperature 2 : -50 °C | Max. ambient temperature 2 : +65 °C | Rated operational current 2 : 6 A | Min. ambient temperature F : -58 °F | Max. ambient temperature F : +95 °F | Min. ambient temperature °F 2: -58 °F | Max. ambient temperature °F 2: +149 °F | IP degree of prot. (IEC 60529): IP66 | IP degree of prot. (IEC 60079): IP64 | Impact strength (IEC 60079) : 7.00 J | Impact strength (IEC 62262) : IK10 | Entry 1 : M25 x 1.5 | Entry 1 type : Polyamide cable gland | Entry 1 type : 8161/7-M25-1707-LT | Entry 1 terminal area : 7 - 17 mm | Entry 2 : M25 x 1.5 | Entry 2 type : Polyamide stopping plug | Entry 2 type : 8290/3-M25 | |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Stahl - 8570/11-505-S-01-0-00-XXX / 273897 Wall-mounting socket 16 A number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
