| BRAND | Stahl |
| Product | P/N: 150494, Type: 8570/11-506 |

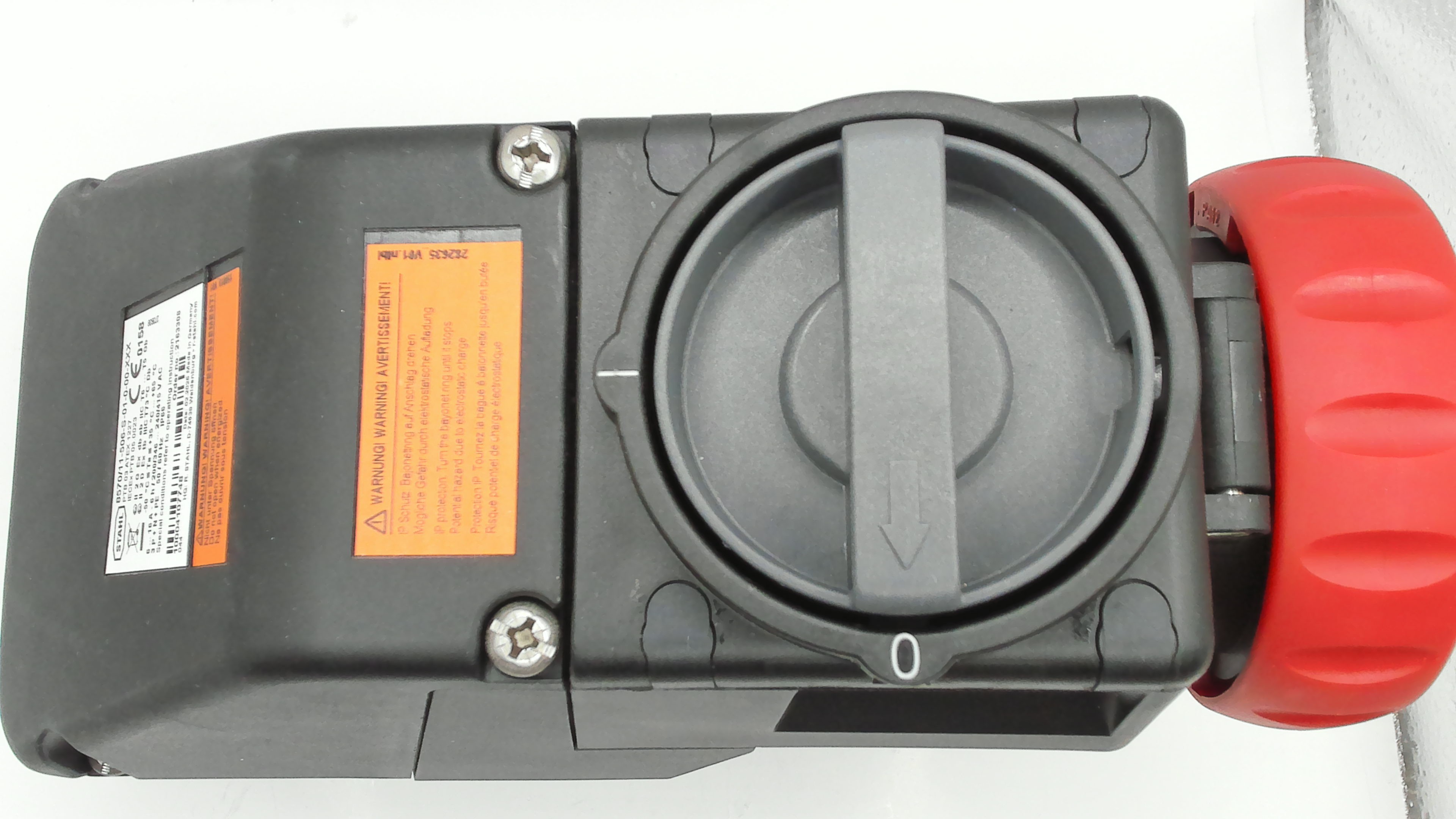

| Description | Switch socket |
| Internal code | IMP173190 |
| Weight | 1.45 |
| Custom code | 85366990 |
| Technical specification | Switch socket | Explosion-protected | Type : 8570/11-506 | AC rated operational voltage : 240 V | 415 V | Frequency range : 50 - 60 Hz | Detailed number of poles : 5 P (3 P + N + PE) | Colour code : Red | Coding (clock hour position) : 6 | Auxiliary contacts available : No | Enclosure material : Polyamide | Application range (zones) : 1 , 2 , 21 , 22 | Gas explosion protection : II 2 G Ex db eb IIC T6 Gb | Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db | Min. ambient temperature : -30 °C | Max. ambient temperature : +55 °C | Rated operational current : 16 A | Degree of protection (IP) : IP66 | Entries : 2 x M25 x 1.5 | Screw connections : 1 x M25 x 1.5 | Entry type 1 : 8161/7-M25-1707 | Cable entry material : Polyamide, black | Cable diameter : 7 … 17 mm | Stopping plug : 1 x M25 x 1.5 | Stopping plug material : Polyamide, black |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Stahl - P/N: 150494, Type: 8570/11-506 Switch socket number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
