| BRAND | Airtec |
| Product | 86-MV-5-38-311-M42 |

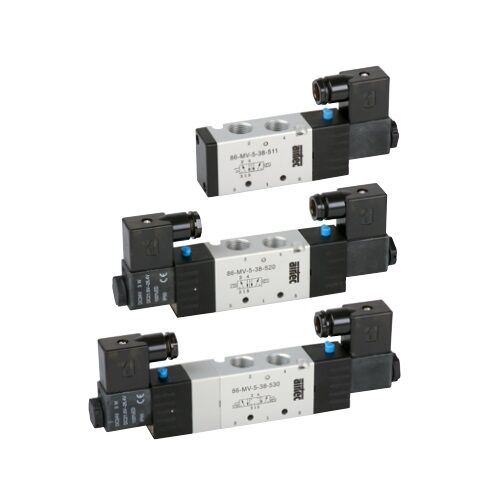

| Description | Electrically operated spool valve |
| Internal code | IMP4768913 |
| Weight | 2.26796 |
| Technical specification | Series 86-MV-5-38 Technical details: Series 86-MV-5-38 5/2-way valves Electrically operated spool valve. The manual override is detent/ non-detent. It is operated manually or by screwdriver. Please complete: xxx = electrical option Connection pressure inlets G3/8, exhausts G1/4 Temperature range -10°C ... +70°C Medium Filtered, oil-free and dried compressed air according to ISO 8573-1:2010, Class 7:2:4, instrument air, free of aggressive additives. Alternatively the pressure dew point must be at least 10°C below lowest occurring ambient temperature. Materials Body: Al (anodized), plastic, seals: NBR, inner parts: Al, steel and plastic Protection IP 65 according to EN 60529 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Airtec - 86-MV-5-38-311-M42 Electrically operated spool valve number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
86-MV-5-38.jpg |
