| BRAND | ALTMANN |
| Product | 8940302562 |

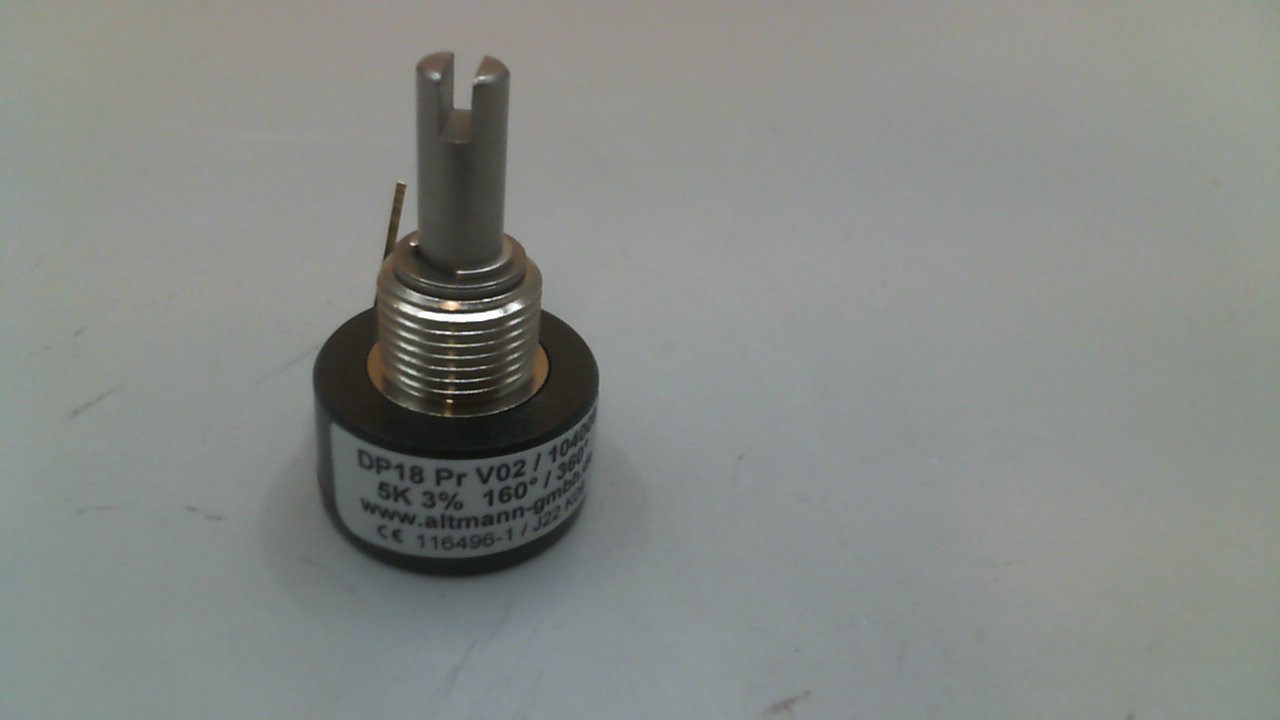

| Description | Potentiometer |
| Internal code | IMP3295345 |
| Weight | 0.1 |
| Custom code | 85333100 |
| Technical specification | Article 104009 DP18 Pr V02 Z256 Resistance: 5 K ohms Tolerance: ± 3% Electrical angle: 160° Mechanical angle: 360° Short circuit range: 2x100° Connection type: PCB connection Central mounting: M12x1 Shaft diameter: 6.00 mm Wavelength: 14 mm Shaft slot: 2x4 mm Protection class: IP64/shaft needle bearing after drawing# 894 030 256 2 Soldering heat up to 230° in accordance with IPC/JEDEC standard Potentiometer 2.0 RoHS compliant |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for ALTMANN - 8940302562 Potentiometer number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
IMG_3156.JPG | |
|
|
IMG_3157.JPG | |
|
|
WIN_20220318_10_53_06_Pro.jpg | |
|
|
WIN_20230425_13_47_03_Pro.jpg | |
|
|
WIN_20240418_14_35_22_Pro.jpg |
