| BRAND | Bender |

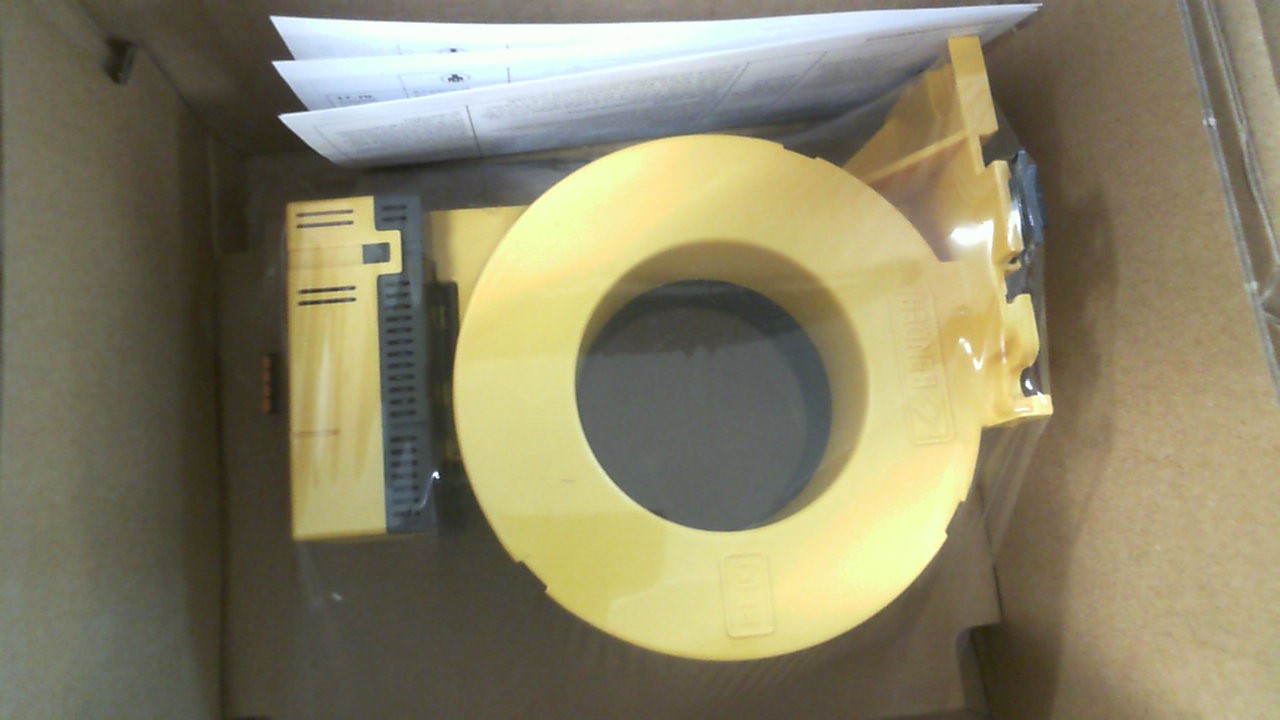

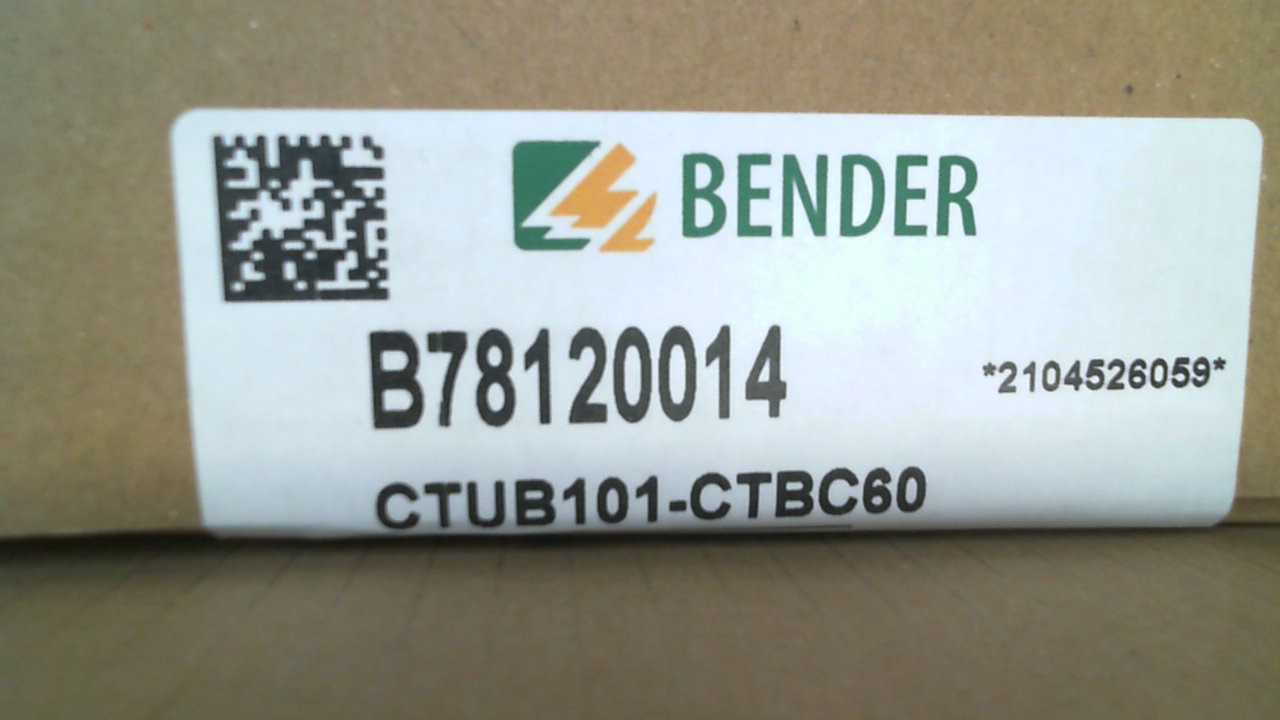

| Product | p/n: B78120014, Type: CTUB101-CTBC60 |
| Description | current transformer |
| Internal code | IMP4123451 |
| Weight | 0.53 |
| Custom code | 90303370 |
| Technical specification | LV current transformer Primary current 250 A Line feed-through diameter:60 mm Rated voltage: 800 V Over voltage category III Operating height: ≤ 2000 m above sea level Rated surge voltage: IC1/IC2 8 kV Rated insulation voltage (reinforced insulation): IC1/IC2 800 V. Pollution level: 2 Supply voltage US: DC ±12 V. Us Workspace: ±2% Ripple US: ≤ 1% Own consumption: ≤ 2.5 W Inrush current 500 mA (referred to the RCMA423) CTBC60 at IΔn = 30 mA: 160 A. CTBC60 at IΔn = 300 mA: 250 A. Measuring accuracy ± 1 % Test development: Yes Thermal rated continuous differential current Icth: 30 A. Thermal rated short-time current Ith: 2.4 kA/1 s. Rated surge current Idyn: 6 kA/40 ms Output Name: S1 (k), S2 (l) Scaling 400 mV/1 A. Max. voltage 10 V Max. Connection length 10 m Output resistance 172 Ω Protection class, installation (DIN EN 60529): IP40 Protection class, terminals (DIN EN 60529): IP20 Flammability class UL94 V-0 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bender - p/n: B78120014, Type: CTUB101-CTBC60 current transformer number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
