| BRAND | Xecro |
| Product | FLH70T-PS-A8 |
| Description | Fork light barrier |
| Internal code | IMP4230505 |
| Weight | 0.1 |
| Technical specification | Series High Resolution Light Source LASER red λ=630 nm Tariff Code 85365019 Weight 0.0000 Functional Fork Opening 70 mm Laser Class 1 (EN 60825-1) Resolution 0.03 mm Repeatability 0.01 mm IO-Link® protocol 1.1 Output Function NO↔NC Output Polarity PNP Output Function Toggle 270° potentiometer Operating Voltage 10…35 VDC Reverse Polarity Protection built-in Current Consumption <40 mA Current Load Capability 200 mA Short Circuit Protection built-in, self-resetting Voltage Drop <1.2 V @ 200 mA Switching Frequency 5000 Hz Impulse Lengthening 20 ms selectable Power-On Delay <0.4 s Ambient Light Immunity >100 klux Operating Temperature -10…45 °C · 14…113 °F Contamination Indication by IO-Link Mechanical Sensitivity Adjustment Teach-in button Side-by-Side Mounting true Electric Connection connector M8 Pico Switching Indicator LED yellow Housing Material zinc die-cast, powder-coated IP Code IP67 Insulation Voltage 500 V |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Xecro - FLH70T-PS-A8 Fork light barrier number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

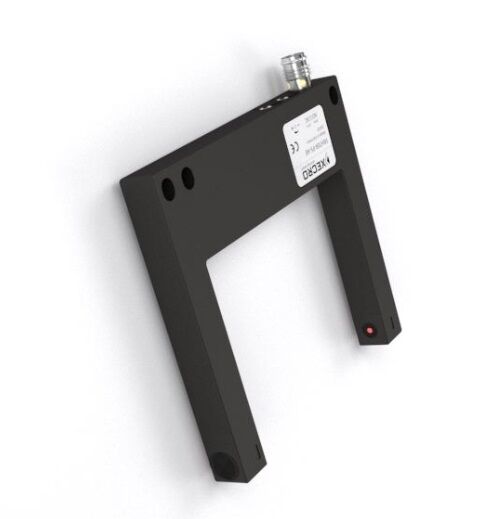

FLH70T-PS-A8.jpg |
