| BRAND | Xecro |
| Product | IPS18-N20PC79-A12 |

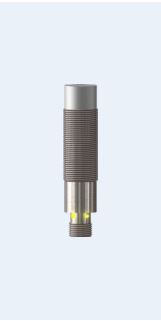

| Description | Inductive Proximity Switch |
| Internal code | IMP1301189 |
| Weight | 0.1 |
| Technical specification | Series 3-wire DC Sensing Distance Class extended Tariff Code 85365019 Weight 0.0000 Functional Sensing Distance 20 mm Mounting non-flush Output Function NC Output Polarity PNP Operating Voltage 10…30 VDC Reverse Polarity Protection built-in Current Consumption <8 mA Current Load Capability 200 mA Short Circuit Protection built-in, self-resetting Voltage Drop <1.5 V @ 200 mA Switching Frequency 100 Hz Repeatability <1 % (Sn) Hysteresis 3…15 % Reduction Factors Alu 0.45 · Brs 0.50 · SS 0.85 Operating Temperature -20…70 °C · -4…158 °F Mechanical Housing Material brass, nickel plated Housing Length 79 mm Max Mounting Torque 35 Nm Sensing Face Material PBT IP Code IP67 Electric Connection connector M12 Switching Indicator built-in |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Xecro - IPS18-N20PC79-A12 Inductive Proximity Switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
2022-11-22 14_46_12-data sheet.jpg |
