| BRAND | Soldo |
| Product | SB01201-2 (new code SB01201-20W01A2) |
| Description | SWITCH |
| Internal code | IMP3786266 |
| Weight | 1 |
| Custom code | 85365007 |

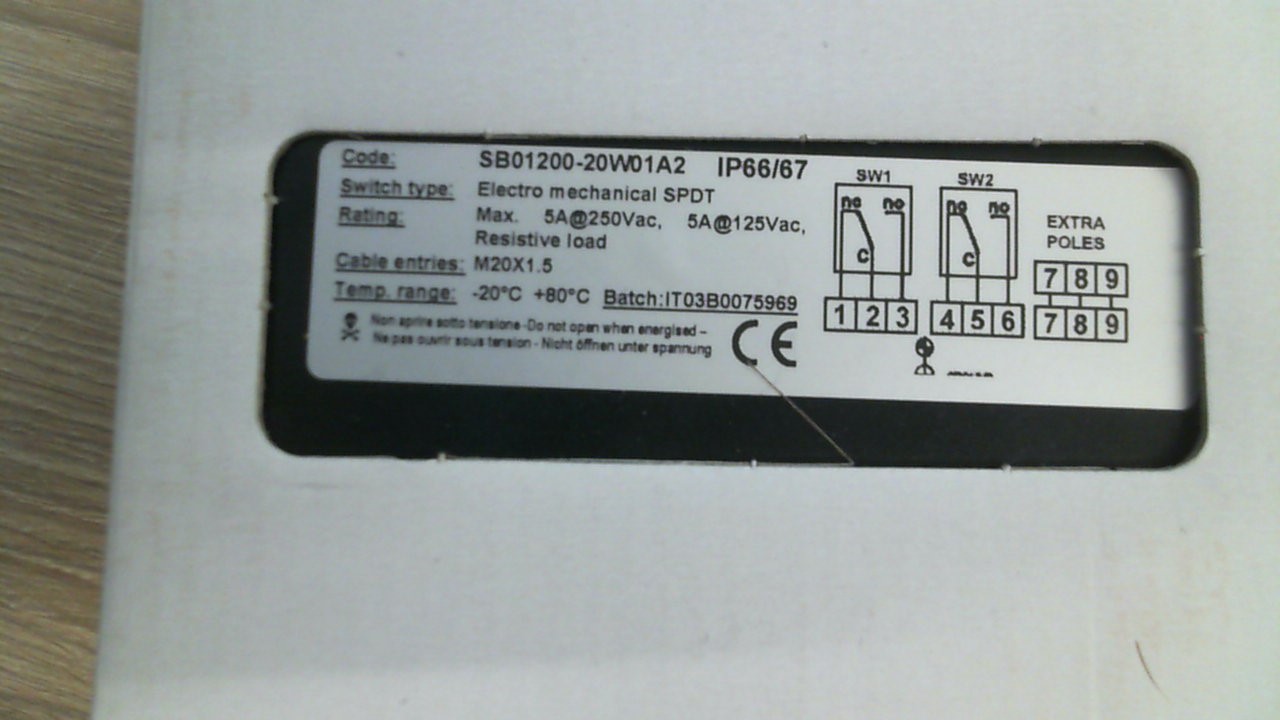

| Technical specification | 57263 The article code SB01201-2 has changed to: 57263 ELR.SO.SB01201-20W01A2 Limit switch series SB as follows: shaft made of stainless steel mounted on bearings, mounting type ISO F05 and shaft VDI / VDE3845, independently adjustable cams, electromechanical switches SPDT, silver-plated contacts, Nominal output max. 5A @ 250VAC, 0.6A @ 125VDC, 3A @ 24VDC, min. 50mA @ 24VDC (resistive load), 2 Switches / sensors as follows, screw terminal strips with Push-through magnetic poles, blue RAL5015 Polyester powder coating, 2x M20x1.5 Cable entries, UV-resistant and V0 self-extinguishing polycarbonate indicator dome, red and green optical position indicator, weatherproof Limit switch box, normal location, IP66 / IP67, Ambient temperature range: -20 ° C - + 80 ° C, more robust Aluminum body, impact-resistant and UV-resistant Polycarbonate cover |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Soldo - SB01201-2 (new code SB01201-20W01A2) SWITCH number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
