| BRAND | Vivoil Oleodinamica Vivolo |

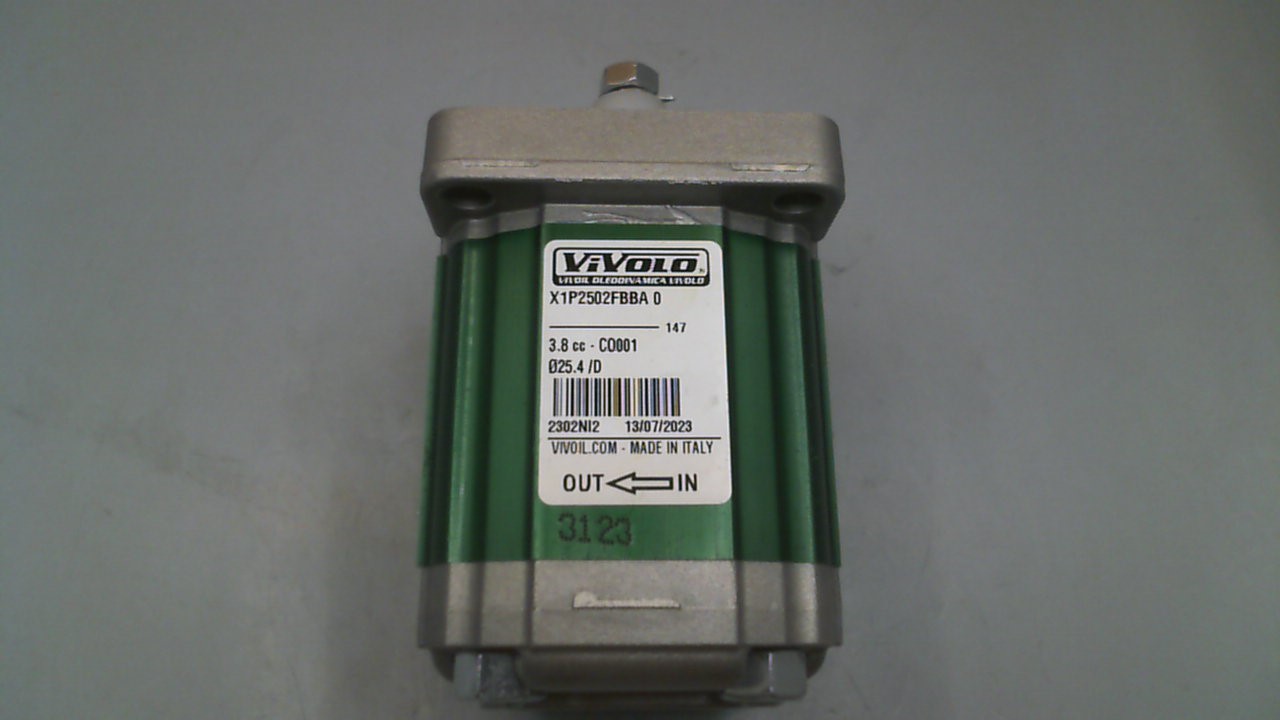

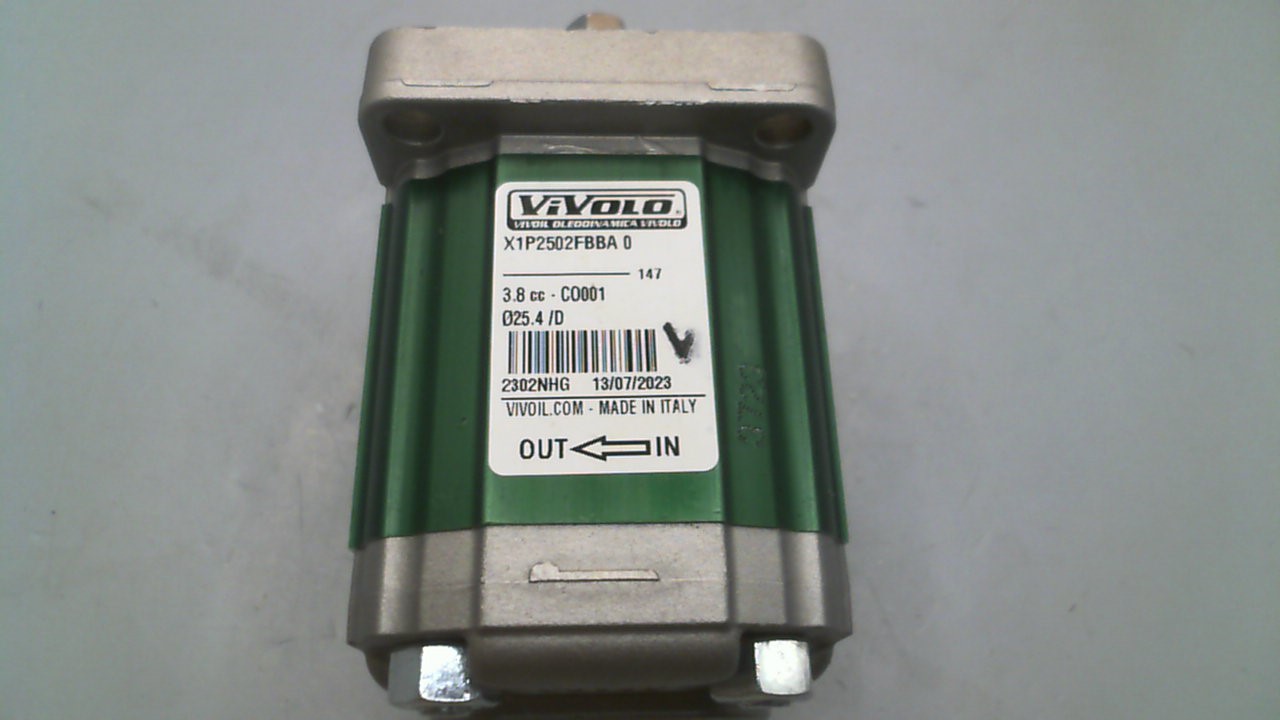

| Product | X1P2502FBBA |
| Description | external gear pump |
| Internal code | IMP2007705 |
| Weight | 1.12 |
| Custom code | 84136031 |
| Technical specification | Size 1 external gear pump with aluminum body and aluminum covers Delivery volume: 3.64 ccm/U Direction of rotation: clockwise Mounting flange: pass Ø 25.4 mm - 4 hole mounting 71.9 mm x 52.4 mm - Ø 7.15 mm Drive shaft: conical 1:8 - disc spring 2.4 mm Suction connection: G 3/8" Pressure connection: G 3/8" Installation length: 88.5 mm Sealing material: NBR Allowable shaft torque: 43 Nm Continuous pressure limited by drive shaft: 250 bar Continuous pressure: 250 bar Peak pressure (max 0.5 sec.): 300 bar Minimum speed: 700 rpm Maximum speed: 6000 rpm |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Vivoil Oleodinamica Vivolo - X1P2502FBBA external gear pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
