| BRAND | AC Motoren |

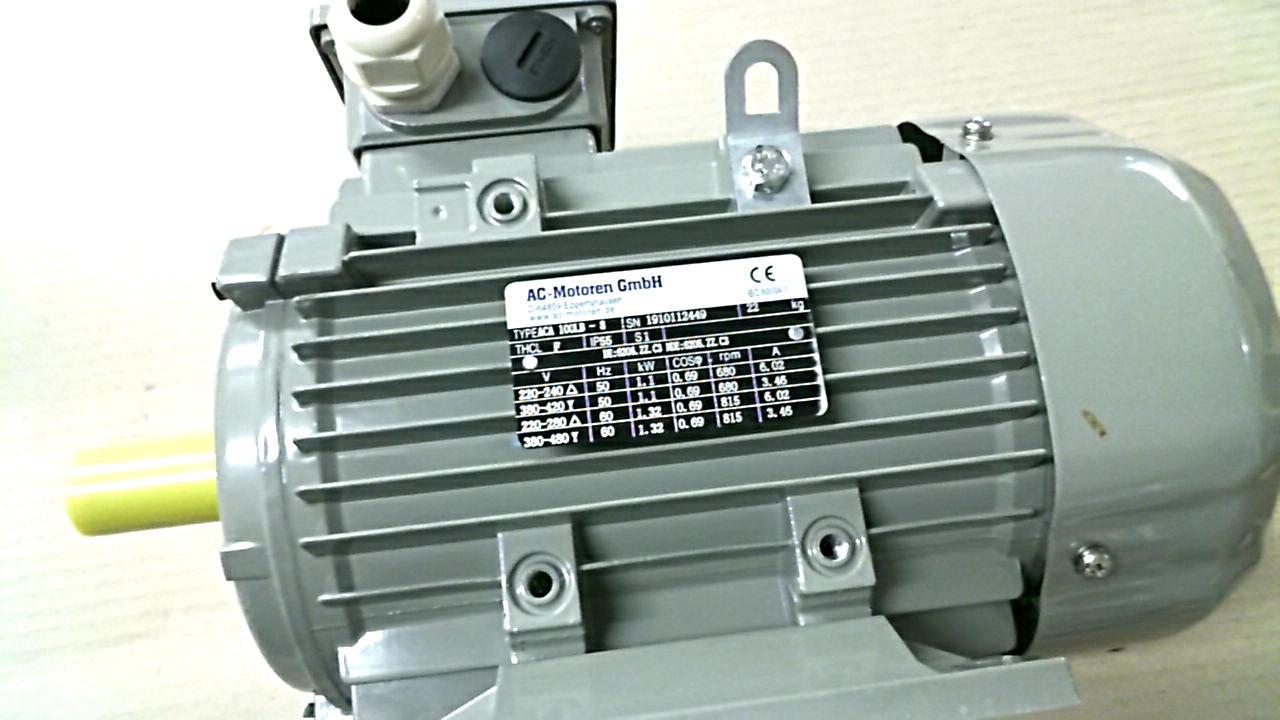

| Product | ACA 100 Lb-8 |
| Description | Motor |
| Internal code | IMP4033101 |
| Weight | 23 |
| Custom code | 85015220 |
| Technical specification | Motor AC three-phase motor Motor power: 1.10 KW / 50 Hz 1.32 KW / 60 HZ Number of motor poles: 8 Motor voltage: 3 x 230/400 V + - 10%, 50 Hz 3 x 265/460 V + - 10%, 60 Hz Motor speed: 700 min-1/50 Hz 840 min-1/60 Hz Rated motor current: 6.02 / 3.49 A / 50 Hz 6.28 / 3.64 A / 60 Hz cos phi: 0.69 Efficiency: 66.5% at 4/4 load Protection class: IP 55 Insulation class: F Design: foot design IM B3 Center height: 100 mm Foot hole spacing: 140 x 160 mm (L x W) Motor shaft: 28 m6 x 60 mm Terminal box position: above Coolant temperature: -20 to +40 ° C Installation altitude: less1000 m a. NN Color: RAL 7030 stone gray aluminum casing Additional equipment: without suitable for frequency control |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - ACA 100 Lb-8 Motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
