| BRAND | AC Motoren |
| Product | FCA 112 M-4 / PHE B5 400/690 |
| Description | AC three-phase asynchronous motor |
| Internal code | IMP4591410 |
| Weight | 45 |
| Custom code | 85015220 |
| Technical specification | Item.No. 106358 Motor power: 4.00 KW/S1 number of motor poles: 4 Motor voltage: 3 x 400/690 V +- 10%, 50 Hz 3 x 460 V +- 10%, 60 Hz Degree of protection: IP 55 Insulation class: F Motor speed: 1440 min-1 Rated motor current: 7.95/4.61 A Efficiency class: IE3 Efficiency: 88.6-88.6-86.8% at 100% - 75% -50% 50 Hz cos phi: 0.82 Design: IM B5 (flange version) (Please check!) Motor flange: IEC 112 B5 (flange diameter 250 mm) Motor shaft: 28 k6 x 60 mm Installation height: < = 1000 m above sea level Ambient temperature: -20 to +40 °C Paint: RAL 7030 terminal box location: xxxx |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCA 112 M-4 / PHE B5 400/690 AC three-phase asynchronous motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

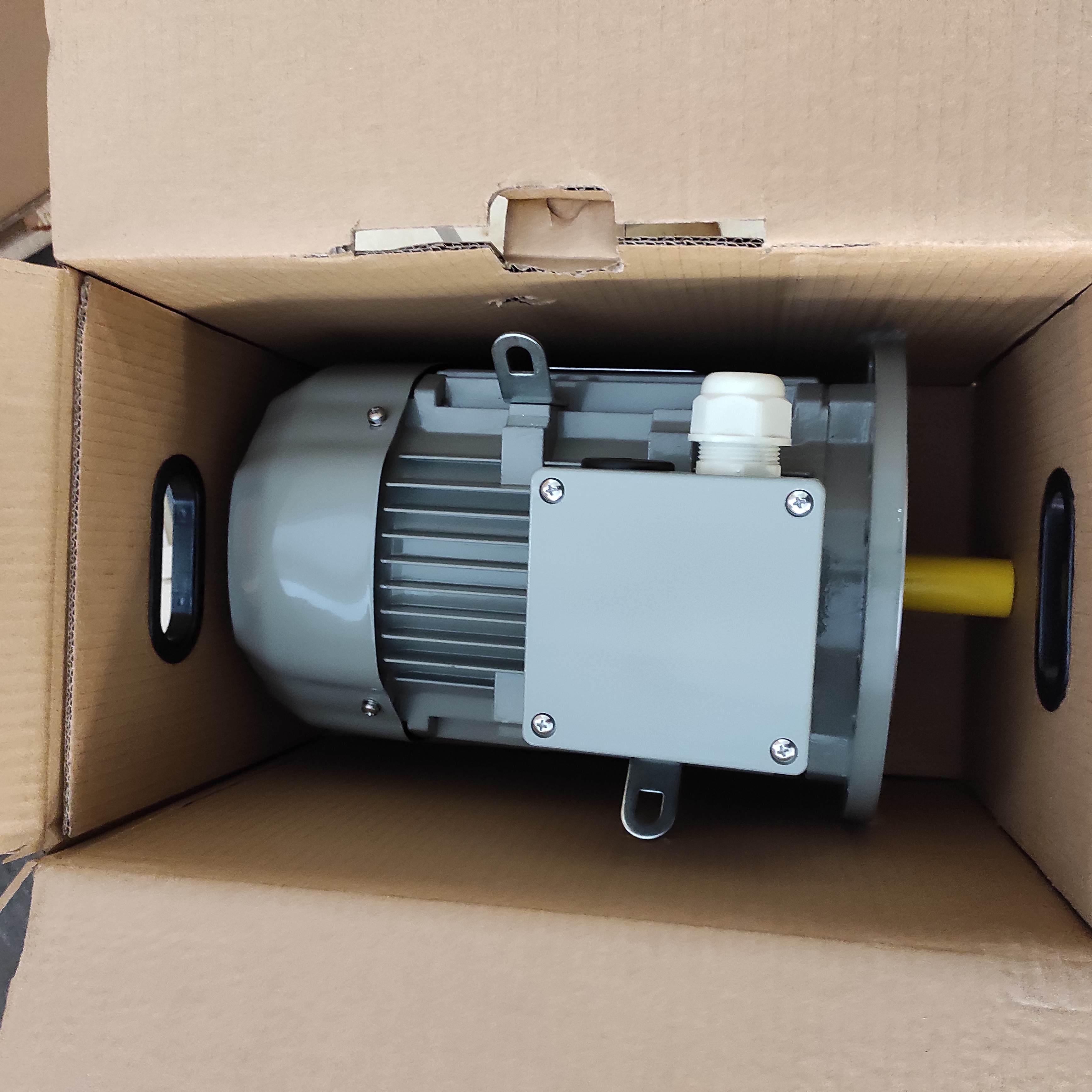

IMG_20220629_123907.jpg |
