| BRAND | AC Motoren |
| Product | ACA 160 MA-2 B5 / PHE |
| Description | three-phase asynchronous motor |
| Internal code | IMP4473900 |
| Weight | 150 |
| Custom code | 85015230 |
| Technical specification | 106336 Motor power:11.0 kW/50 Hz 13.2 kW/60 Hz Number of motor poles: 4 Motor voltage: 3 x 400/ 690 V +- 10%, 50 Hz 3 x 460/ 795 V+- 10%, 60 Hz Motor speed: 2945 rpm /50 Hz 3534 rpm /60 Hz Motor rated current: 19.56/11.34 A (50 Hz) 20.46/ 11.84 A (60 Hz) Efficiency class: IE3 Efficiency: 91.2 - 91.2 - 89.4% at 100 - 75 - 50% load cos phi: 0.89 Degree of protection: IP 55 Insulation class: F Design: IM B5 flange version Shaft end: 42 x 110 mm Terminal box location: top Coolant temperature: -20 to +40 °C Installation height: < 1000 m and sea level Coloring: RAL 7030 stone grey Additional equipment PTC 150°C |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - ACA 160 MA-2 B5 / PHE three-phase asynchronous motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

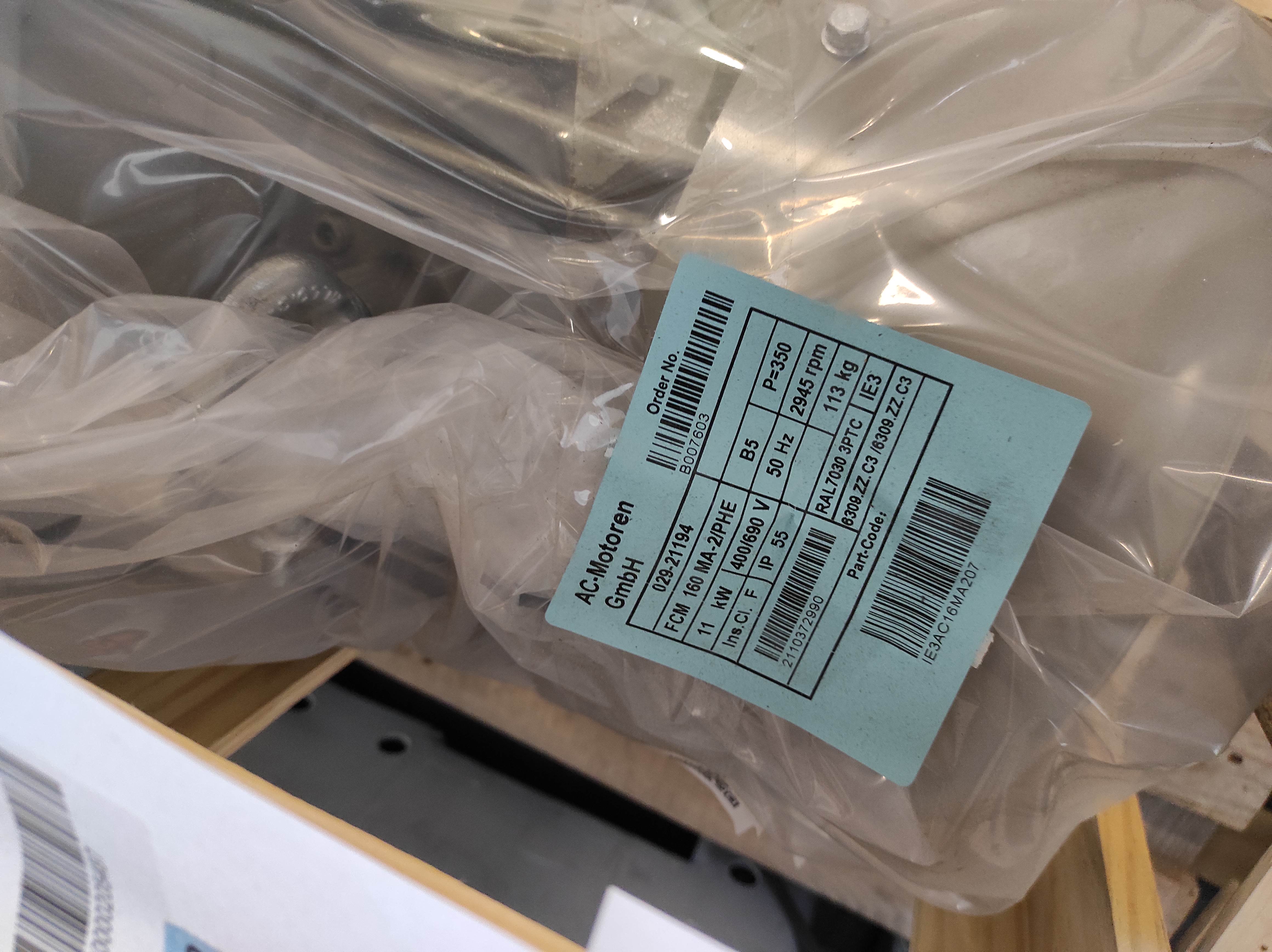

IMG_20220412_125040.jpg | |
|
|

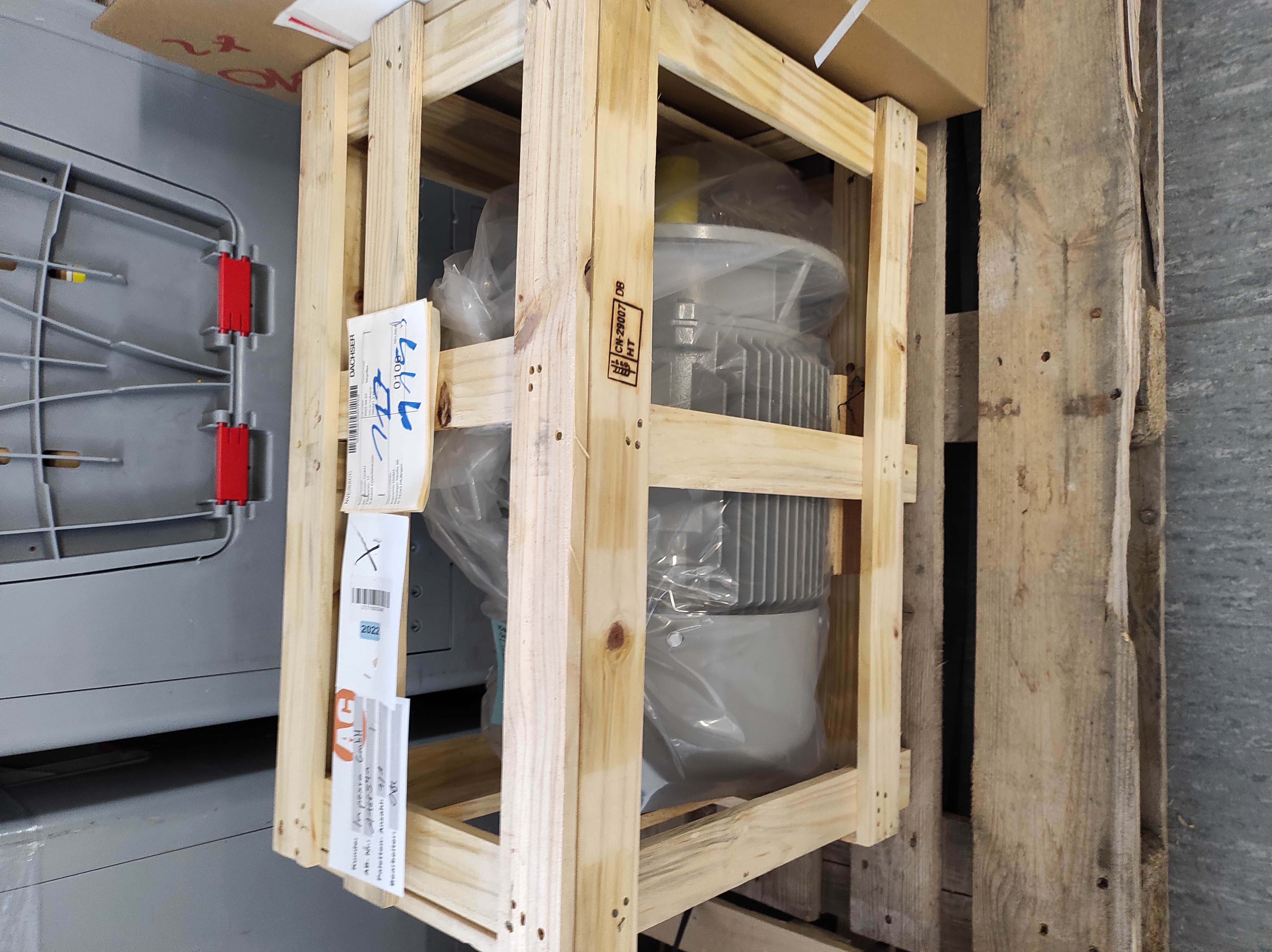

IMG_20220412_125044.jpg |
