| BRAND | AC Motoren |
| Product | ACM 160 L2 / PHE |
| Description | 1 IE3 three-phase motor |
| Internal code | IMP4547633 |
| Weight | 160 |
| Custom code | 85015230 |
| Technical specification | Motor power: 18.50 KW number of motor poles: 2 motor voltage: 3 x 400/690 V +- 10%, 50 Hz 3 x 460/795 V +- 10%, 60 Hz Motor speed: 2940/3528 RPM Rated motor current: 32.47/18.82 A cos phi: 0.89 Efficiency class: IE3 Efficiency: 92.4 - 92.4 - 90.6 & at 4/4 - 3/2 - 2/4 load Degree of protection: IP 55 Insulation class: F Weight:142kg Design: foot version IM B3 Motor shaft: 42 m6 x 110 mm terminal box location: top Coolant temperature: -20 to +40 °C Installation height: < 1000 m above sea level Colour: RAL 7030 stone grey cast iron housing Customs tariff number 85015230 Additional equipment: 3 built-in PTC sensors suitable for frequency control further technical data and dimensions according to the catalog |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - ACM 160 L2 / PHE 1 IE3 three-phase motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

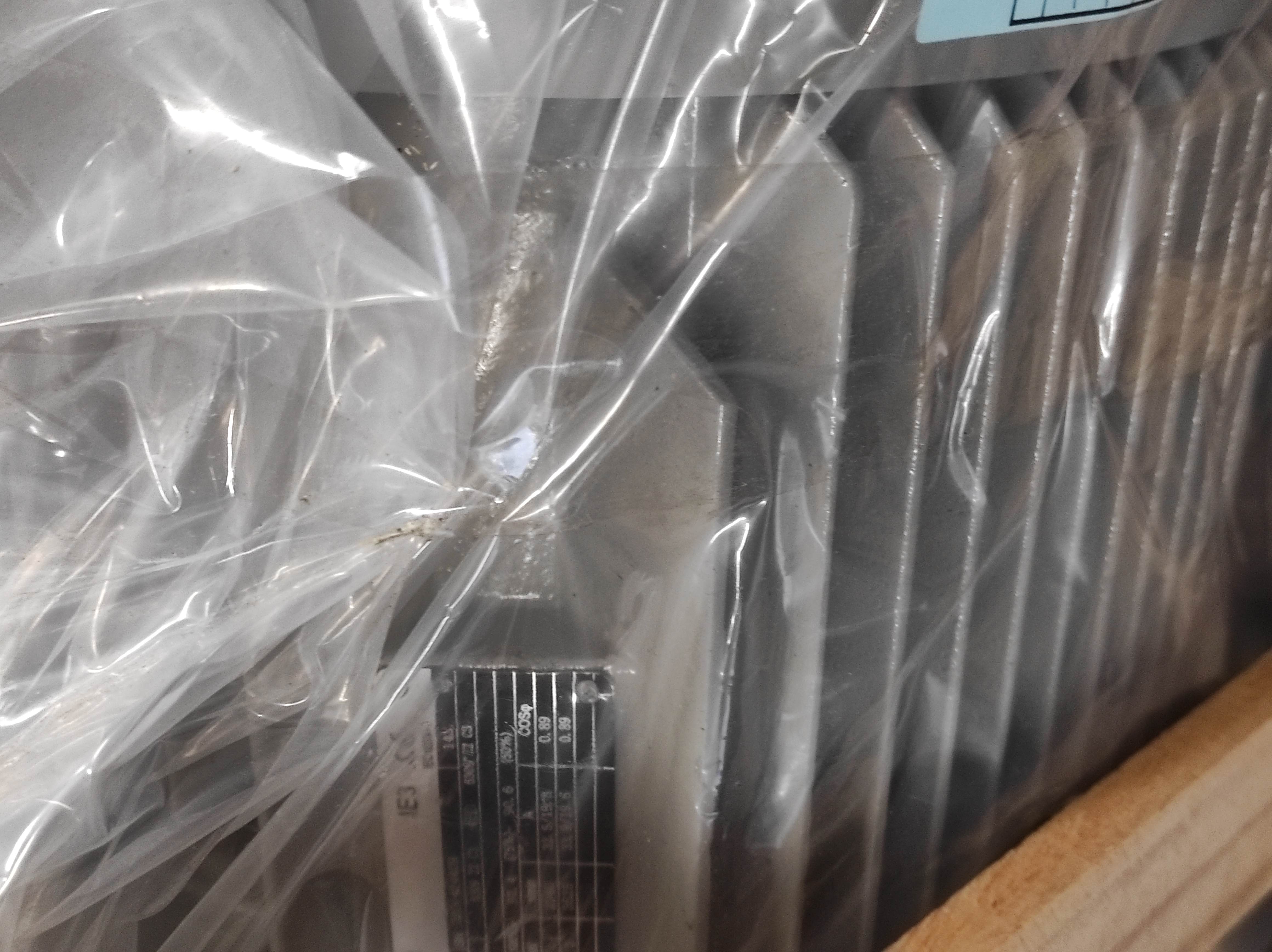

IMG_20220711_133712.jpg | |
|
|

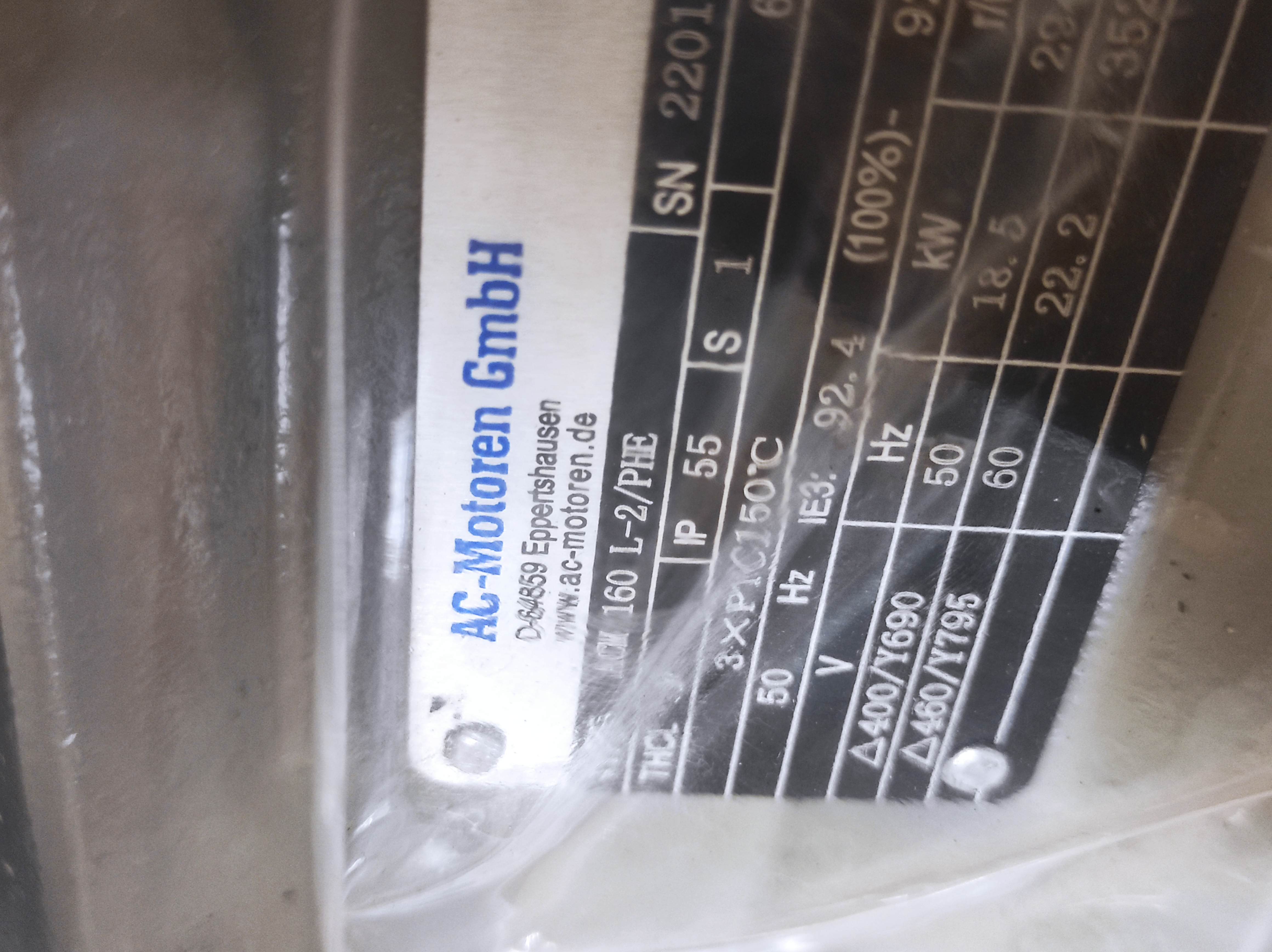

IMG_20220711_133718.jpg | |
|
|

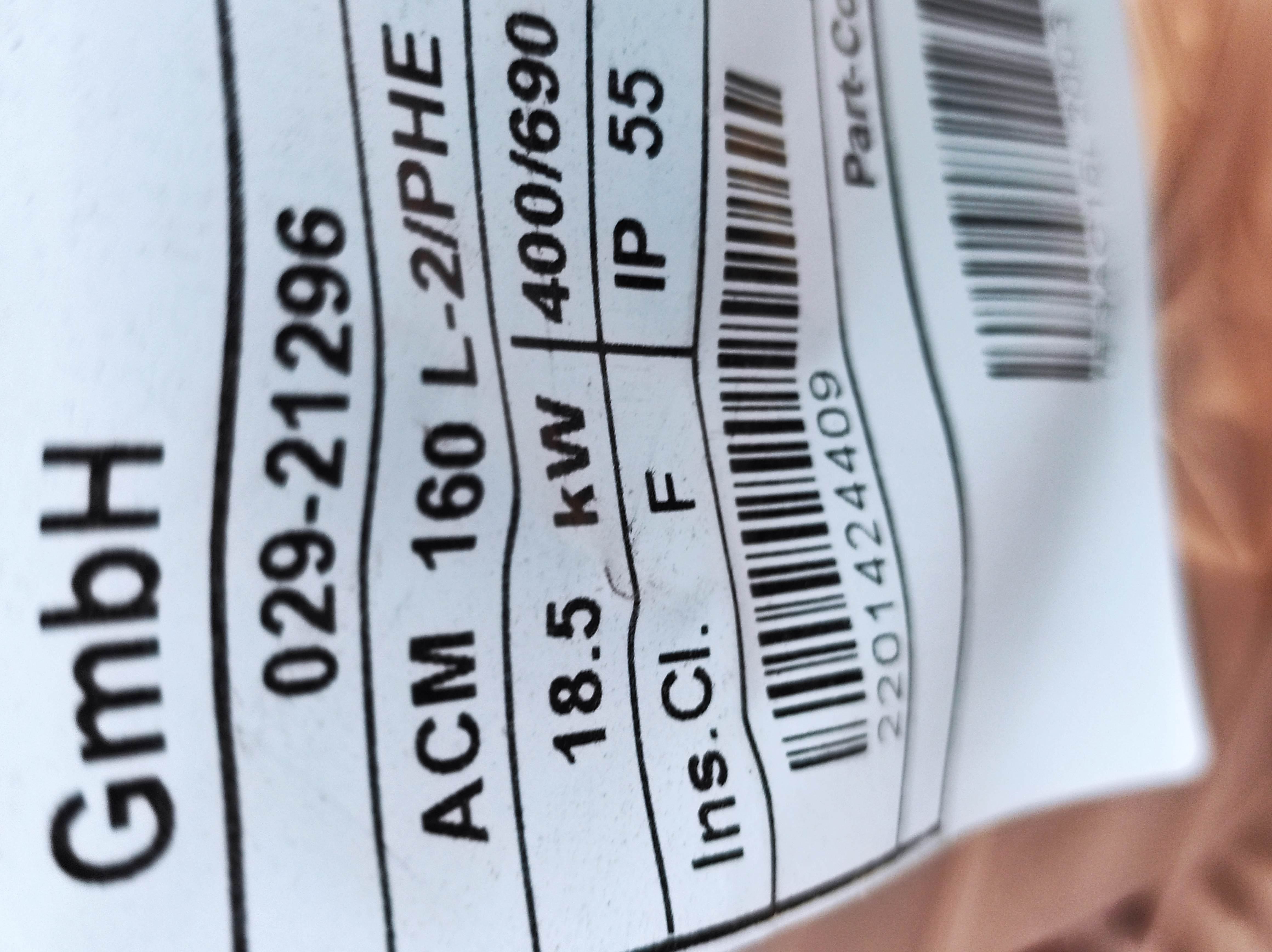

IMG_20220711_133731.jpg |
