| BRAND | Ados |
| Product | ADOX 592 TOX CO same as ADOS 592 TOX CO |

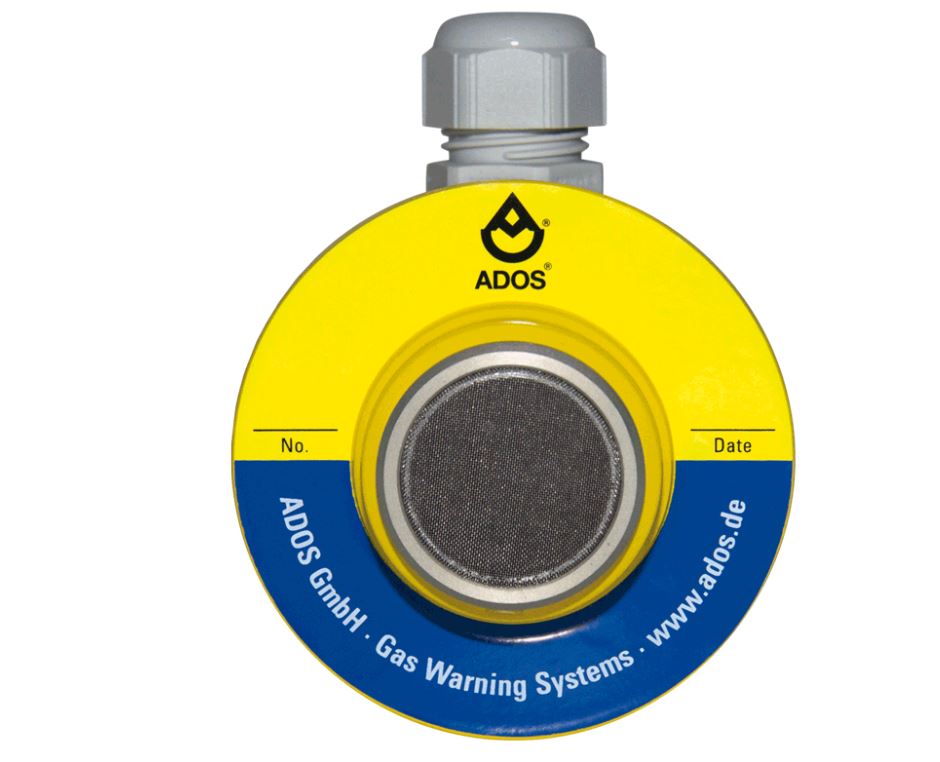

| Description | Sensor for Measuring the Concentration of Toxic Gases |
| Internal code | IMP1183570 |
| Weight | 0.6 |
| Technical specification | Measuring principle: Electro-chemical reaction Measurable substance: Carbon monoxide Measuring ranges: 0–150 ppm, 0–300 ppm -> Other ranges on request Zero error: < 10 ppm CO Reading instability: < 3 ppm CO Accuracy: ± 3 % of f.s.d Zero drift: < 2 % per year Repeatability: < 2 % per year Linearity: < 2 % of f.s.d Response time (t90): < 60 sec. Cross sensitivity: < 2 % with integrated filter Interface: 2-wire current interface 4–20 mA or LON® four-wire techniques, galvanically isolated, data transmission 78 kbps Supply voltage: 15 V–30 V, dependent on maximum load 100 ohm–500 ohm Ambient temperature: - 10°C to 40°C, with sensor temperature compensation Humidity range: 10–99 %, non-condensing Serviceable life of cell: Approx. 2 years Sensor dimensions: Diameter 80 mm, Height 80 mm Test certificate: To German standards, according to VDI 2053 in conjunction with ADOS MULTITRONIK 592 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Ados - ADOX 592 TOX CO same as ADOS 592 TOX CO Sensor for Measuring the Concentration of Toxic Gases number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
