| BRAND | Autosen |
| Product | AF003 |

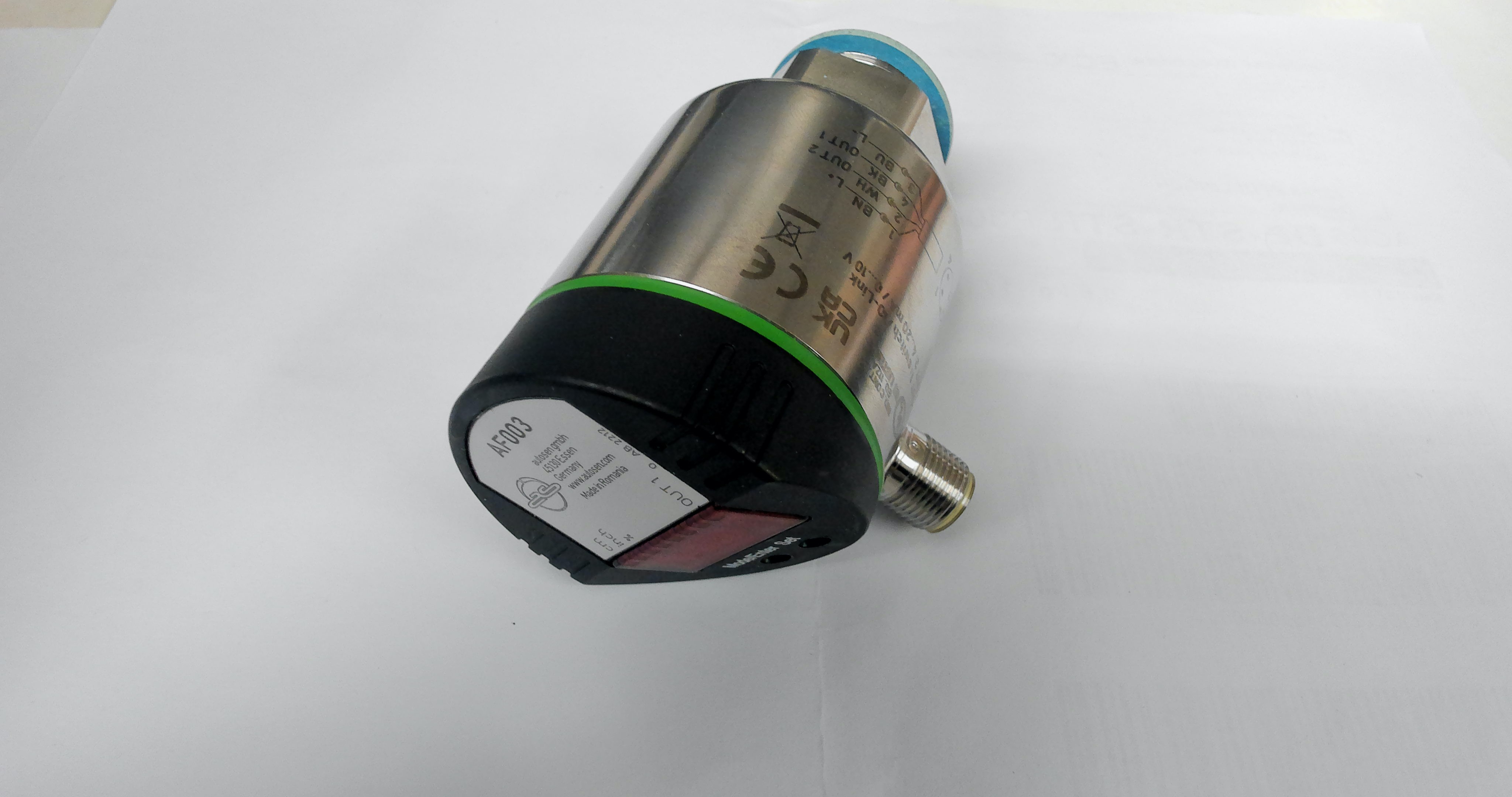

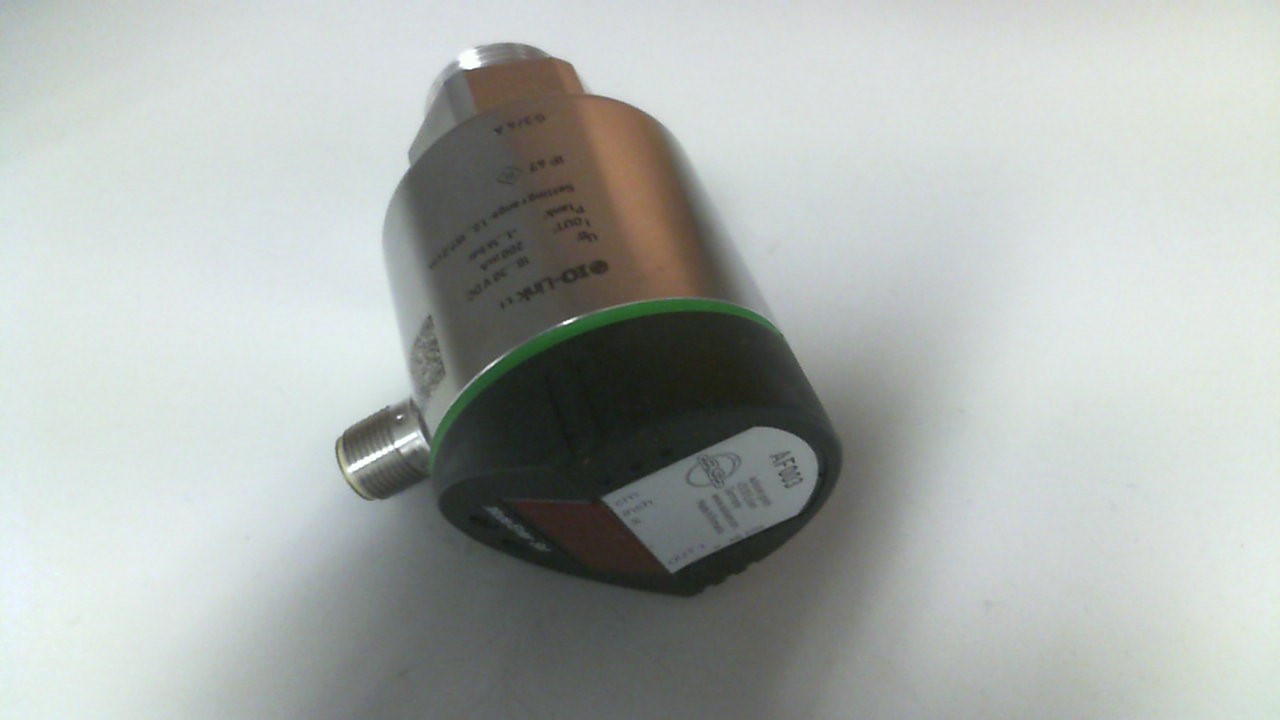

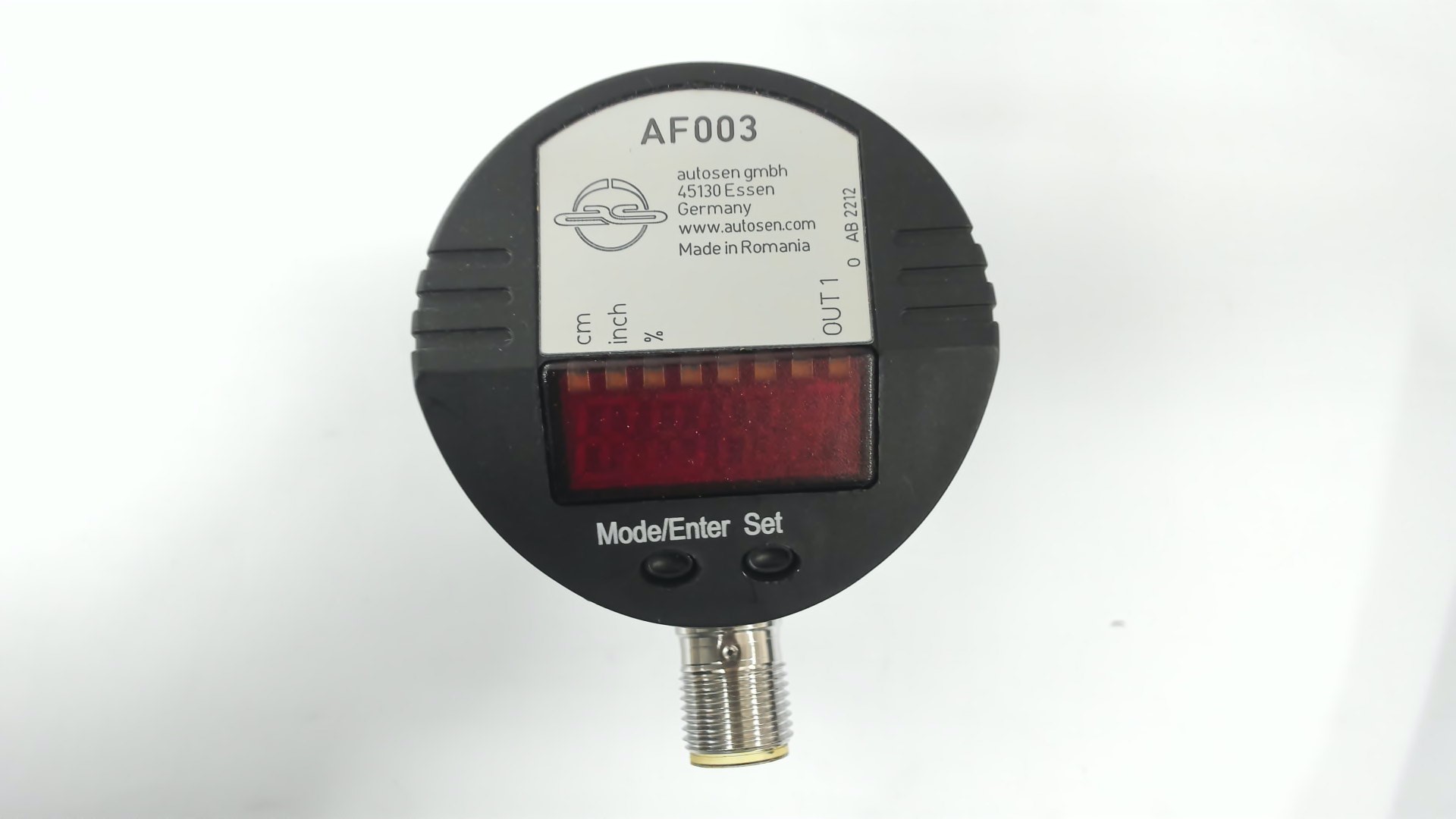

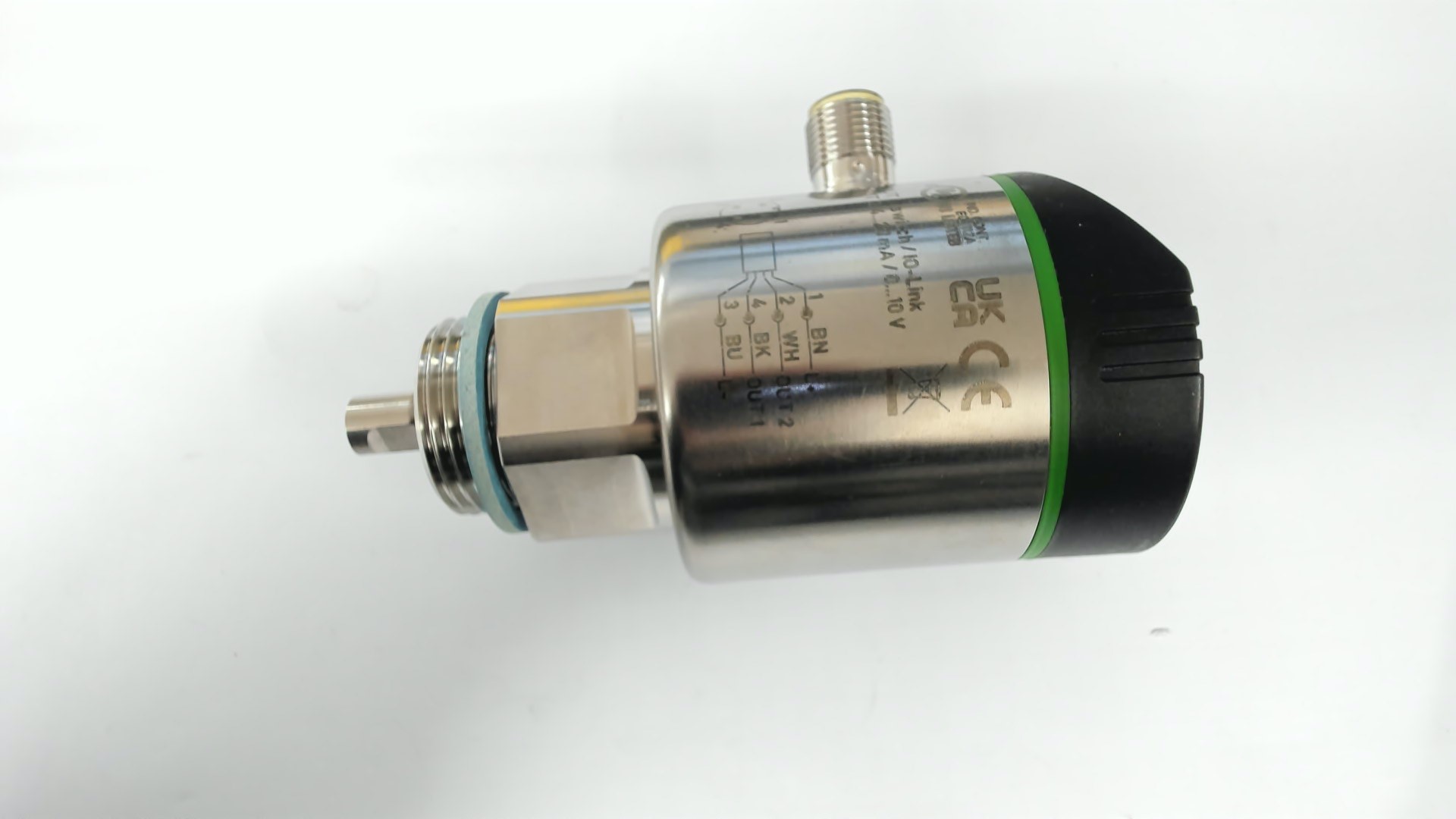

| Description | Electronic level sensor |
| Internal code | IMP4473364 |
| Weight | 0.3 |
| Custom code | 90261029 |
| Technical specification | G3/4M 100 ... 1600 mm Range of applicationWater-based cooling lubricants, oils, water / media similar to water Cannot be used for:Greases; granulates; bulk materials; acids; alkaline solutions; heavily foaming media Dielectric constant of medium> 2; (for media with DK 2...20 (oils), a coaxial tube is required for operation) Sensor typeGuided microwave Outputs / inputs Switching outputNormally open / Normally closed programmable Analogue output4 ... 20 mA 0 ... 10 V Programmable Scalable Comment on analogue outputWhen used with an analog output use exclusively sensor cables without LED IO-LinkYes Electrical data Operating voltage18 ... 30 V DC Voltage typeDirect voltage (DC) Electrical designPNP Current carrying capacity max.200 mA Voltage drop max.2.5 V Current consumption max.80 mA Protection classIII Short-circuit protectionYes Overload-proofYes Reverse polarity protectionYes Ready delay3 s Mechanical data Active range AL-40 (L-60); (with setting for oil and oil-based media) Materials in contact with the mediumV4A (1.4404) V4A (1.4435) Seal: Tesnit FKM PTFE Material of housingPEI PBT V2A (1.4305) FKM PTFE TPE / V PC Electrical connectionM12 4-pin Contacts gold-plated Process connectionExternal thread G 3/4 Probe length L100 ... 1600 mm Comment(See accessories) Accuracy Resolution± 10 mm Switching point accuracy± 20 mm Ambient conditions Ambient temperature min.0 °C Ambient temperature max.60 °C Maximum container pressure-1...16 bar Medium temperature0 ... 80 °C; (90 °C < 1 h) °C Protection ratingIP67 Additional information MTTF174 years Function display4 x LED Display Yellow Green Programming keys 4-digit display Accessories included with deliverySeal EMC testIEC 60947-1 Shock resistance testDIN IEC 68-2-27 Vibration resistance testDIN IEC 68-2-6 ApprovalCE cULus |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Autosen - AF003 Electronic level sensor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
