| BRAND | Thermokon |

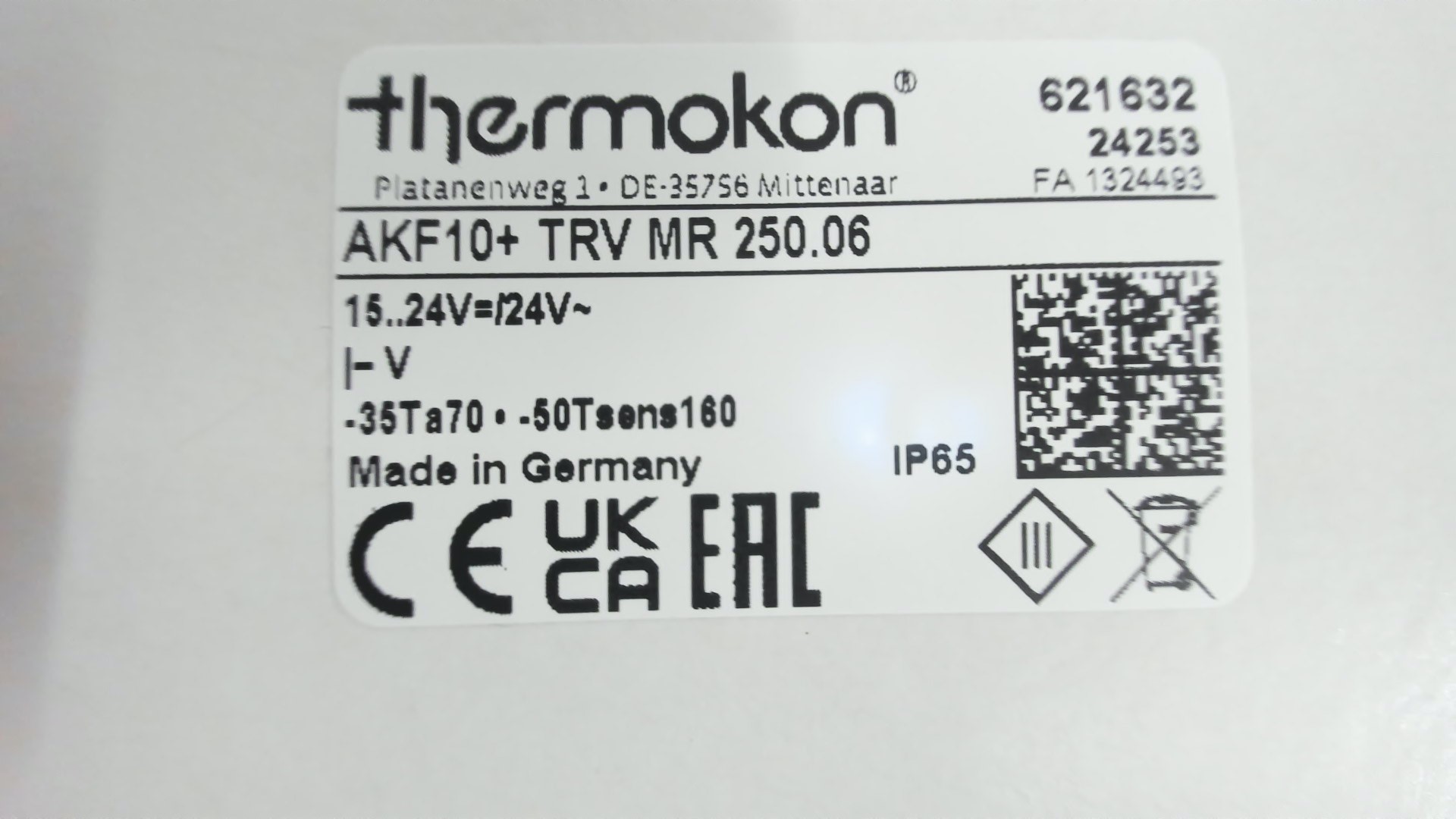

| Product | AKF10+ TRV MR 250.06 |
| Internal code | IMP4978449 |
| Weight | 0.1 |
| Custom code | 90251900 |
| Technical specification | 621632 AKF10+ TRV MultiRange 250.06 Channel/immersion sensor -50.. +160 °C — 0.. 5 V, 0.. 10 V 8 measurement ranges can be set on the transmitter (standard: 0.. +160 °C) Operating temperature range: housing -35.. +70 °C, sensor sleeve -50.. +160 °C Measurement insert with SI protection to protect against moisture and vibrations output: 0.. 10 V = Voltage supply: 15.. 24 V = (± 10%) or 24 V ~ (± 10%) Acid-resistant stainless steel sensor sleeve for aggressive media Ø=6 mm, installation length 250 mm, V4A USE-S impact and shatterproof housing with hinged cover (PC, pure white, IP65), 63x68x40 (LxWxH) Removable cable entry (M20 flex, replaceable) and removable plug terminal (max. 2.5 mm²) incl. mounting clip and mounting screws |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Thermokon - AKF10+ TRV MR 250.06 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
