| BRAND | Moeller (Eaton) |
| Product | ATO-HTLS-ARL |
| Description | High Temperature Limit Switch with Adjustable Roller Lever |
| Internal code | IMP4937693 |
| Weight | 0.258 |
| Technical specification | Adjustable radius of roller lever 25-89mm Rated voltage 220VAC (Customizable rated voltage is shown in the reference table below.) Rated current 5A (Customizable rated current is shown in the reference table below.) Contact type 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4) Operating speed 1mm/s~2m/s Operating frequency Machinery: 120 times/minute Electric: 30 times/minute Contact resistance ＜15MΩ, initial stage Insulation resistance ＞100MΩ (＜500VDC) Withstand voltage Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute Vibration Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude Bottom terminal thread size M20*1.5mm Impact Mechanical endurance: ＞1000m/s2 (＞100G) Misoperation endurance: ＞300m/s2 (＞30G) Shell material Cast aluminum alloy Temperature -10~+350℃ (14~622℉) Humidity ＜95%RH Working life Machinery: ＞15million times Electric: ＞0.5million times Protection class IP66 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Moeller (Eaton) - ATO-HTLS-ARL High Temperature Limit Switch with Adjustable Roller Lever number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

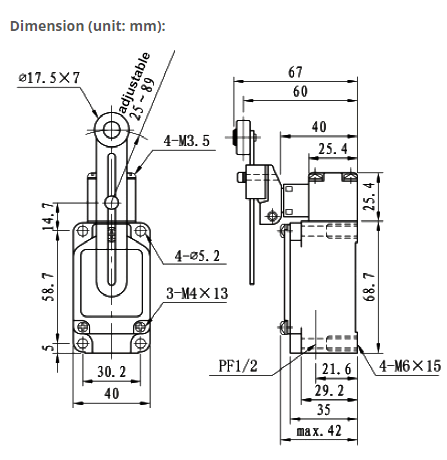

Screenshot_11.png |
