| BRAND | B-COMMAND |
| Product | BET016 |
| Internal code | IMP5134417 |
| Weight | 0.2 |
| Technical specification | <p>Electrical specifications:<br>Number of contacts: 4 x 1NC, potential-free, NC contacts forcibly opening<br>Type of contacts: silent switch, silver alloy, self-cleaning<br>Rated operating voltage: 400V AC</p><p>Rated insulation voltage: 500V AC<br>Rated operating current: 4A (400V AC)<br>Rated thermal current: 10A<br>Connections: 2x1.5 mm² or 1x2.5 mm², screw connection<br>Mechanical specifications:<br>Number of positions: 5 (no end stop)<br>Housing material: glass-reinforced thermoplastic<br>Protection class: IP66 (IP67)<br>Operating temperature: -40°C... +80°C<br>Starting speed: 3m/s max. cable entries: 3 x M20x1.5 openings, incl. 2 x sealing cap<br>and 1 x cable connector<br>Rods: 2 x 200mm (aluminum), including zero point marking<br></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for B-COMMAND - BET016 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

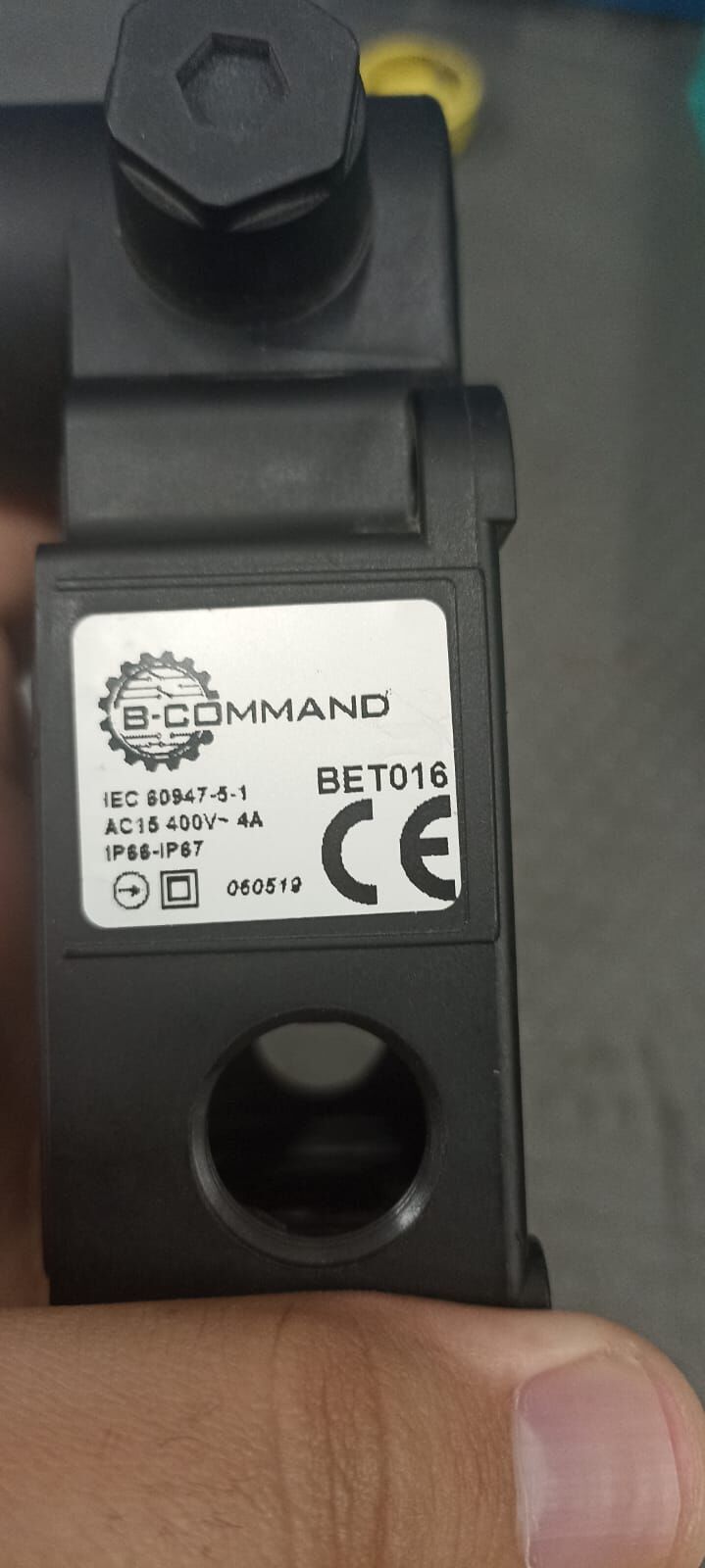

BET0016.jpg |
