| BRAND | TR Electronic |
| Product | CDH75M-00013 |
| Internal code | IMP4832481 |
| Weight | 1.11 |
| Custom code | 90318020 |

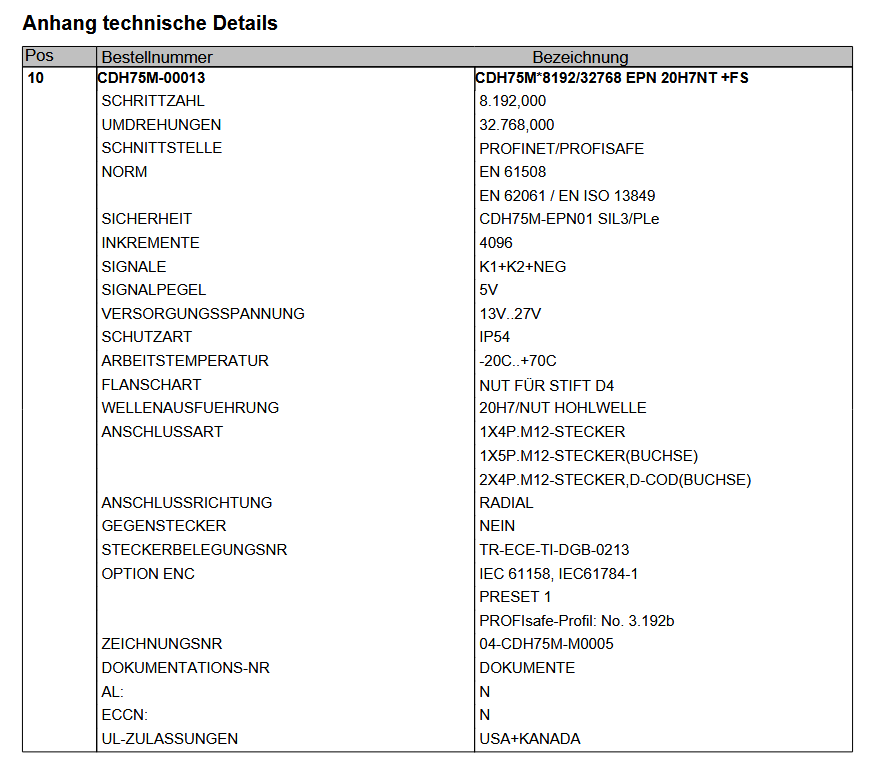

| Technical specification | CDH75M-00013 Absolute encoder CDH75M*8192/32768 EPN 20H7NT +FS Total weight 1.110 kg Statistical product number: 90318020 Country of origin: GERMANY Region of origin: Baden-Württemberg AL:N ECCN:N Technical details appendix Order number description CDH75M-00013 CDH75M*8192/32768 EPN 20H7NT +FS STEP COUNT 8,192,000 REVOLUTIONS 32,768,000 PROFINET/PROFISAFE INTERFACE EN 61508 STANDARD EN 62061/EN ISO 13849 CDH75M-EPN01 SIL3/ple SAFETY INCREMENTS 4096 SIGNALS K1+K2+NEG SIGNAL LEVEL 5V SUPPLY VOLTAGE 13V.. 27V PROTECTION CLASS IP54 WORKING TEMPERATURE -20C.. +70C FLANGE TYPE GROOVE FOR PIN D4 SHAFT DESIGN 20H7/GROOVE HOLLOW SHAFT CONNECTION TYPE 1X4P.M12 PLUG 1 X 5P.M12 PLUG (SOCKET) 2X4P.M12 PLUG, D-COD (SOCKET) RADIAL CONNECTION DIRECTION MATCHING PLUG NO PIN ASSIGNMENT NUMBER TR-ECE-TI-DGB-0213 OPTION ENC IEC 61158, IEC61784-1 PRESET 1 PROFIsafe profile: No. 3.192b DRAWING NO. 04-CDH75M-M0005 DOCUMENTATION NO. DOCUMENTS AL: N ECCN: N UL APPROVALS USA+CANADA |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for TR Electronic - CDH75M-00013 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
