| BRAND | C.E. srl |
| Product | CFIB- 2- ME.IP - V3.T - ET- 0- 0Y |
| Description | LSbox |
| Internal code | IMP5121640 |
| Weight | 2 |
| Custom code | 903300 |

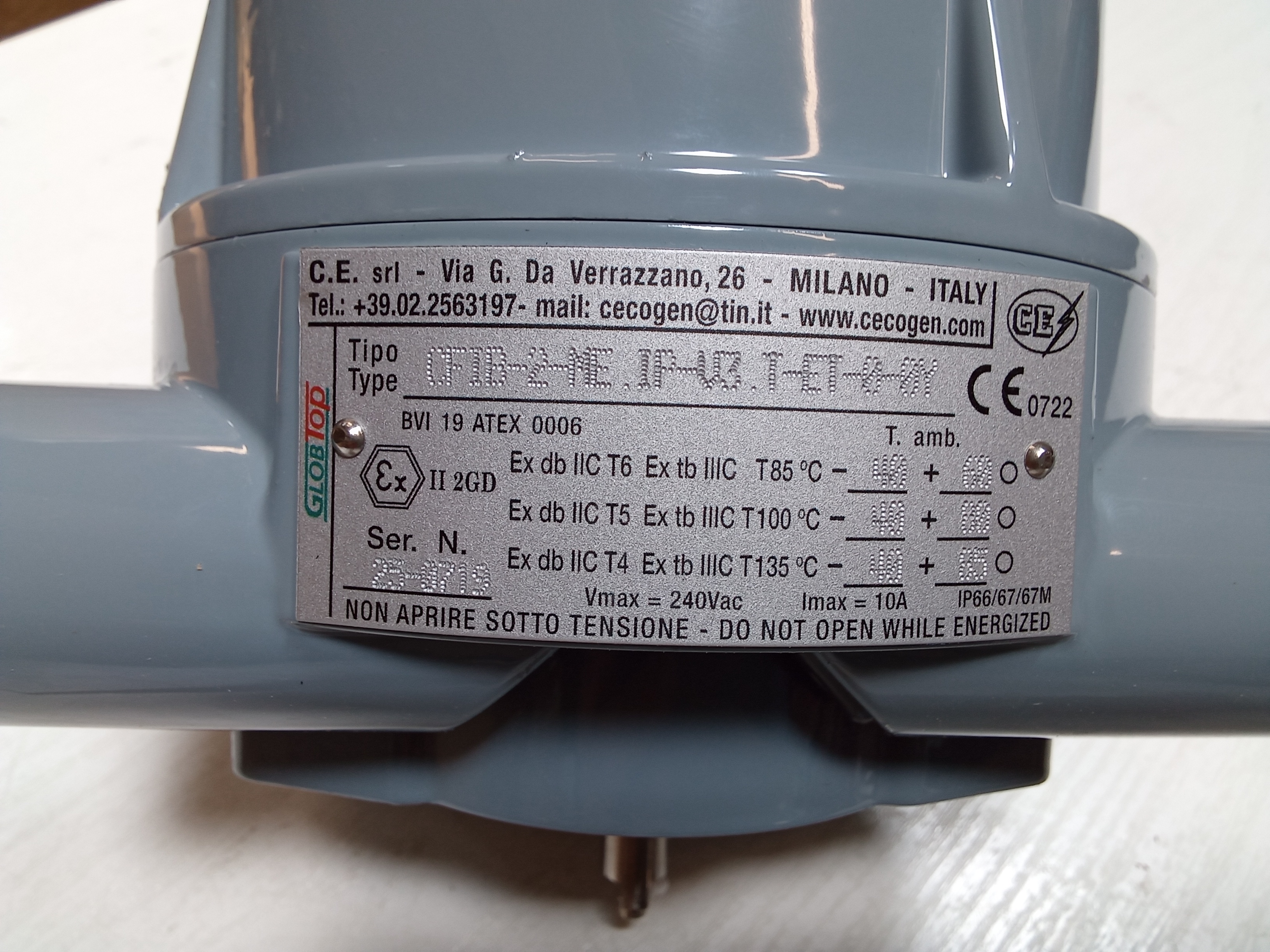

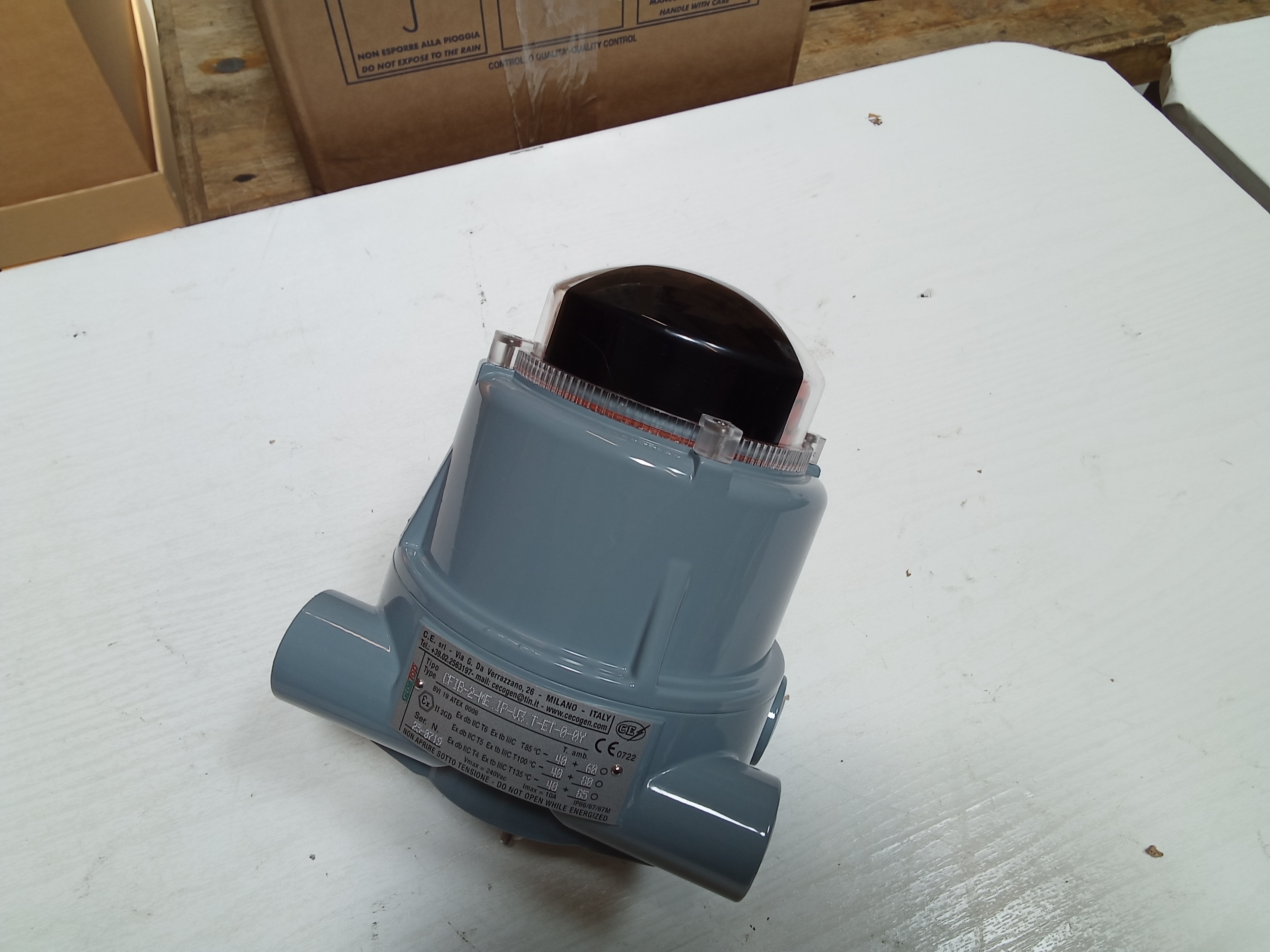

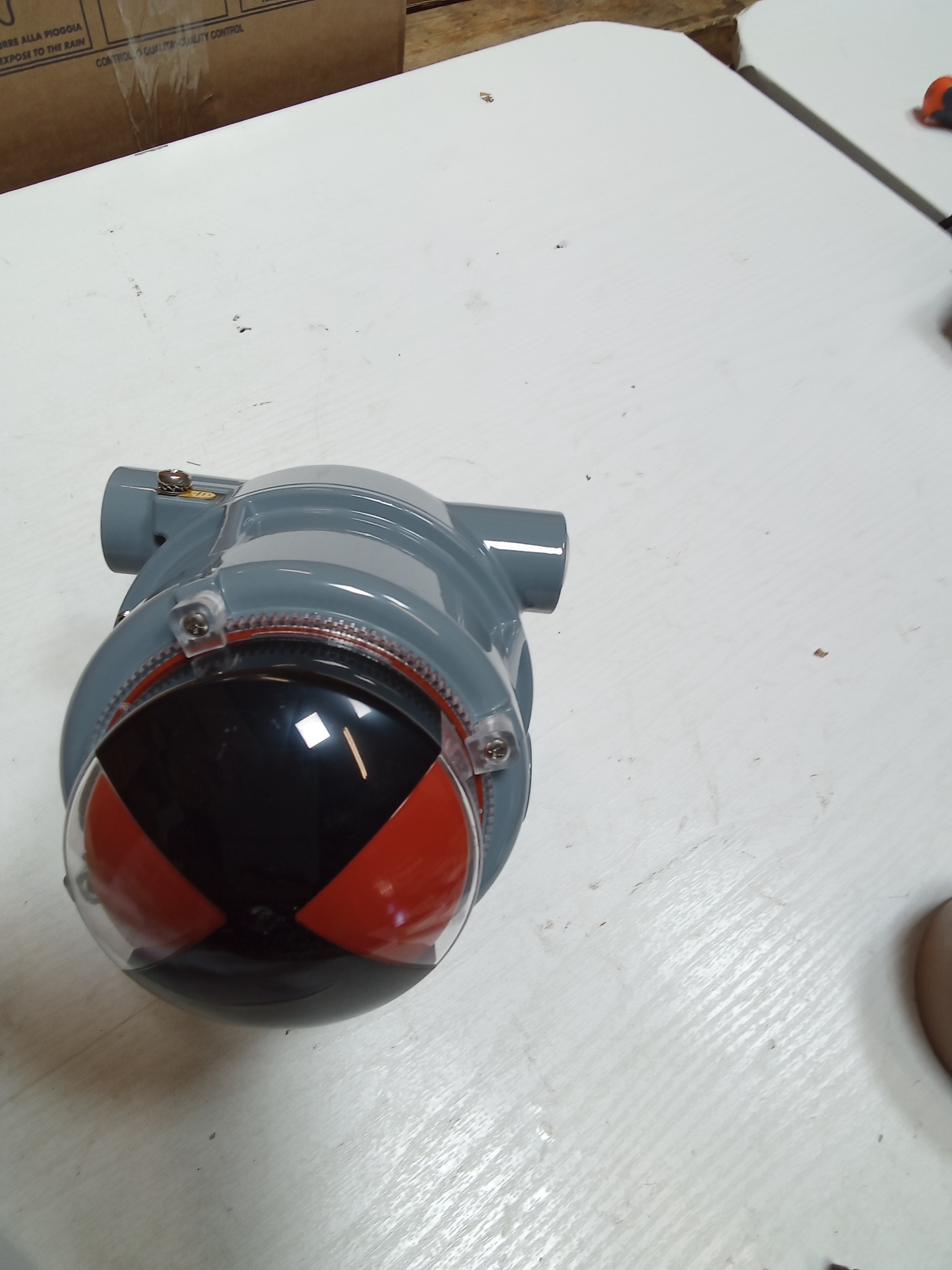

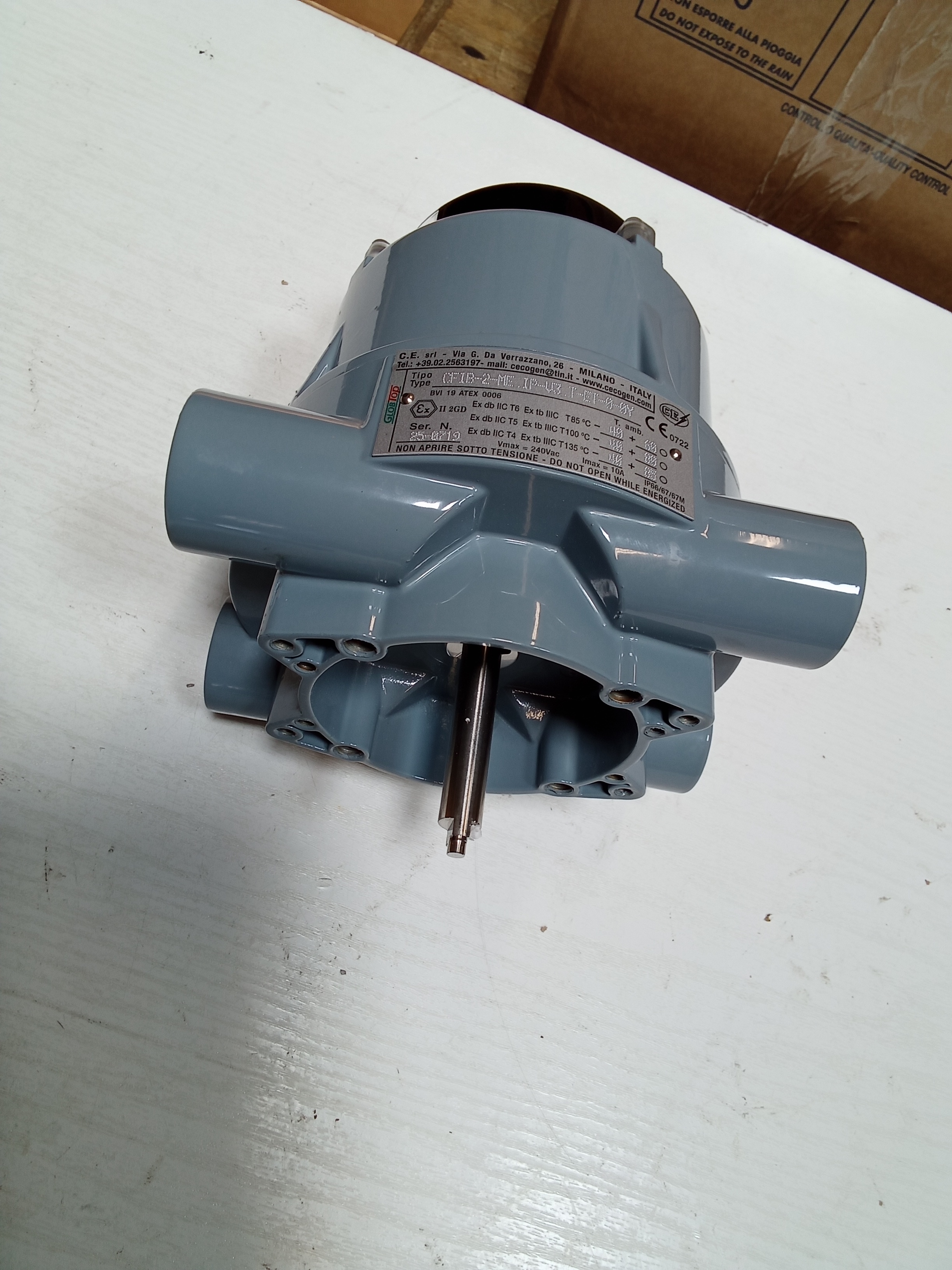

| Technical specification | <p><br><span><strong>ATEX</strong></span><span>(BVI) 19 ATEX 0006)</span><span><strong>:</strong></span> </p> <p> <span>Ex II 2 GD — Ex db IIC T6/T5/T4</span><span>Ex Tb IIIC IP66/67 T85/T100/T135°C</span><span>(It's also.</span>since -40°C to +60/+80/+80°C)</p> <p> - <strong>Entrance cables:</strong>No. 3 holes of M20x1,5F</p> <p> - <strong>Terminal block :</strong>8 terminals plus ground connection (option 12 terminals)</p> <p> - <strong>Degree of protection</strong>: IP66/67</p> <p> - <strong>Treatment superficial:</strong>Chromatation (compliant All MIL5541 Class 1A) + polyester paint ( RAL7000)</p> <p>( maximum resistance to chemical and atmospheric agents)</p> <p> - <strong>Indicator of position:</strong>three-dimensional dome red-green color</p> <p> - <strong>Alberino :</strong>namur coupling — 316 stainless steel material</p> <p><br> </p> <p>In each case will be mounted<strong>n. 2 mechanical limit switches and 1 transmitter 4÷20mA</strong></p> <p><strong>unto microprocessor</strong>with the following characteristics:</p> <p> <br></p> <ul> <li><p> <em><strong>Transmitter</strong></em></p> </li></ul> <p> <br> </p> <p> <em><strong>- Tension power supply:</strong></em>10÷28.8 Vdc</p> <p> <em><strong>- Current nominal deliverable:</strong></em>4÷20 mA (for maximum range of variation; see diagnostic tab.1)</p> <p> <em><strong>- Resolution in current:</strong></em><em> ± </em>4 µA (0.09° out of 360°) and<em>± </em>15 µA (0.09° over 90°)</p> <p> <em><strong>- Accuracy of calibration:</strong></em><em>± </em>0.2% F.S.</p> <p> <em><strong>- Linearity:</strong></em><em> ± </em>0.5% F.S. + potentiometer linearity</p> <p> <em><strong>- Hysteresis:</strong></em>nought</p> <p> <em><strong>- Repetitiveness:</strong></em>peer At the resolution of the potentiometer</p> <p> <em><strong>- Span minimum/maximum:</strong></em>20° /330° assuming a maximum rotation of 360°.</p> <p> <em><strong>- Ohmic value of potentiometer:</strong></em>10 kΩ<title></title> </p><p> <i><b>Feeding the potentiometer:</b></i>2.5 Vdc (reference voltage internal to the board)</p> <p> <i><b>- Range of temperature</b></i><b>: </b>-40°C ÷ +85°C</p> <p> <i><b>- Coefficient of temperature</b></i><b>: </b>2.5 µA/°C</p> <p> <i><b>- Camping</b></i><i>(63%) of the instantaneous variation of the signal from 4 to 20mA)</i><i><b>:</b></i><i>1.2 sec (default)</i> </p> <p> <br> </p> <p> <br> </p> <ul> <li><p><i><b>Potentiometer</b></i></p> </li></ul> <p> <br> </p> <p> <i><b>- Potentiometer of resistive type from 0 ÷ 10KΩ to conductive plastic element</b></i> </p> <p>(Specific model for the position transducer function)</p> <p> <i><b>- Linearity potentiometer:</b></i>≤± 0.5% maximum</p> <p> <i><b>- Resolution:</b></i>Practically infinite</p> <p> <i><b>- Power absorbed:</b></i>1W at 70°C</p> <p> <i><b>- Temperature of work:</b></i>- 40°C ÷ + 125°C</p> <p> <br> </p> <p> <br> </p> <ul> <li><p> <i><b>Limit switch Mechanics</b></i> </p> </li></ul> <p><br> </p> <p> - <b>Limit switch mindless</b> <b>V3 series</b>(Crouzet)<b> </b>multifunction</p> <p> - <b>contact mindless</b>(dual current)<b>:</b>SPDT with gold-plated contact</p> <p> - <b>Flow rate contact (dc):</b>since 1mA @ 4Vdc up to 5A @ 24Vdc - load resistive</p> <p> - <b>Flow rate contact (ac):</b>from 1mA @ 4Vac up to 5A @ 240Vac- load resistive</p> <p> - <b>temperature Of work</b> <b>: </b>See T.amb. of custody certification</p> <p> - <b>wrapping</b> <b>:</b>plastic material</p> <p></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for C.E. srl - CFIB- 2- ME.IP - V3.T - ET- 0- 0Y LSbox number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
