| BRAND | TEKNIC |

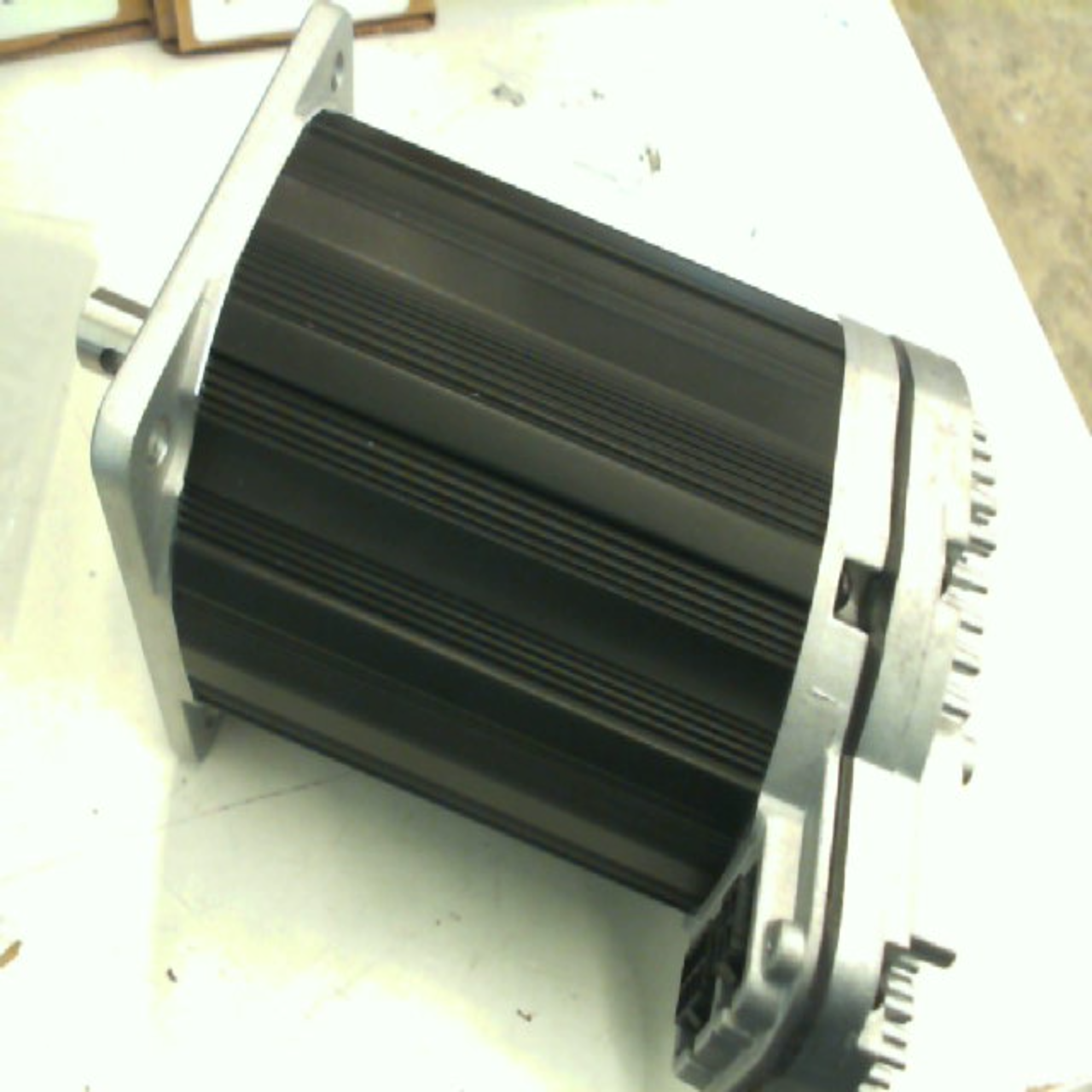

| Product | CPM-SDSK-3441S-RLN |
| Internal code | IMP3935190 |
| Weight | 3.3 |
| Custom code | 8501100000 |
| Technical specification | Motor Frame SizeNEMA 34 - 3.42 in (86.87 mm) sq. Length5.38 in (136.65 mm) Input (bus) Voltage Range24-75 VDC (90 VDC max) Peak Torque (@75 VDC)1,844 oz-in (13.0 N-m) Cont. (RMS) Torque (@75 VDC)479 oz-in (3.4 N-m) Max Speed (@75 VDC)840 RPM Achievable Resolution0.450 degrees (0.057 deg. w/ Enhanced option) Repeatability0.03 degrees Shaft Diameter0.50 in (12.70 mm) Weight7.3 lb (3.3 kg) Rotor Inertia15.5 oz-in² (2.8 kg-cm²) Logic Input Voltage Range4.0 to 28 VDC Maximum Radial Load50 lbf (222.4 N) Maximum Thrust Load10.0 lbf (44.5 N) Environmental RatingDust & water splash resistant Ambient Temperature0-70 deg C (derated >40C) Ambient Humidity0-95%; non-condensing Regulatory CertificationsUL recognized; cUL recognized; CE; RoHS Country of OriginUSA Warranty3 Years Specifications at 75 VDC Peak Torque 1,844 oz-in (13.0 N-m) Cont. (RMS) Torque 479 oz-in (3.4 N-m) Max Speed 840 RPM Peak Power 280 W (0.38 hp) Cont. (RMS) Power 251 W (0.34 hp |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for TEKNIC - CPM-SDSK-3441S-RLN number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
