| BRAND | Calectro |
| Product | CPS-A |
| Description | Differential pressure transmitter -50 - +3500 Pa |
| Internal code | IMP3306403 |
| Weight | 0.161 |
| Custom code | 90321020 |

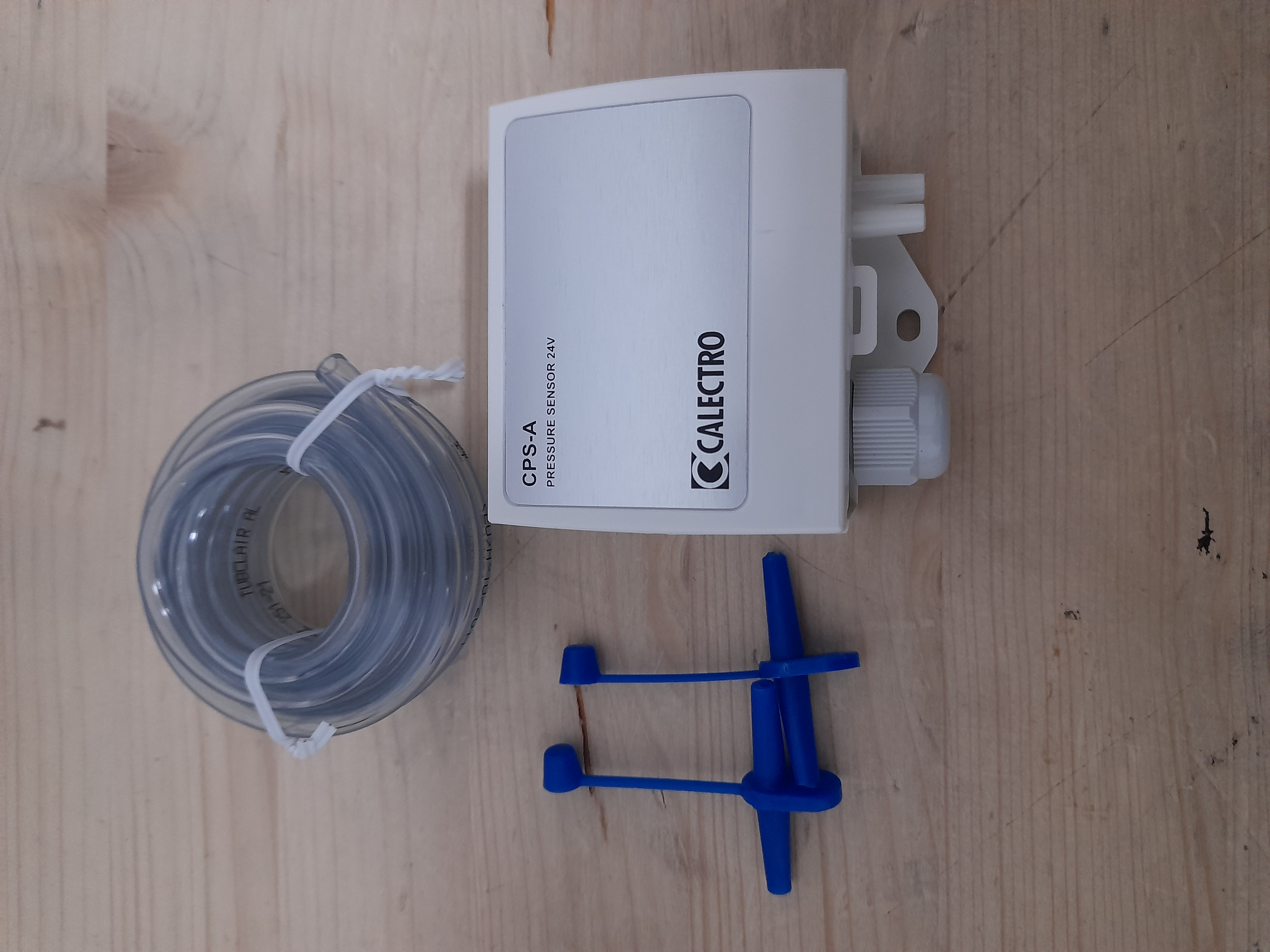

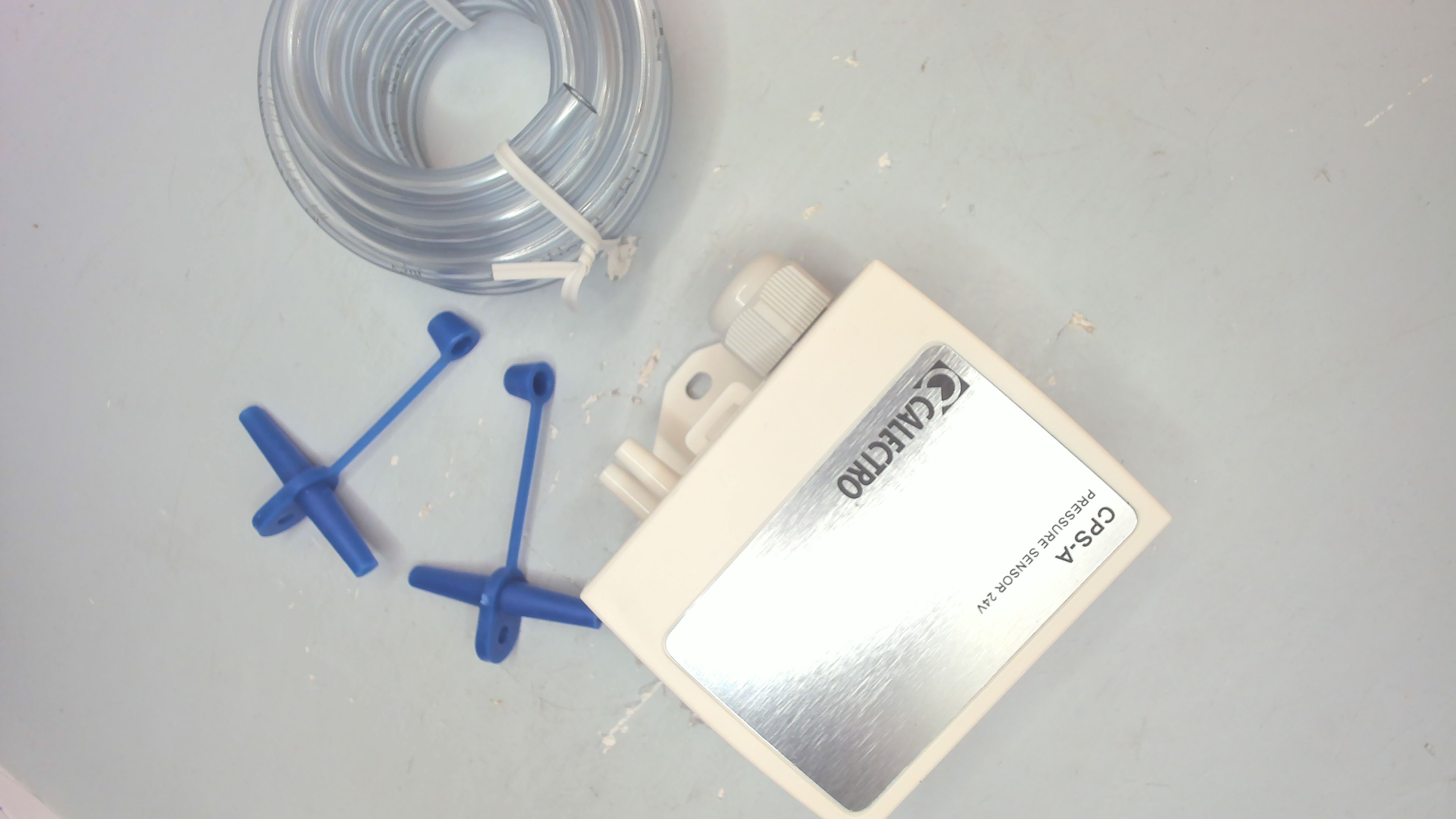

| Technical specification | CPS-A pressure sensor has a built-in differential pressure element, which helps to achieve high accuracy and Linearity is temperature-compensated. With a DIP switch, the desired pressure measurement range is discontinued. The output signal (0-10V or 4-20 mA) and the desired signal attenuation are also provided with set to the DIP switch. Housing terminal and cable connection (with pre-assembled M16 screws) can be removed, which simplifies installation. The housing cover has on the top edge a hinge and at the bottom a snap lock with locking hook, which closes the lid in When folded up, keeps it open. Supply voltage: 24V AC/DC ± 10% Power consumption: approx. 31 mA output signal: 0-10V/4-20 mA Pressure ranges: -50-50/0-100/-300/-500/-700/-1000/-200/1-3500 Pa Accuracy: Usually ± 1% of measured pressure Green LED: Lights continuously: normal operation Flashes: zero pressure calibration Ambient temperature: -20 to +50°C Cable inputs: 1xM16, 5-10 mm cable 2 m hose and 2 nipples Dimensions (WxHxD): 78x90x40 mm Protection class: IP54 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Calectro - CPS-A Differential pressure transmitter -50 - +3500 Pa number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
