| BRAND | Tapflo |
| Product | CTIDD-40 |

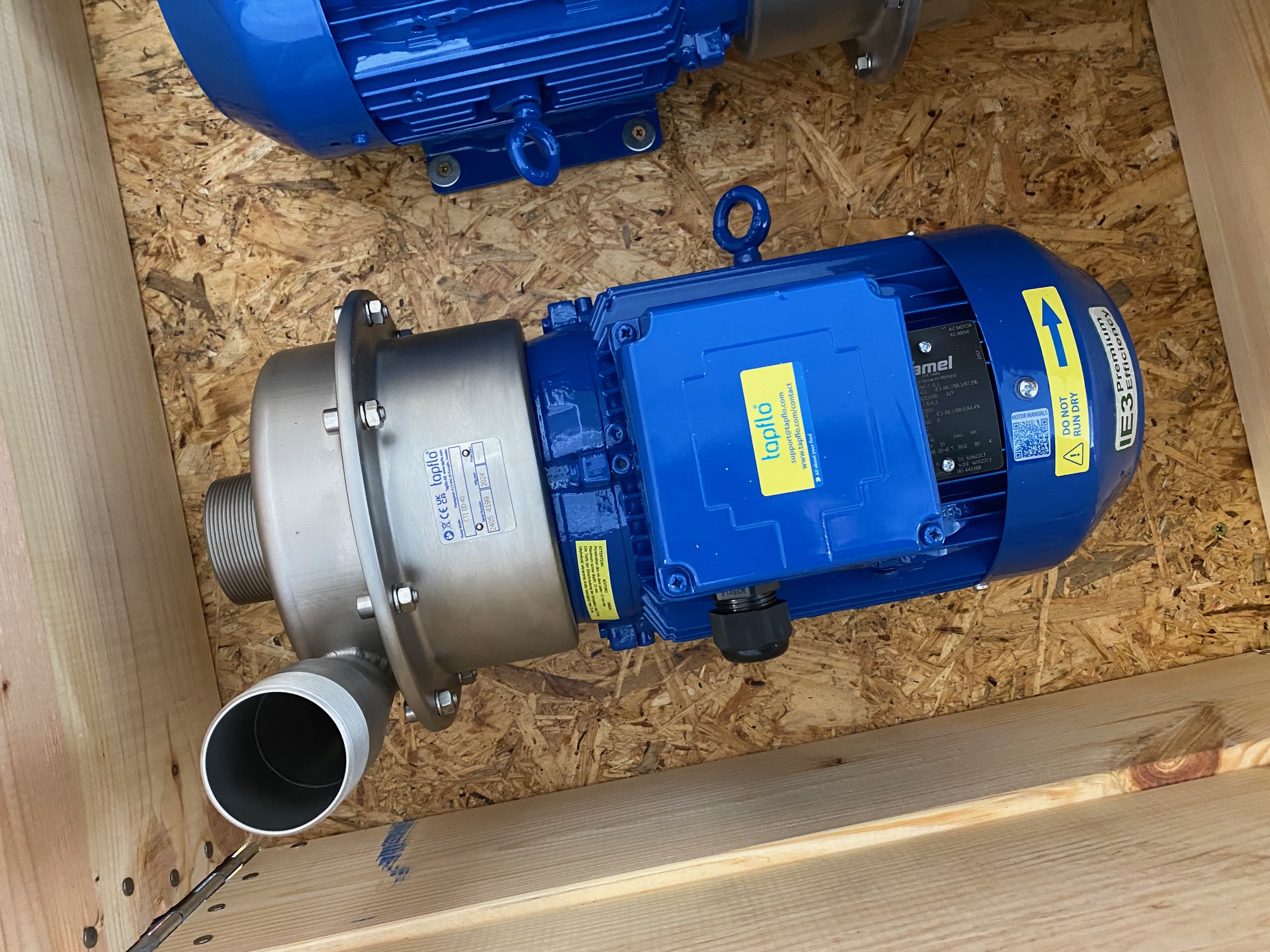

| Description | CTIDD-40 industrial centrifugal pump |
| Internal code | IMP4971460 |
| Weight | 45 |
| Technical specification | Technical description: Maximum flow rate 45 m³/h for water Max. delivery pressure 21.5 mWS Max. system pressure 10 bar Max. solid size 6 mm Operating point, see conveyor pit Suction height not self-priming Max. temperature 90°C Max. viscosity 200 mPas Case parts in contact with the product, 316L, glass-beaded 316L stainless steel impeller Single-acting mechanical seal: ceramic/graphite/EPDM EPDM O-ring housing Suction connection 2 1/2 “external thread Pressure connection 2 “external thread Drive: 3-phase motor 400/690 V, 50 Hz, 4.0 kW, IP 55, IE3 Speed 2900 rpm at 50 Hz |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Tapflo - CTIDD-40 CTIDD-40 industrial centrifugal pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
