| BRAND | Baelz |
| Product | D-DAMPF-JET |
| Description | steam jet pump |
| Internal code | IMP4055548 |
| Weight | 45 |
| Custom code | 84818099 |
| Technical specification | Order No 590-0006 Adjustable steam jet pump Jetomat, without drive 5.3103, max. 240° C; stroke 22 mm; spindle Ø 10 mm 590-1-DN 65-PN 16 Housing/Diffuser:GJS-400-18-LT - 5.3103 max. 240°C/14 bar- 50°C/16 bar Spindle diameter 10 mm DN 65, PN 16, p 01:7.0 bARue p 03:2 .0 bARue p 04:3 .5 bARue m 01:2180 kg/h m 03:300 kg/h m 04:2480 kg/h max. permissible delta p drive: 16 bar DN65 is required as DN50 is to small for the required parameters. Please check the calculation to find more information. Best. -No. 373-E65-20-30-301 Fail-safe motor lift drive 2000 N; 10.15,5 mm/min; 2-3 points; 0-10V/4-20 mA 373-E65-D-20-30-S21-230 Adjustment speed adjustable: 10, 15 or 30 mm/min. Delivery condition: 10 mm/min. mechanical hand intervention Power failure: oppressive (extending) input signal: 0... 10 V or 4... 20 mA 2 or 3 point selectable output signal: 10... 0 V (inverted) incl. drive stand and coupling (S21) Stroke max. 40 mm, self-adapting silicone-free version IP 66 (standing installation) 230 V AC |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Baelz - D-DAMPF-JET steam jet pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

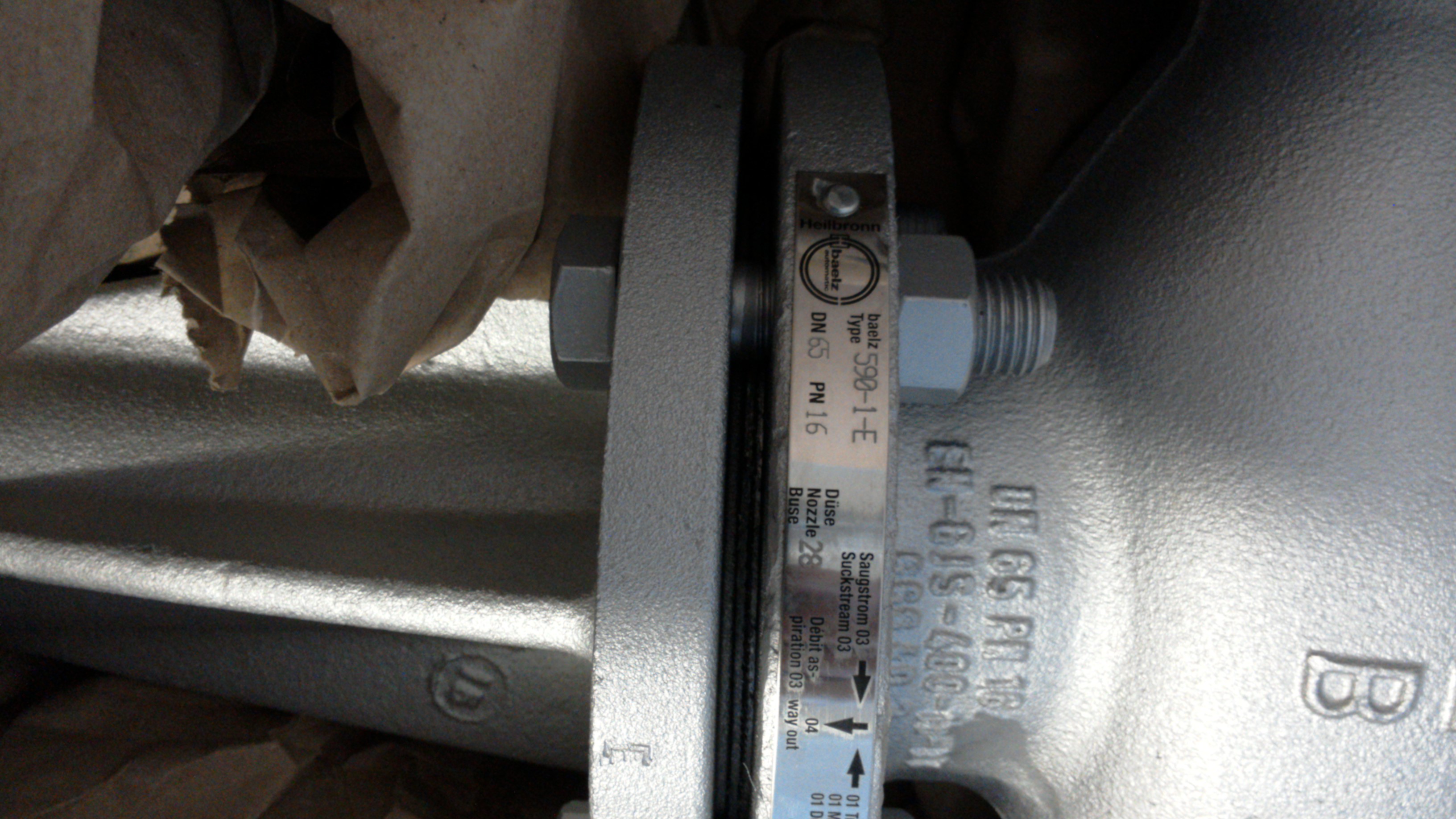

WIN_20210212_16_06_42_Pro.jpg | |
|
|

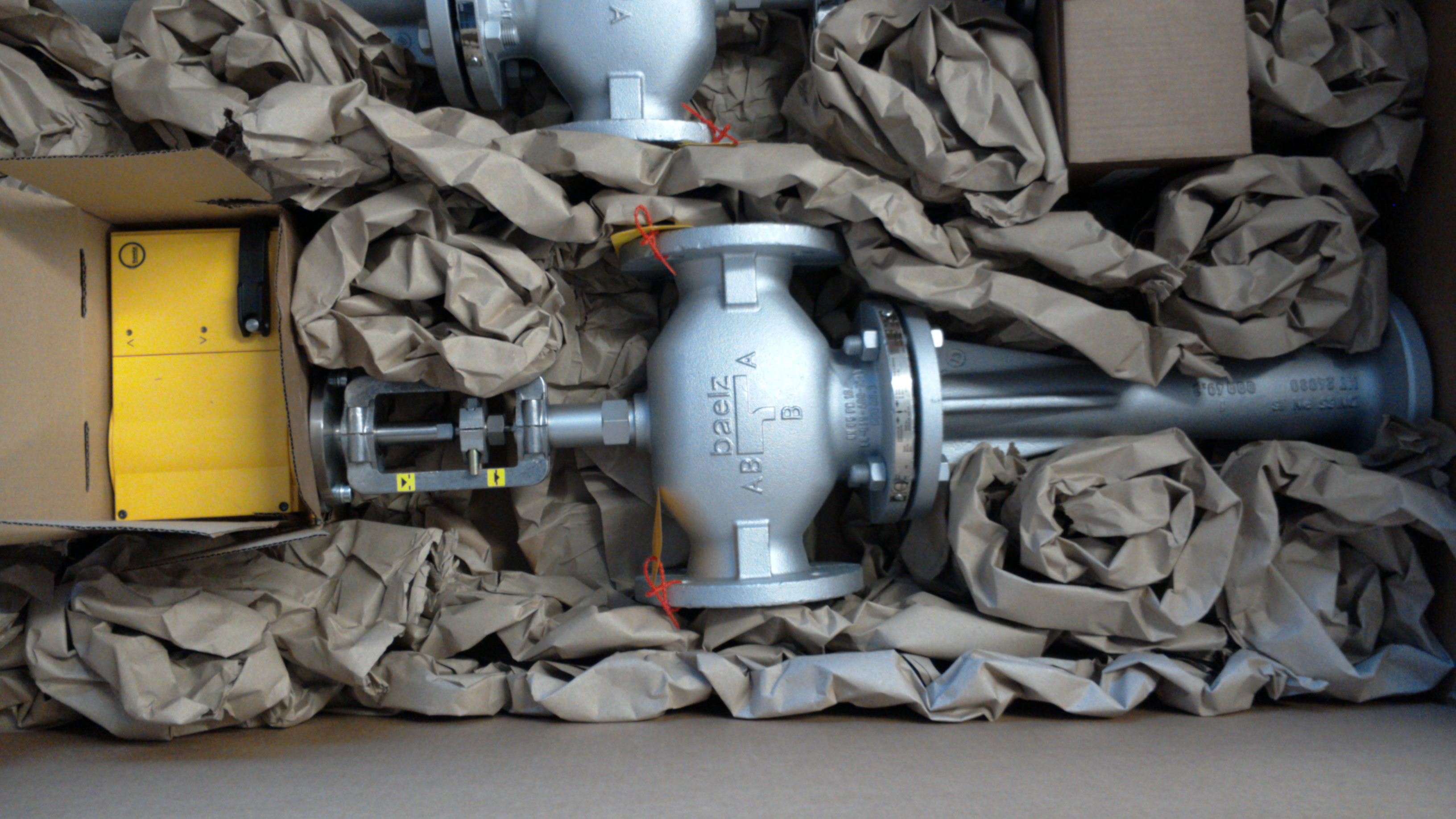

WIN_20210212_16_07_02_Pro.jpg |
