| BRAND | Barksdale |
| Product | D2X-M80SS-UL |
| Description | Explosion Proof Diaphragm Pressure Switches |
| Internal code | IMP5111540 |
| Weight | 3 |
| Technical specification | D2X Explosion Proof Diaphragm Switch, Housed, Dual Setpoint, 0.5 to 80 PSI Accuracy: ± 0.5% of the adjustable range Electrical Connection: Screw terminals on covered terminal strip via 3/4" NPT conduit connection Decreasing - psi (bar) Increasing - psi (bar) min max min max .5 (.03) 76.6 (5.2) 3.9 (.3) 80 (5.4) Type: Single pole double throw (SPDT); Dual setpoint housed version Rating: 10 amps @ 125/250 VAC; 3 amps @ 480 VAC; 0.5 amps @ 125 VDC; 0.25 amps @ 250 VDC Process Fitting: 303 stainless steel Diaphragm: 17-7 PH stainless steel Enclosure: Die-cast aluminum, anodized and painted Pressure Connection: Std 1/4" NPT female pressure connection |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Barksdale - D2X-M80SS-UL Explosion Proof Diaphragm Pressure Switches number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

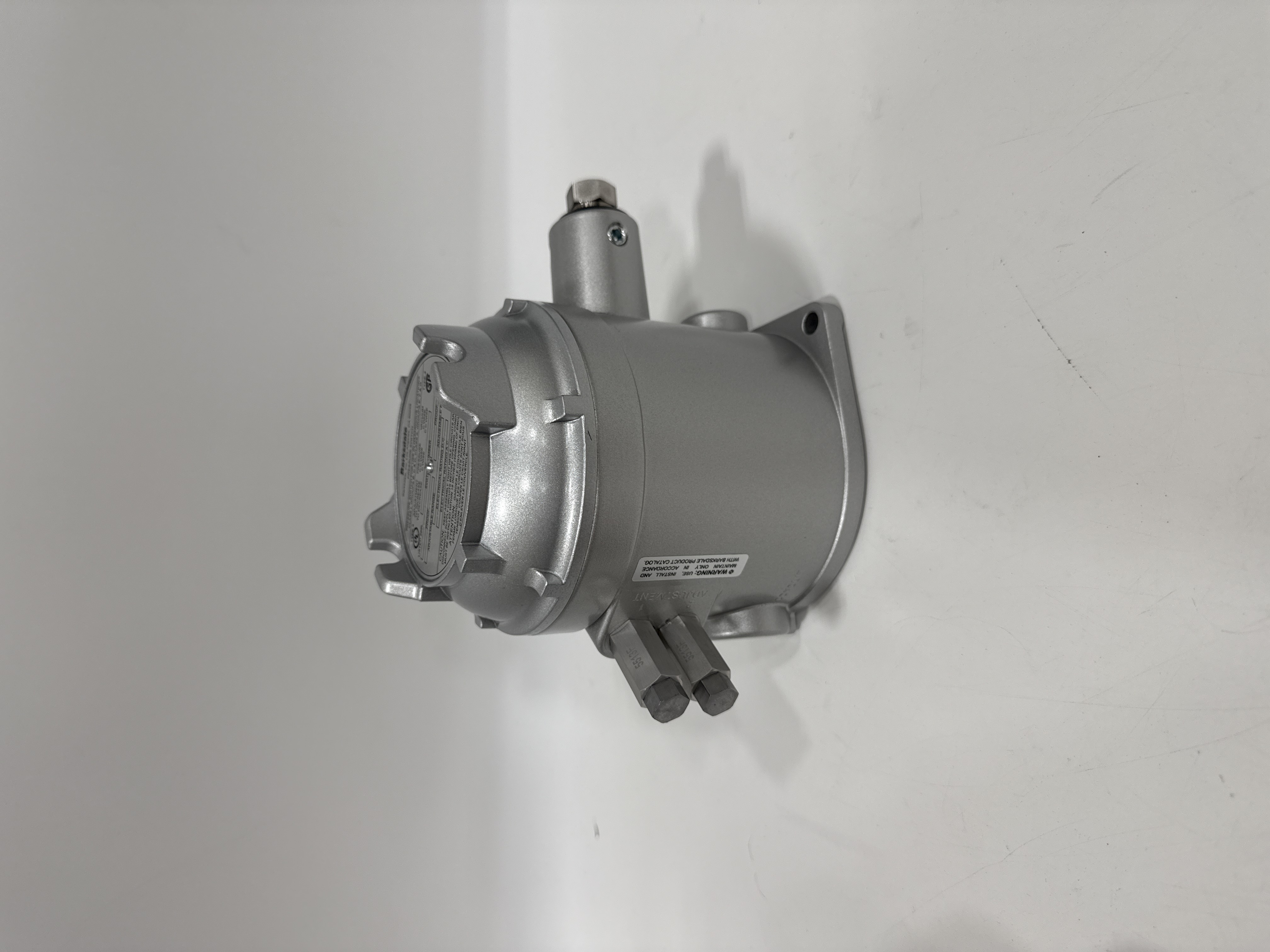

Barksdale D2X-M80SS-UL.jpg |
