| BRAND | Thermokon |
| Product | DPA2500+ LCD AA MultiRange / 667111 |
| Description | differential pressure measurement |
| Internal code | IMP3838368 |
| Weight | 0.41 |
| Custom code | 90262020 |
| Technical specification | Differential pressure measurement, vol — 4.. 20 mA PR1 Output: 2x 4.. 20 mA (differential pressure and volume flow) Measuring range differential pressure: -100.. +100 | 0.. +100 | 0.. +250 | 0.. +500 | 0.. +1000 | 0.. +1500 | 0.. +2000 | 0.. +2500 Pa (default: 0.. +2500 Pa), adjustable on the device Volume flow measuring range: 0.. +750,000 m³/h, adjustable via Thermocon UseApp Measurement units: Pressure in Pa or inchWc, volume flow in m³/h or cfm Pressure accuracy: ±5 Pa at 500 <500 Pa, ±10 Pa bei Messbereich > Pa measuring range Power supply: 15.. 35 V = Display: LCD 29x35 mm with RGB backlight, configurable via Thermocon UseApp Impact and shatter-proof housing USE-L with hinged cover (PC, pure white, IP65) Removable cable entry (M20 flex, replaceable) and removable plug terminal (max. 2.5 mm²), Output protection circuit (reverse polarity protected) Screw connection on level ground, prepared for latching installation on standard DIN rail TS35 (35x7.5 mm) incl. mounting base, fixing screws, 2 m PVC connection hose and pressure connection set |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Thermokon - DPA2500+ LCD AA MultiRange / 667111 differential pressure measurement number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

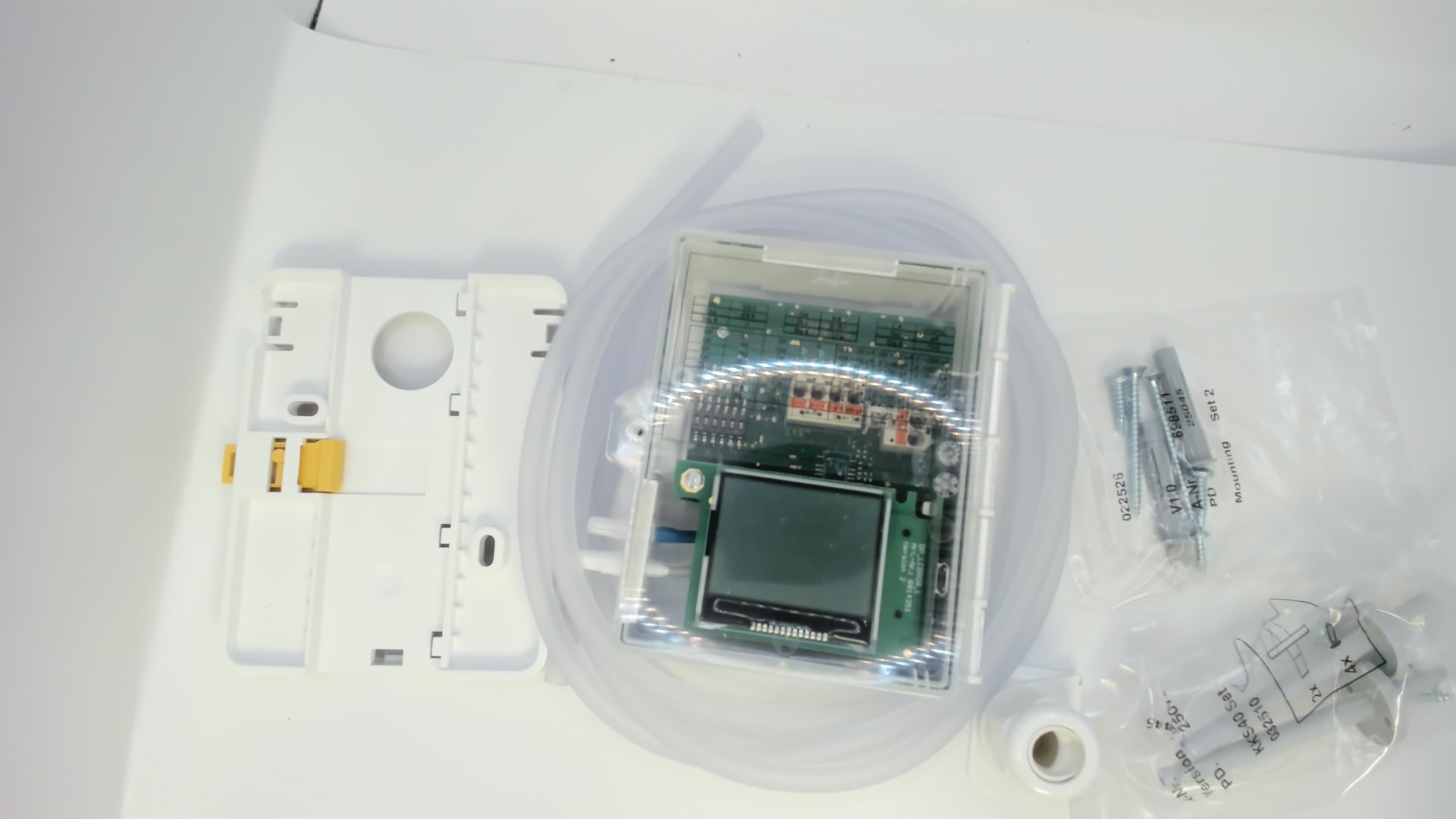

WIN_20250422_11_49_25_Pro.jpg |
