| BRAND | AC Motoren |
| Product | FCA 100 LC-4 / PHE - B5 400 /690 |
| Description | Three-phase norm motor |
| Internal code | IMP4056119 |
| Weight | 1 |
| Custom code | 85015220 |

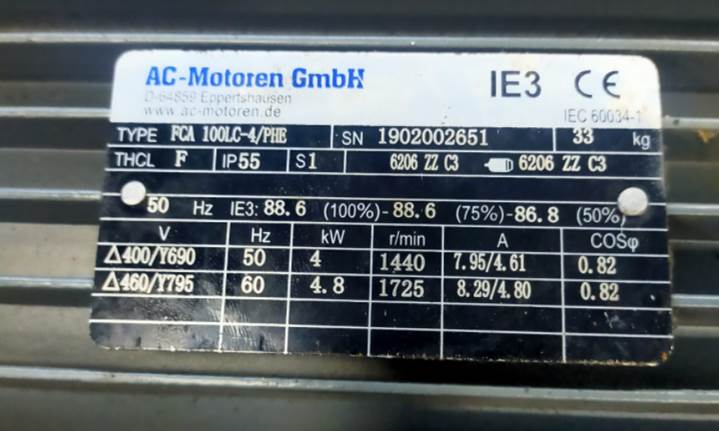

| Technical specification | Motor power: 4.00 KW in progressive execution Number of motor poles: 4 Mains voltage: 3 x 400/690 V + - 10%, 50 Hz 3 x 460/795 V + - 10%, 60 Hz Motor speed: 1440 min-1 Rated motor current: 7.95 / 4.61 A. cos phi: 0.82 Efficiency class: IE3 Full load efficiency: 88.6 - 88.6 - 86.9 at 4/4 - 3/4 - 2/4 load Protection class: IP 55 Insulation class: F Motor size: 100 Design: IM B5 Motor shaft: 28 k6 x 60 mm Motor flange: 250 x 215 x 180 mm Terminal box position: above Coolant temperature: -20 to +40 ° C Installation altitude: <1000 m a. NN Color: RAL 7030 stone gray |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCA 100 LC-4 / PHE - B5 400 /690 Three-phase norm motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
