| BRAND | AC Motoren |
| Product | FCA-112MC-6 / PHE B5 |
| Description | AC three-phase motor |
| Internal code | IMP4194261 |
| Weight | 39 |
| Custom code | 85015220 |
| Technical specification | Item number: 102971 Engine power: 3,00 KW Motor number: 6 Motor voltage: 3 x 230/ 400 V +- 10%, 50 Hz 3 x 265/460 V +- 10%, 60 Hz Engine speed: 980 min-1 Motor Rated Current: 11.89/6.84 A cos phi: 0.76 Efficiency class: IE3 Efficiency: 83.3 - 83.3 - 81.6% at 4/4 - 3/4 - 2/4 load Degree of protection: IP 55 Insulation class: F Coolant temperature ፦20 to +40 °C Height: < 1000 m and NN Motor flange: IM B5 (diameter 250 x 215 x 180 mm) Motor shaft: 28 k6 x 60 mm Terminal box position: top Colour: RAL 7030 stone grey Additional equipment: no |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCA-112MC-6 / PHE B5 AC three-phase motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

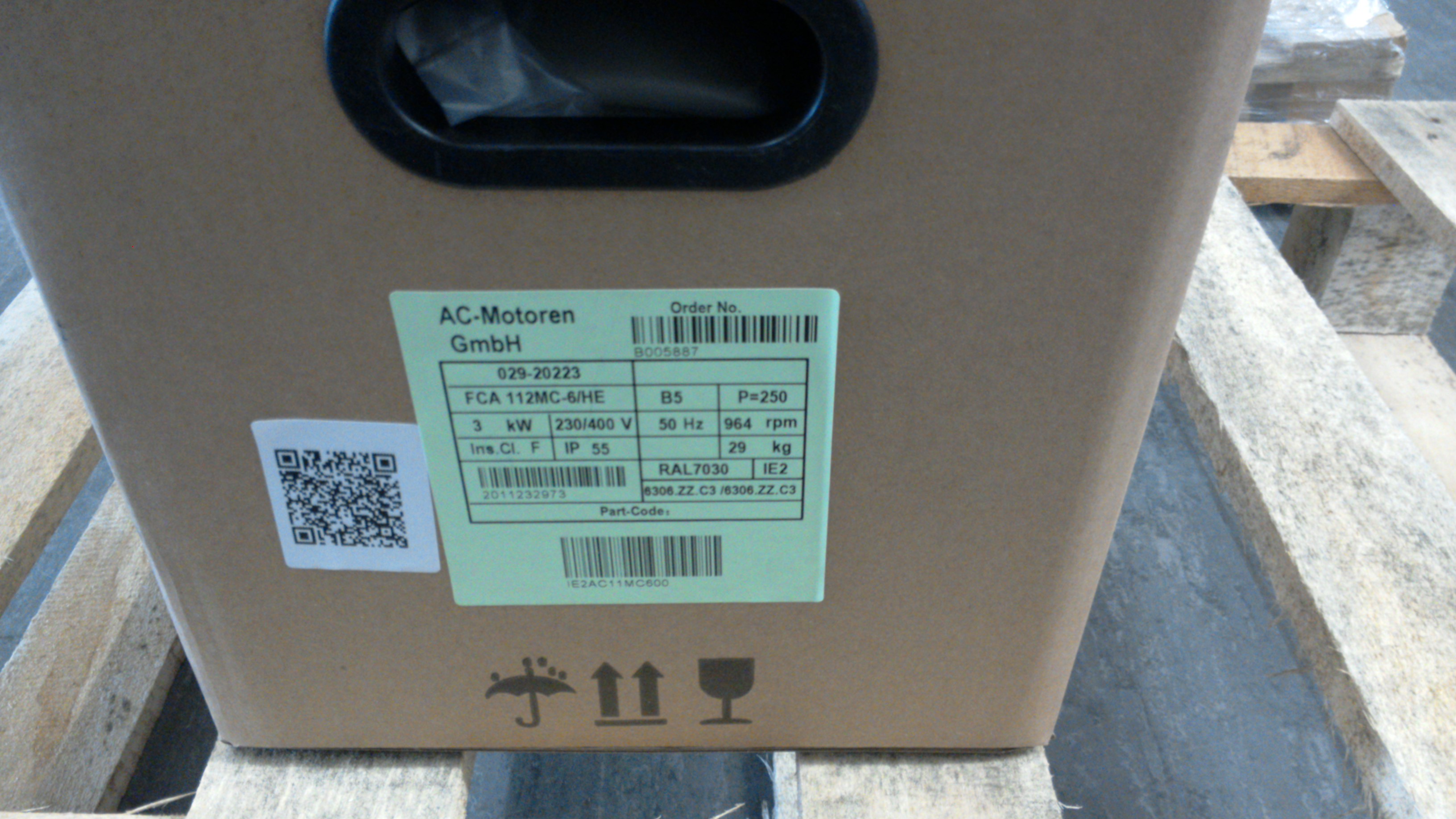

WIN_20210223_11_31_56_Pro.jpg |
