| BRAND | AC Motoren |
| Product | FCA 132 MC-2 B5 / PHE |
| Description | AC asynchronous motor with rotor cage |
| Internal code | IMP4471660 |
| Weight | 55 |
| Custom code | 85015230 |
| Technical specification | 104302 Motor power: 11.0 kW Number of motor poles: 2 Motor voltage: 3 x 400/ 690 V +- 10%, 50 Hz 3 x 460/ 795 V, +- 10%, 60 Hz Engine speed: 2940 rpm Motor nominal current: 19.34/11.21 A cos phi: 0.89 Efficiency class: IE3 Efficiency: 91.2 - 91.2 - 89.4% at 100 - 75 - 50% load Degree of protection: IP 55 Insulation class: F Flange version IM B5 flange size: 300 x 265 x 230 mm Motor shaft: 38 k6 x 80 mm Terminal box location: xxx Coolant temperature: -20 to +40 °C Installation height: < 1000 m and sea level Coloring: RAL 7030 stone grey Engine in: aluminum housing Additional equipment none |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCA 132 MC-2 B5 / PHE AC asynchronous motor with rotor cage number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

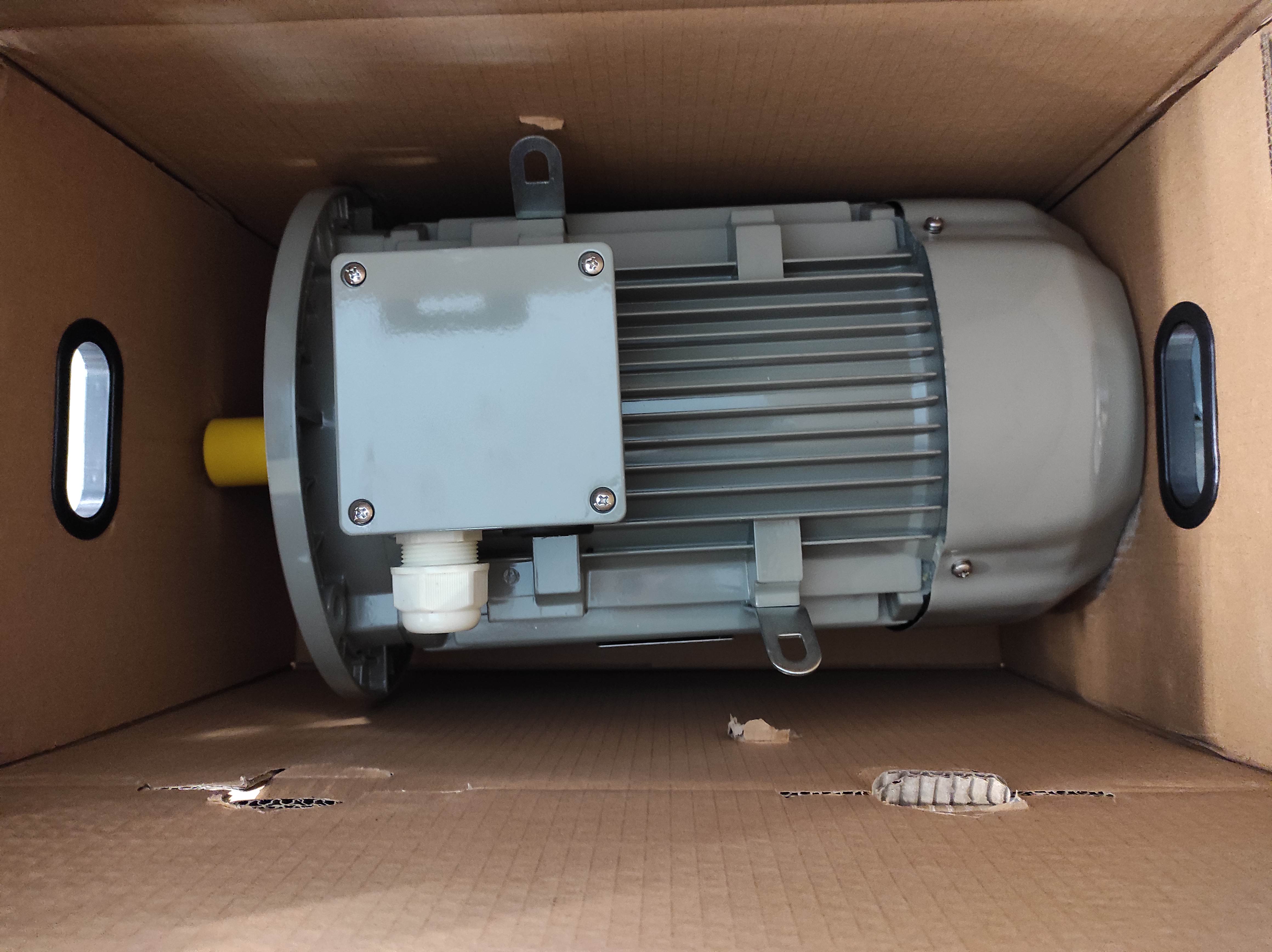

IMG_20220412_125031.jpg | |
|
|
