| BRAND | AC Motoren |
| Product | FCA 56 A-2 |
| Description | three-phase motor |
| Internal code | IMP4167269 |
| Weight | 3.4 |
| Custom code | 85015220 |
| Technical specification | Product No. 106391 Motor power: 0.09 kW/0.11 kW Number of motor poles: 2 Motor voltage: 220-240/380-420 V +- 10%, 50 Hz 220-280/380-480 V +- 10%, 60 Hz Motor speed: 2750 min-1/50 Hz 3300 min-1/60 Hz Rated motor current: 0.72/0.42 A Efficiency class: IE1 Cos phi: 0.7 Protection class: IP 55 Insulation class: F Weight: 3.40 kg Design: IM B5 (flange version) flange size: 120 x 100 x 80 mm Motor shaft: 9 m6 x 20 mm Terminal box position: above Coolant temperature: -20 to +40 °C Installation height: < 1000 m above sea level Colour: RAL 7030 stone grey aluminum housing Additional equipment: without |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCA 56 A-2 three-phase motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

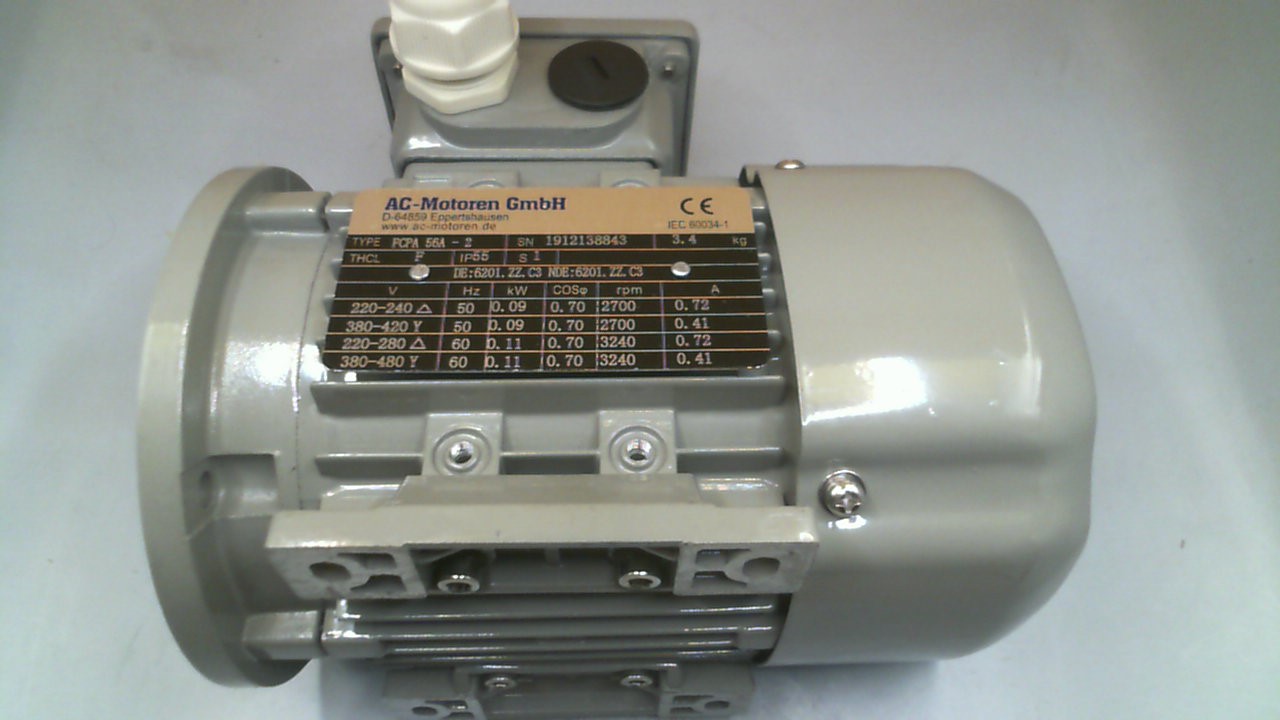

WIN_20230209_09_16_18_Pro.jpg |
