| BRAND | AC Motoren |
| Product | FCM 160 MA-2 B5 / PHE PTC |
| Description | AC asynchronous motor with cage rotor |
| Internal code | IMP4690111 |
| Weight | 120 |
| Custom code | 85015230 |
| Technical specification | Motor power: 11 KW/13.2 kW No. of motor poles: 2 Motor voltage: 3 x 400/690 V +- 10%, 50 Hz 3x 460/795 V +- 10%, 60 Hz Motor speed: 2945 min-1/50 Hz 3534 min-1/60 Hz Nominal motor current: 19.56/11.34 A Efficiency class: IE3 Efficiency: 91.2 - 91.2 - 89.4% at 4/4 - 3/2 - 2/4 cos phi: 0.89 Protection class: IP 55 Insulation class: F Weight: 113 kg Design: IM B5 (flange version) flange size: 350 x 300 x 250 mm Motor shaft: 42 m6 x 110 mm Terminal box position: top Coolant temperature: -20 to +40°C Installation height: < 1000 m and above sea level Colour: RAL 7030 stone grey cast iron housing |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCM 160 MA-2 B5 / PHE PTC AC asynchronous motor with cage rotor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

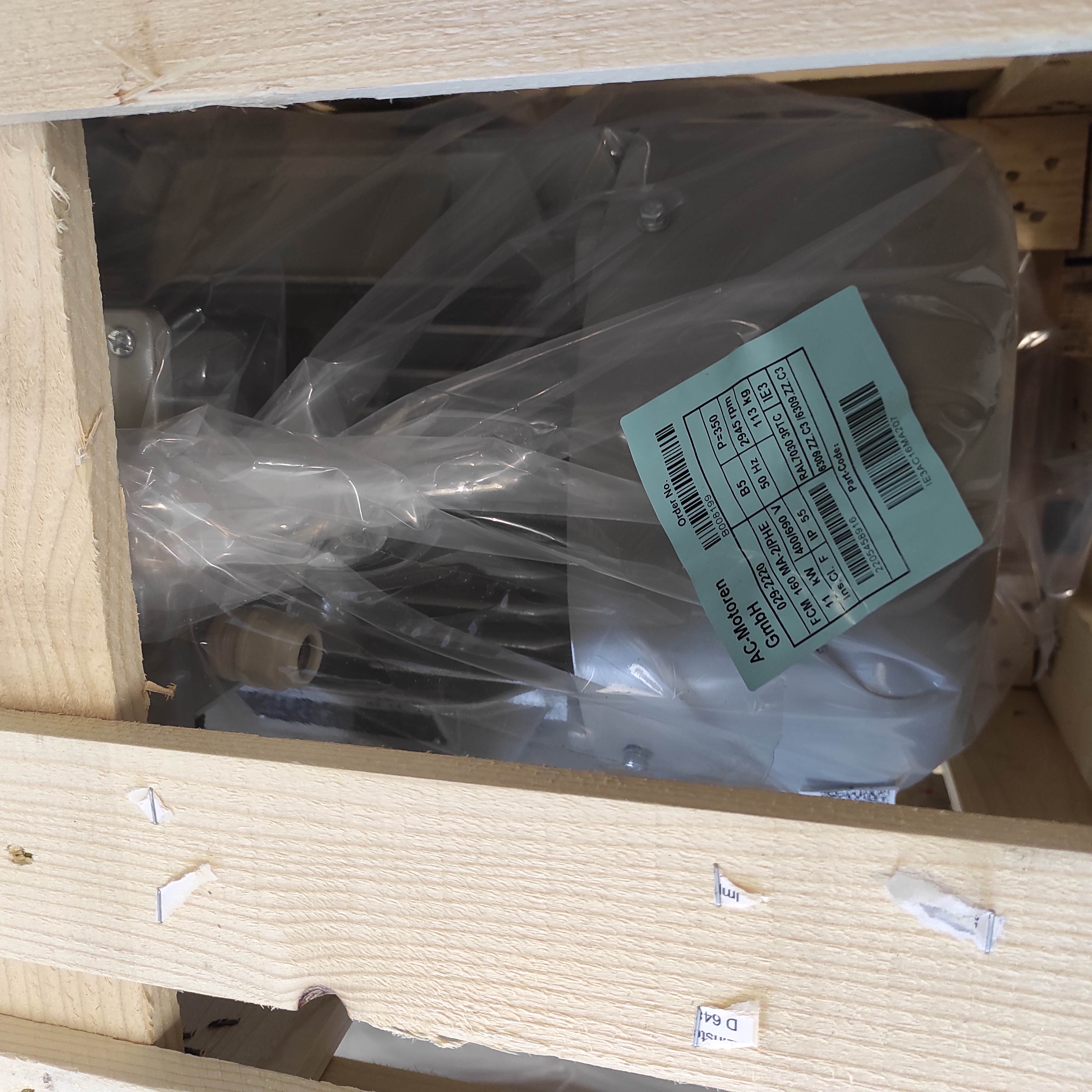

IMG_20221216_134812.jpg | |
|
|

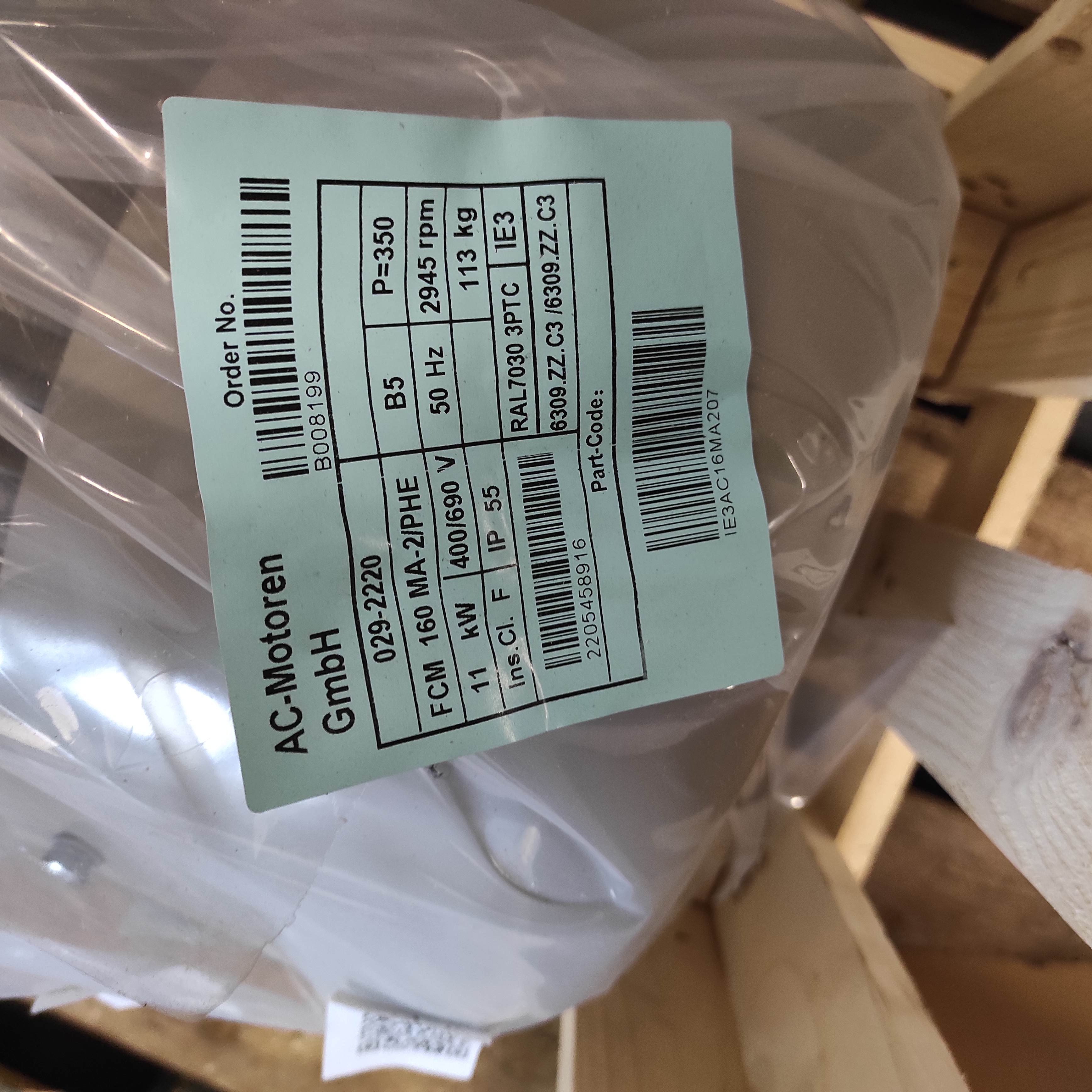

IMG_20221216_134819.jpg |
