| BRAND | AC Motoren |
| Product | FCPA 90 L-4 / PHE B35 |
| Description | AC asynchronous motor with squirrel cage |
| Internal code | IMP3780065 |
| Weight | 19 |
| Custom code | 85015220 |
| Technical specification | Motor power: 1.50 KW. Motor pins: 4 Motor voltage: 3 x 230/ 400 V +- 10%, 60 Hz 3 x 265/460 V + 10%, 60 Hz Degree of protection: IP 55 Insulation class: F Engine speed: 1445 rpm Rated motor current: 5.73/3.3 A cos phi: 0.77 Efficiency class: IE3 Full load efficiency: 85.3 - 85.3 - 83.6% at 100%/75%/50% 50 HZ Coolant temperature: -20 to +40 °C Installation height: < 1000 m above sea level Design: IM B35 Motor shaft: 24 k6 x 50 mm Terminal box location: top Colour: RAL 7030 stone grey Additional equipment: without |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - FCPA 90 L-4 / PHE B35 AC asynchronous motor with squirrel cage number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

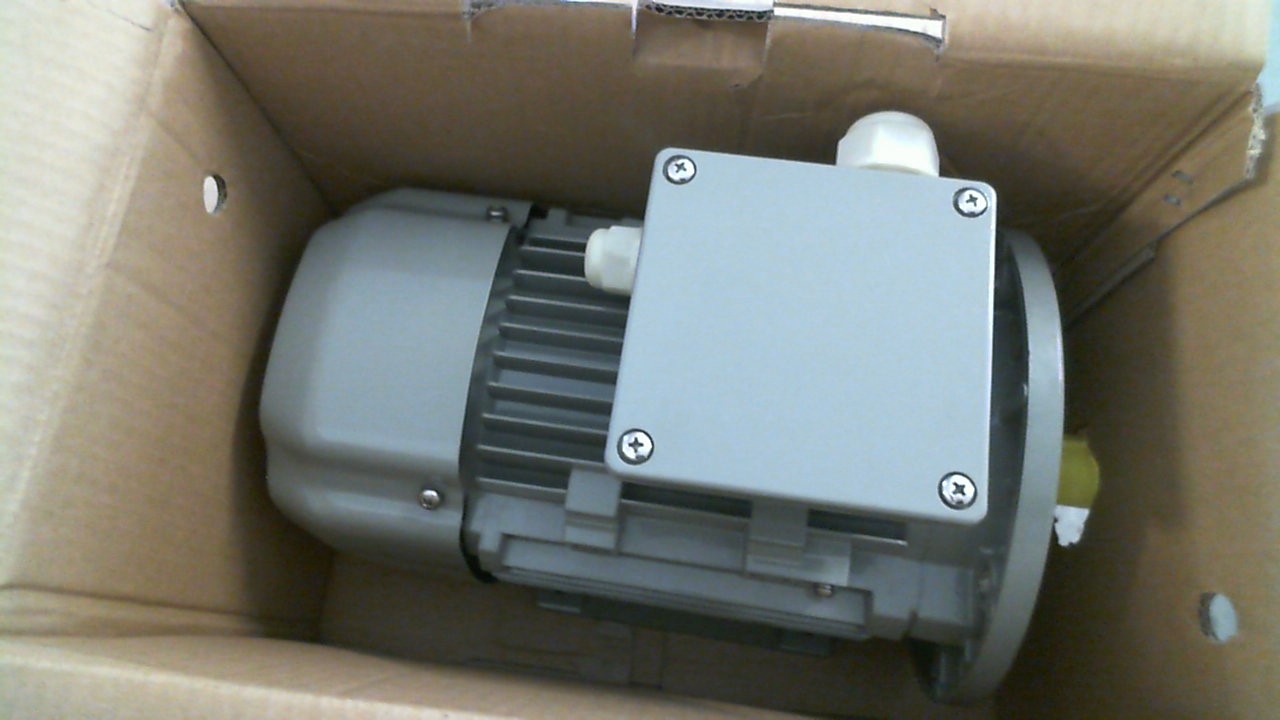

WIN_20220119_13_40_09_Pro.jpg |
