| BRAND | Contitech |
| Product | FD 76-14 DI G 1/2 CR |

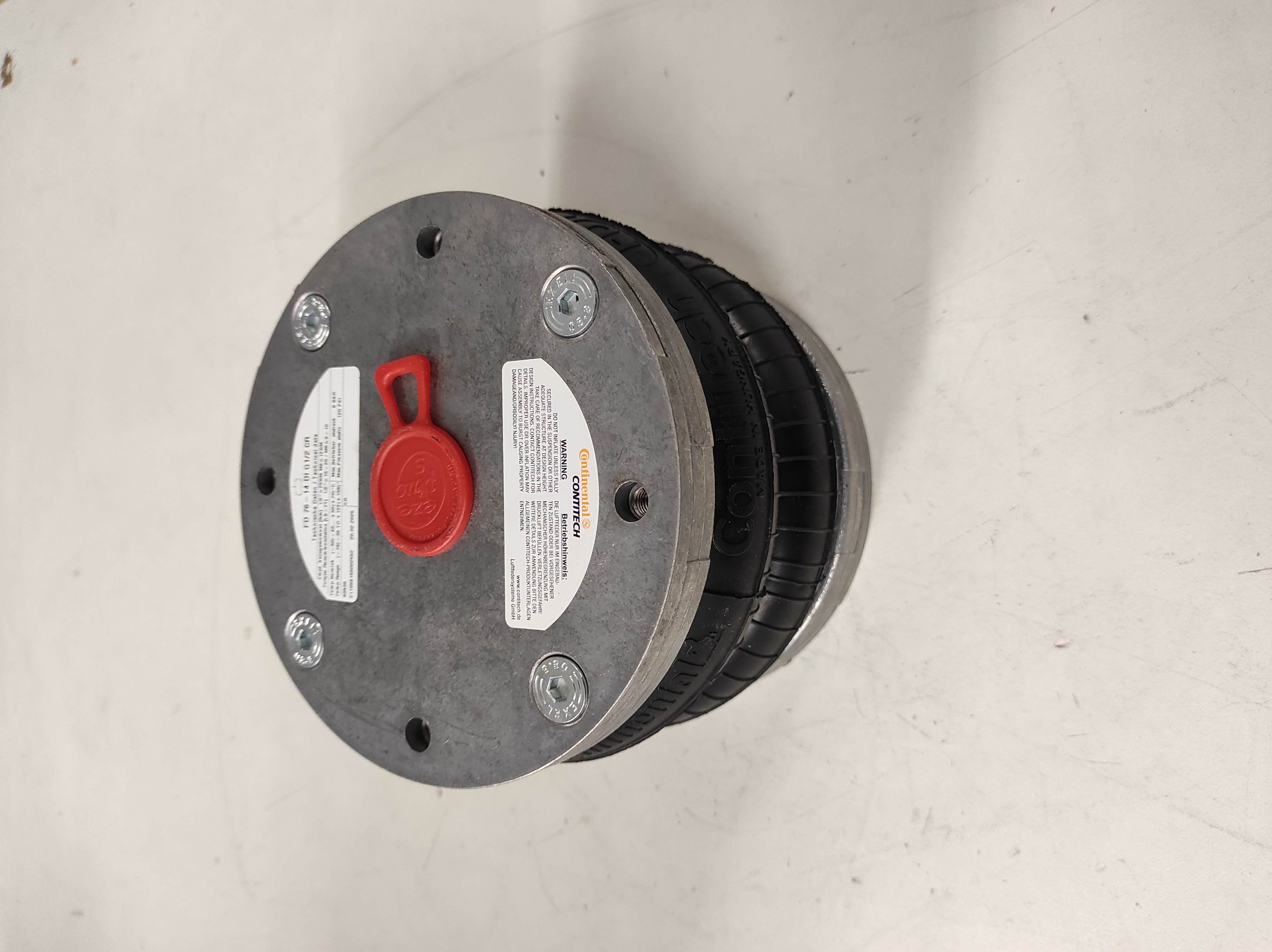

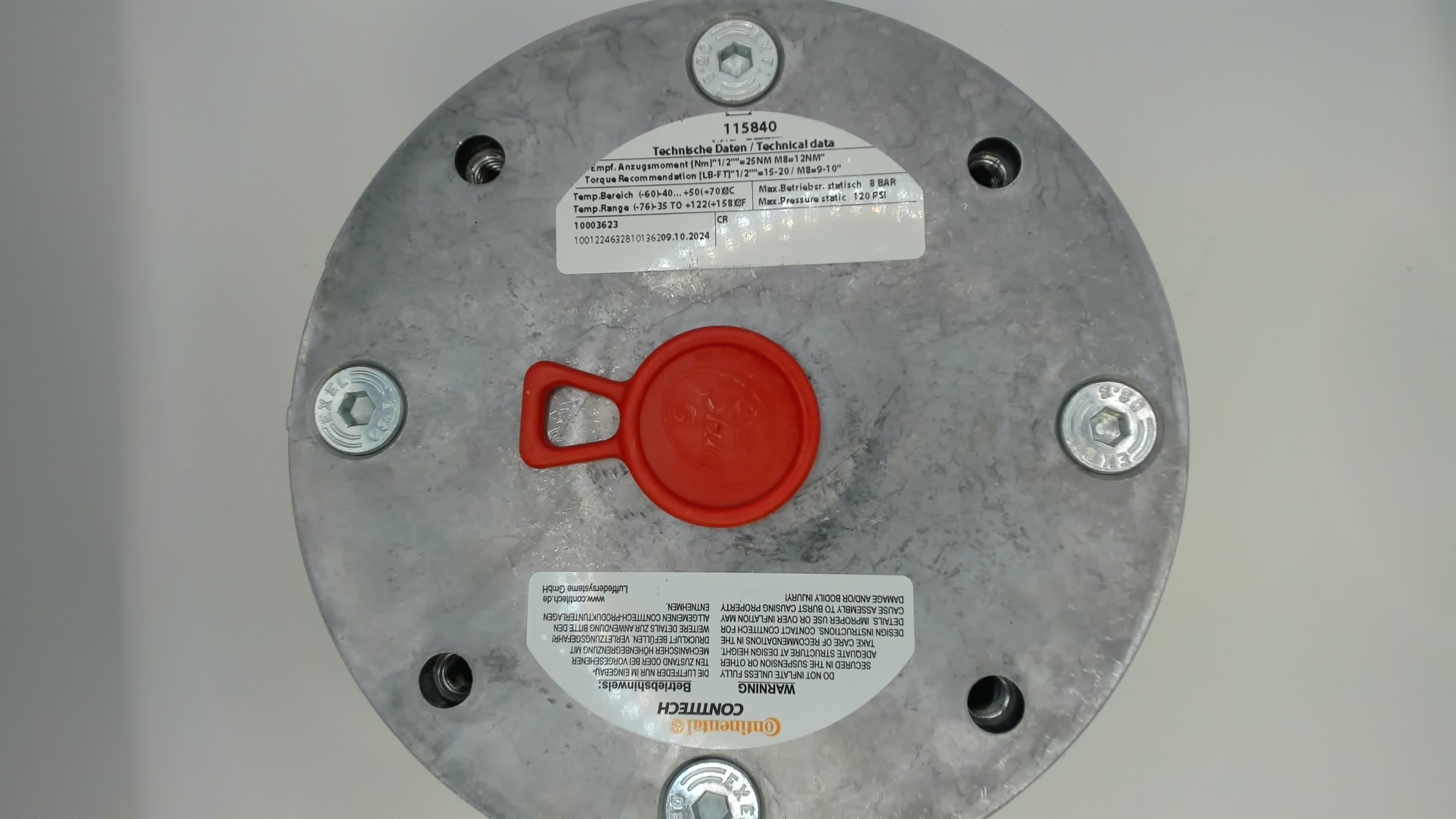

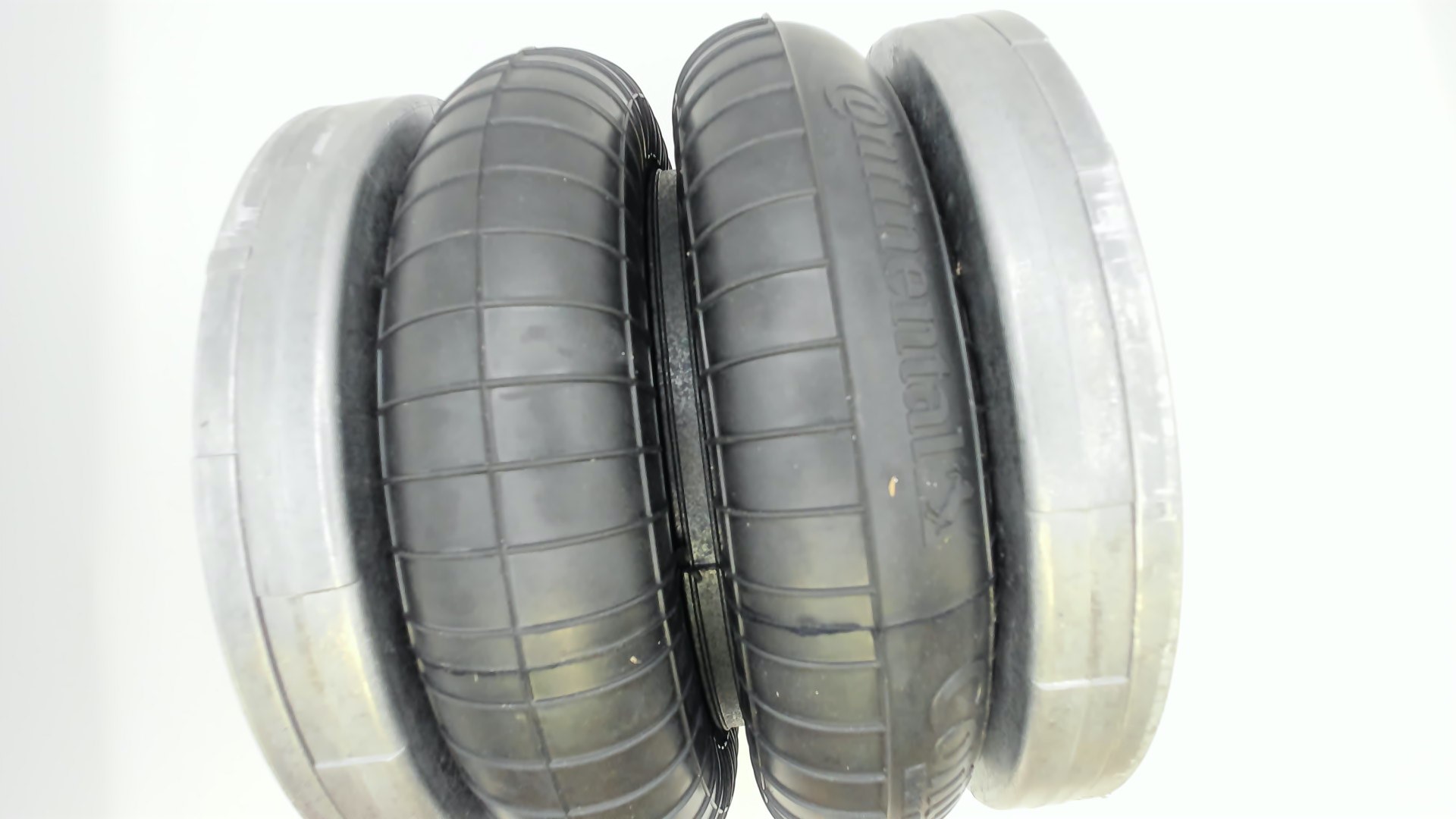

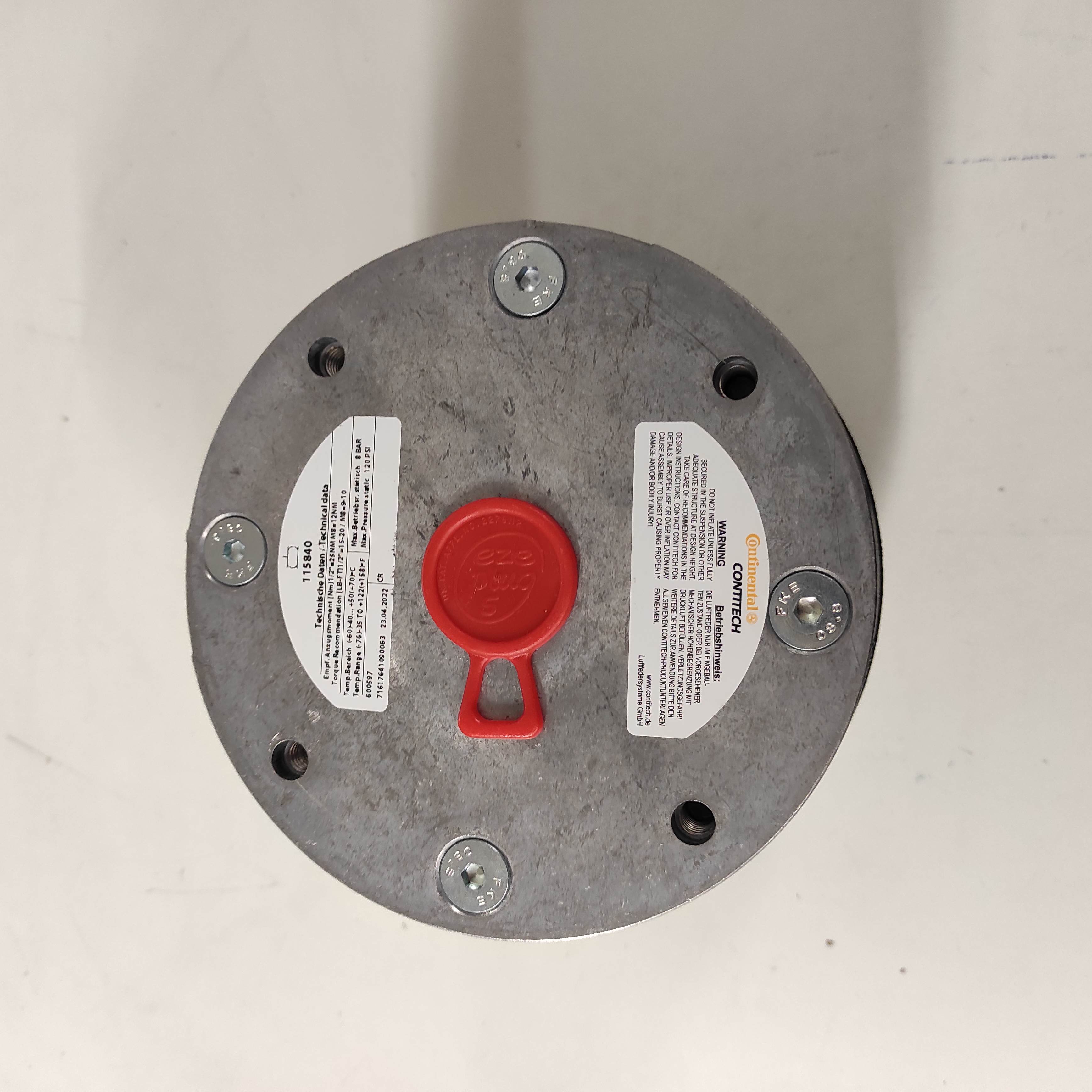

| Description | Conti double air cylinder |
| Internal code | IMP4668620 |
| Weight | 2.13 |
| Custom code | 40169500 |
| Technical specification | <p> Conti double bellows cylinder <br> Stroke max: 110 mm <br> max load: 12.8 kN <br> max diameter: 160 mm <br> max height: 195 mm <br> min Height: 80 mm <br> Recommended working height: 180 mm <br> Plate diameter: 178 mm <br> Mounting thread: 4xM8 <br> Air connection: G1/2" <br> Material bellows: CR <br> Temperature range: -40 to +85°C °C <br> Style: FD76 <br> </p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Contitech - FD 76-14 DI G 1/2 CR Conti double air cylinder number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
