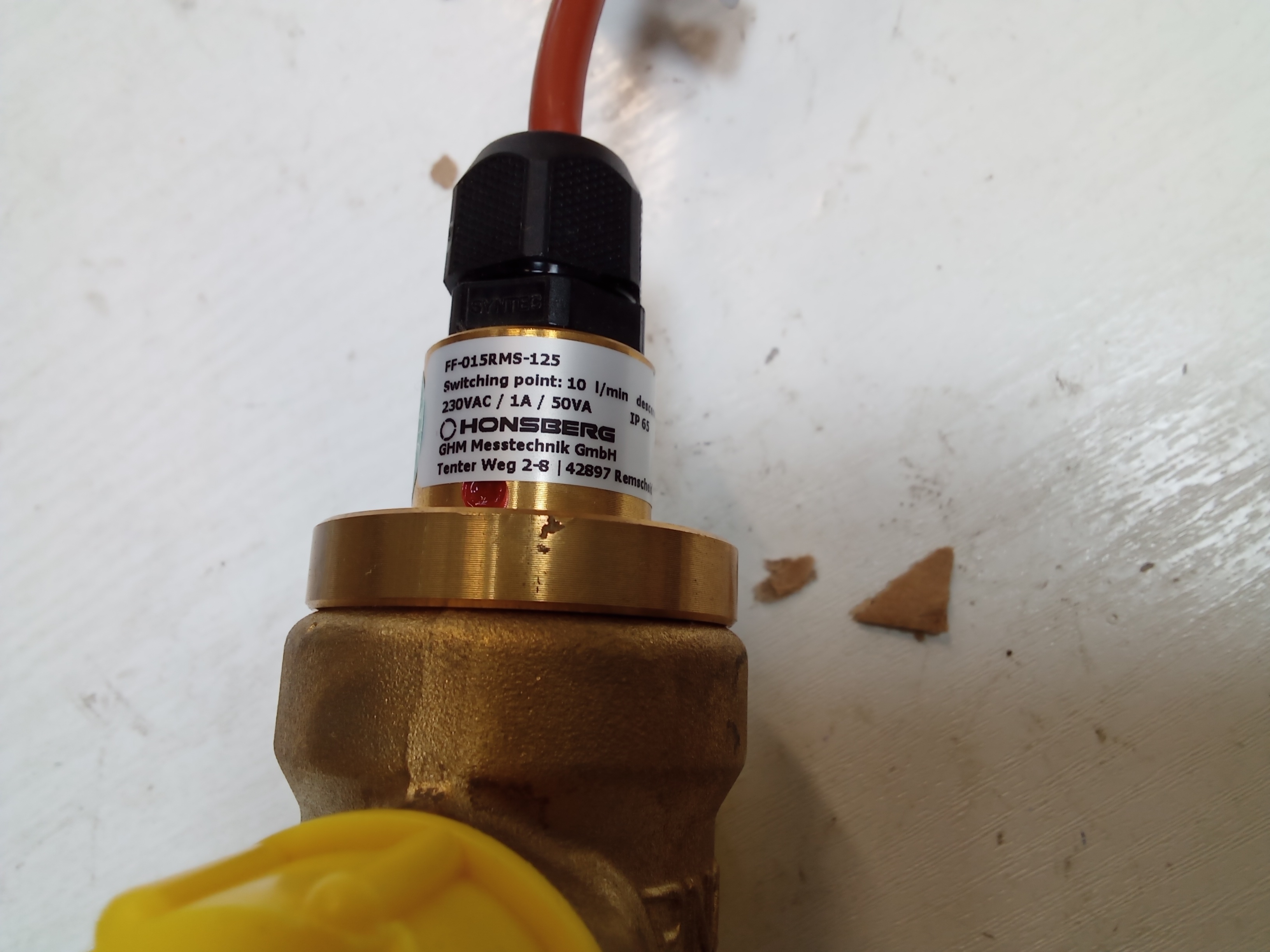

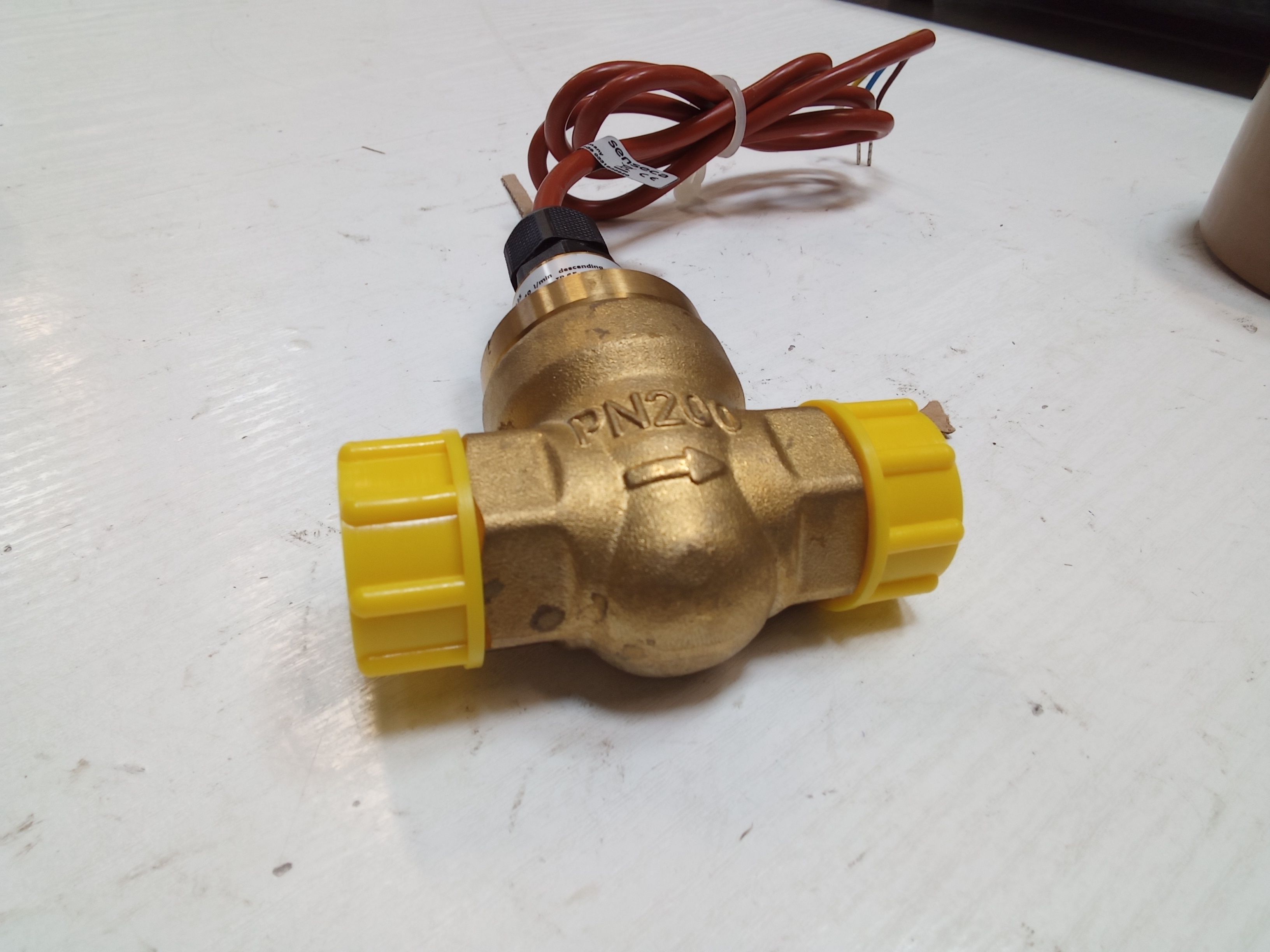

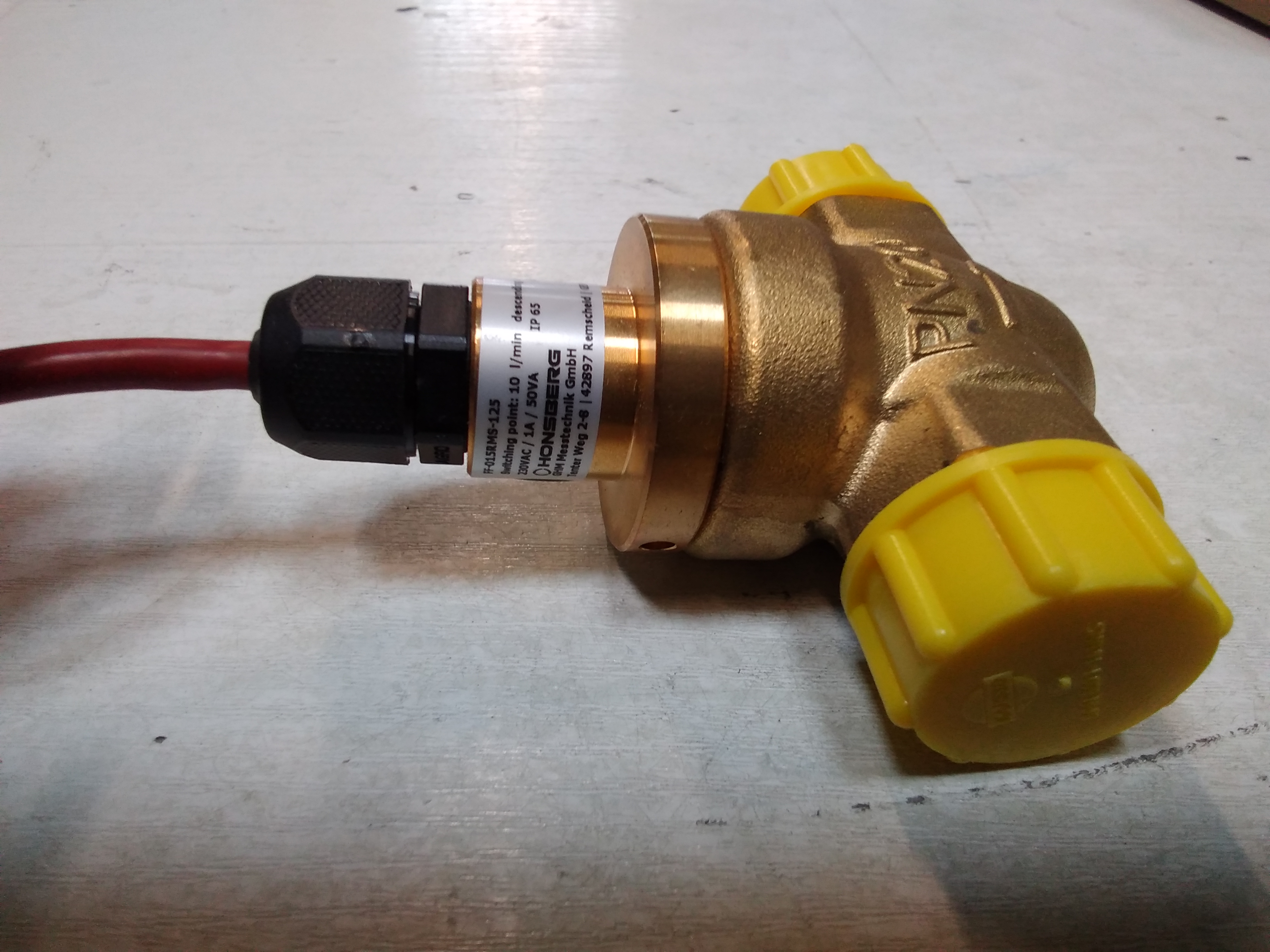

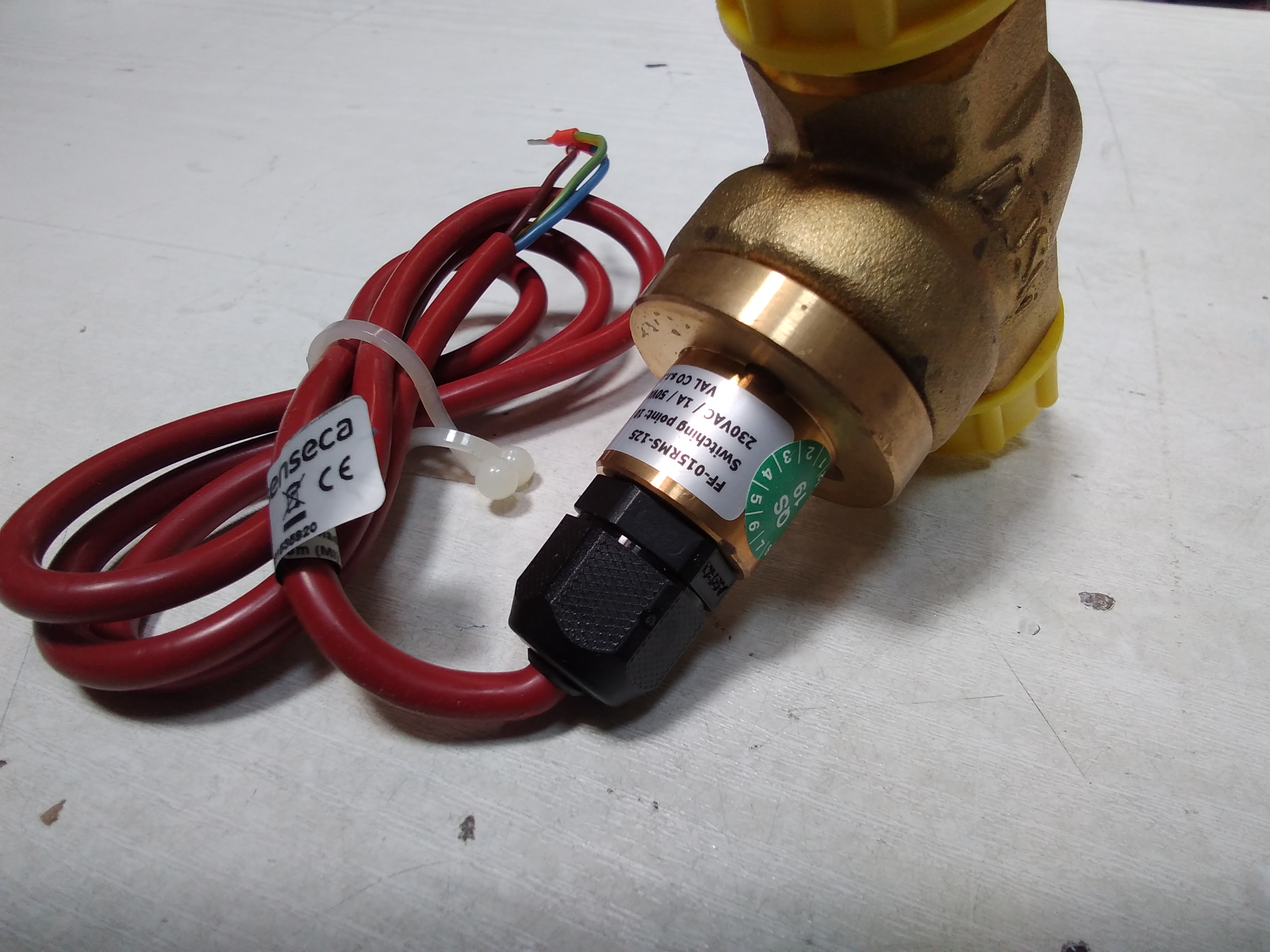

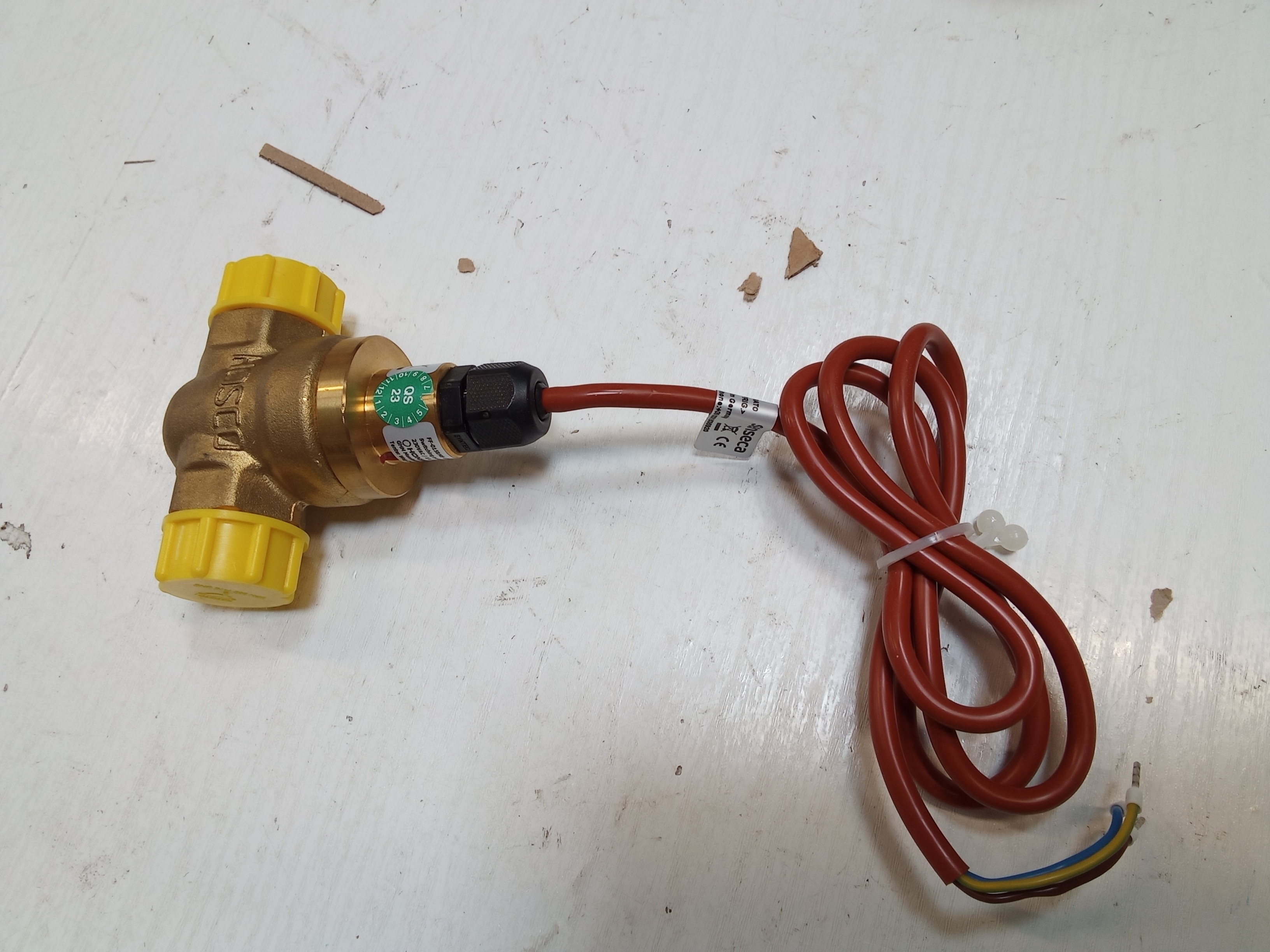

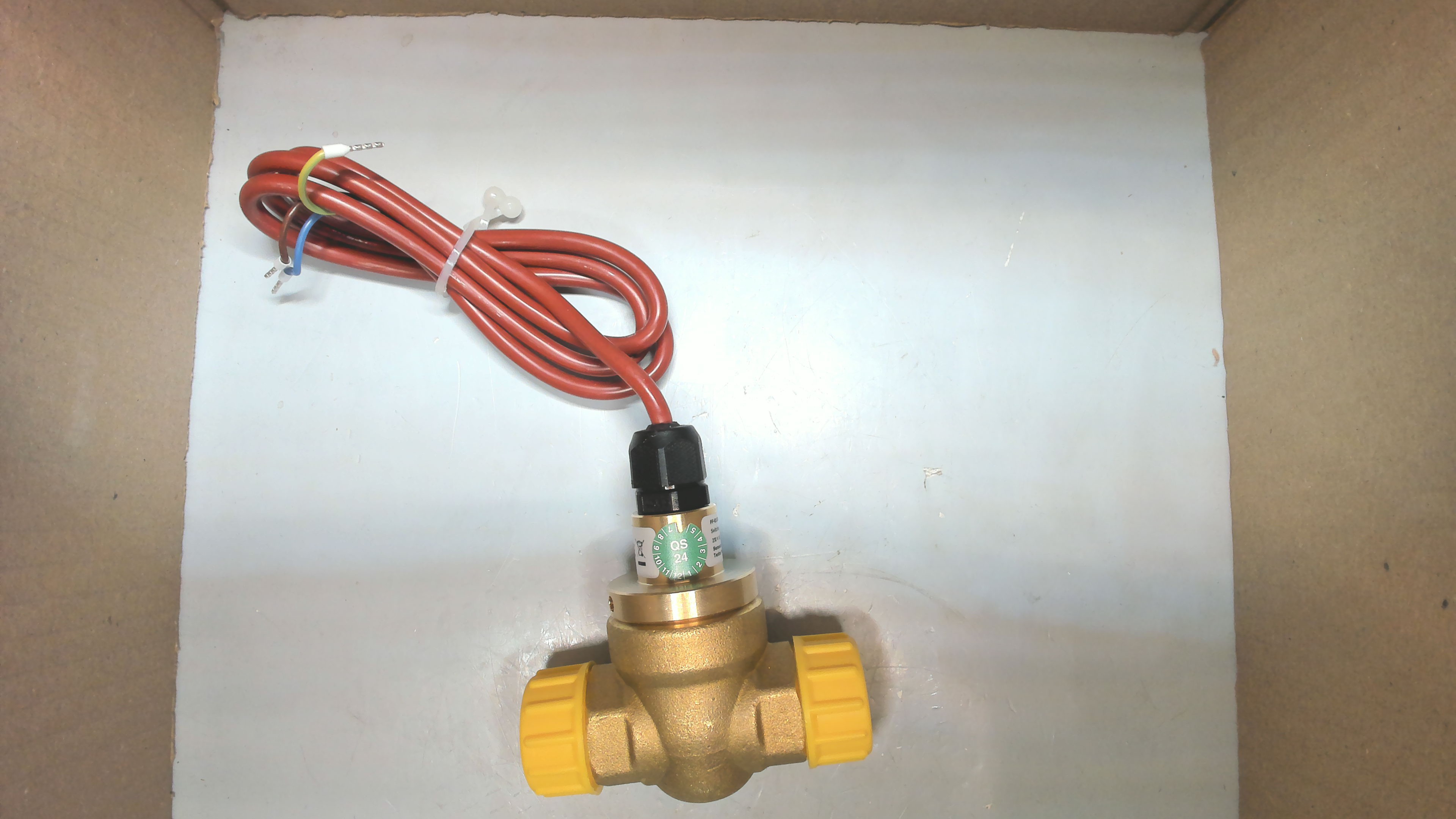

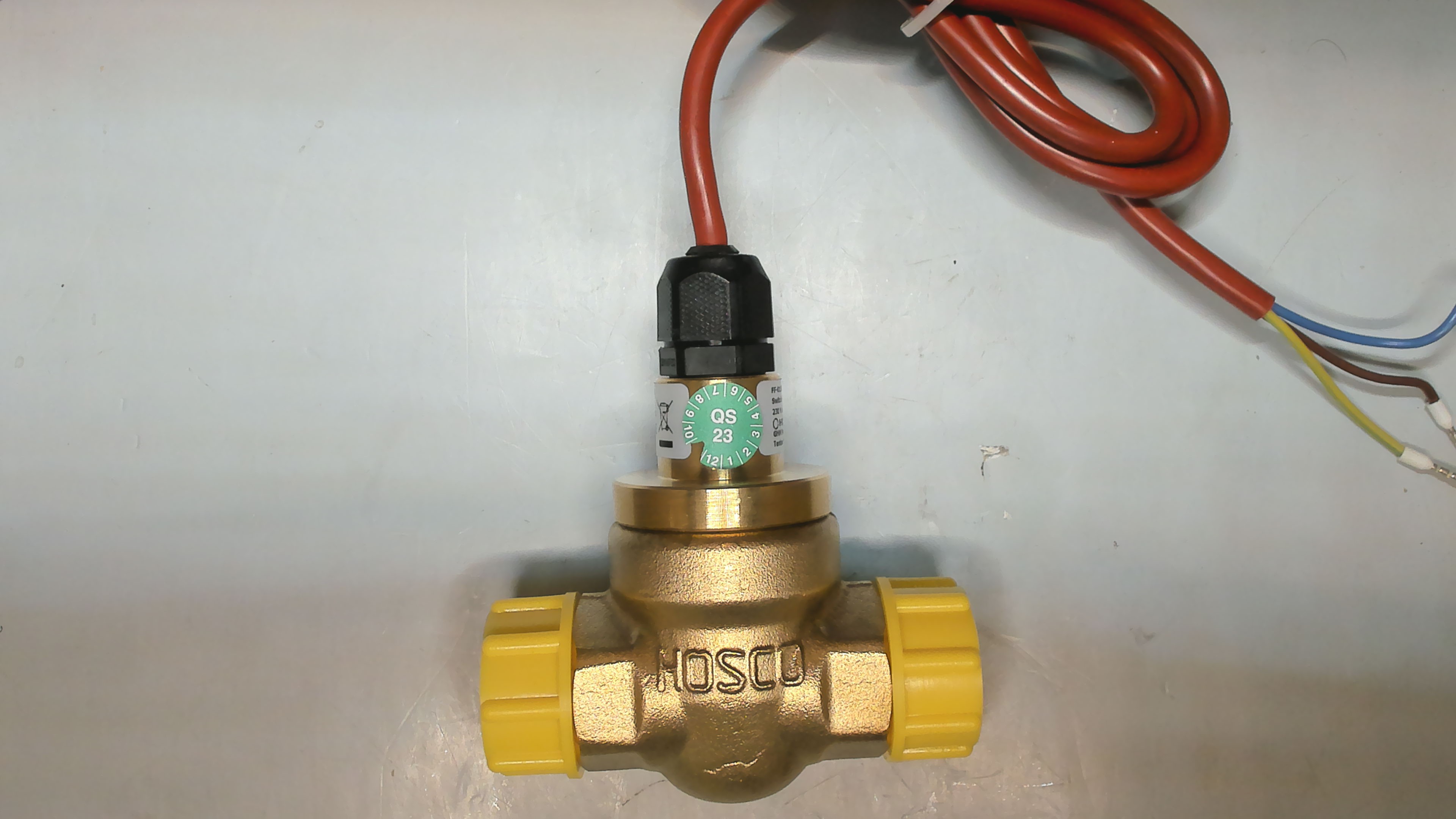

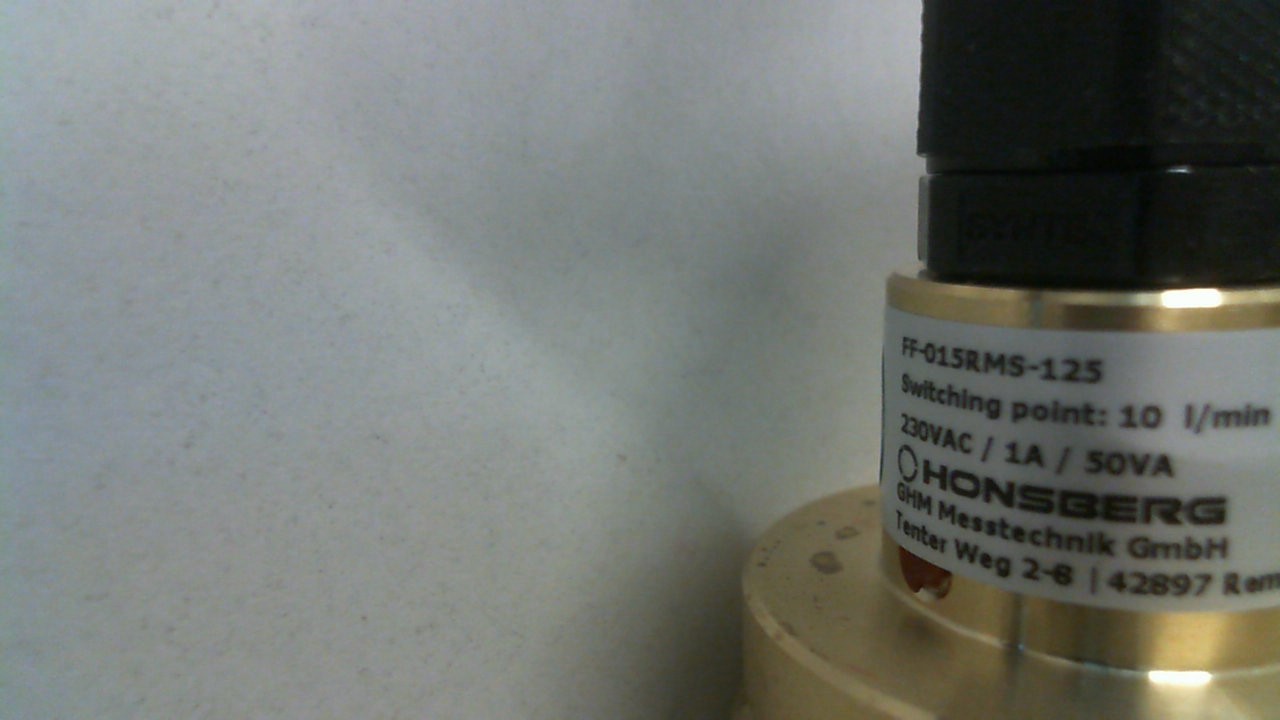

| BRAND | Honsberg |
| Product | FF-015RMS-125 |
| Description | Flow switch |
| Internal code | IMP1950804 |
| Weight | 0.661 |
| Custom code | 85365080 |
| Technical specification | Nominal diameter: DN 15 Connection: Male thread 1-14 UNS Housing: Hot-pressed brassed Pressure resistance: PN 200 Internal parts: Brass Seal: CR Media temperature: -20 ... +100 °C Environmental temperature: -20 ... +70 °C Switching point: 10 l/min H2O decreasing off Switching head: Brass Electrical connection: Pg 9 with 950 mm silicone cable and AD Electrical contact: Reed switch Max. contact load: 230 V AC 1 A 50 VA Connection diagram: Normally-open contact, connection diagram no. 0.212 Protection type: IP65 Flow direction: Horizontal from the left Model for order SENSECA Milan = FF-015.GR.010T.S-VARIO Item code for SENSECa Milan order 01.0001.0928 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Honsberg - FF-015RMS-125 Flow switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
